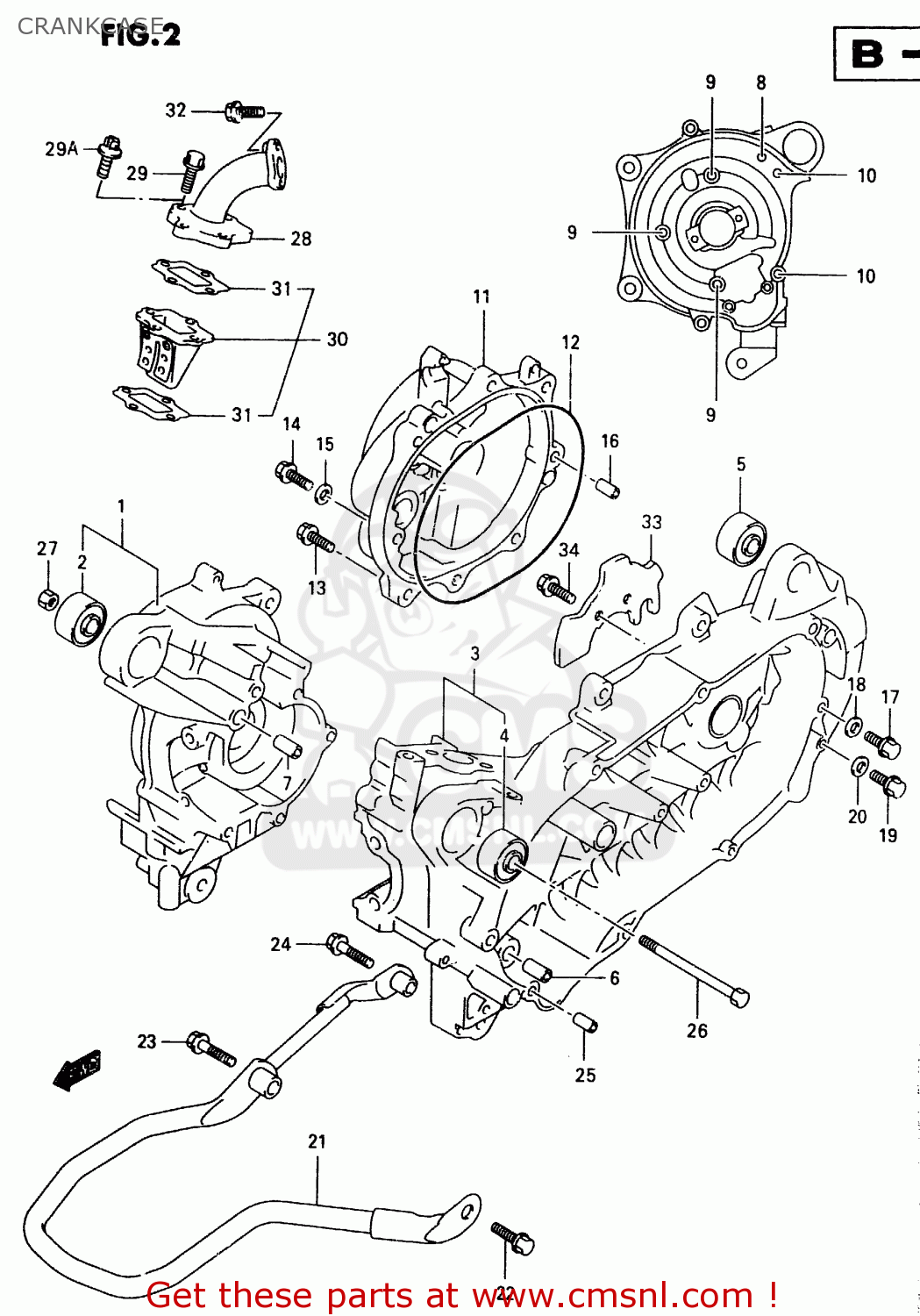

CRANKCASE

ref

part #

description

quantity

1

1131006840
ref: 1

CRANKCASE SET, RH

€ 112.50

2

0931910050
ref: 2

BUSH

€ 18.50

3

1132006841
ref: 3

CRANKCASE SET, LH

€ 280.50

4

0931910050
ref: 4

BUSH

€ 18.50

5

0931910032
ref: 5

BUSH(10.2X22.3X20)

€ 6.00

6

0930008016
ref: 6

BUSH(8X12X7)

€ 3.50

7

0920611018
ref: 7

PIN(8.4X11X28)

€ 4.00

8

0211206753
ref: 8

SCREW

€ 1.50

9

0211206453
ref: 9

SCREW

€ 1.50

10

0211206853
ref: 10

SCREW

€ 2.00

11

1143006840
ref: 11

GEAR BOX COVER SET

€ 114.00

12

0928000029
ref: 12

O RING(D:2.4,ID:161)

€ 5.00

13

0155008303
ref: 13

BOLT

€ 3.00

14

0910308153
ref: 14

BOLT(8X30)

€ 1.50

15

0916808020
ref: 15

GASKET(8.5X15X0.8) (NAS)

€ 5.50

16

0421111169
ref: 16

PIN

€ 2.00

17

0155008123
ref: 17

BOLT

€ 3.50

18

0916808008
ref: 18

GASKET 8.2X14X1 (NAS)

€ 1.00

19

0155008123
ref: 19

BOLT

€ 3.50

20

0916808008
ref: 20

GASKET 8.2X14X1 (NAS)

€ 1.00

21

1139006F01
ref: 21

GUARD,CRANKCASE

€ 95.50

22

0155008253
ref: 22

BOLT

€ 2.50

23

0155008353
ref: 23

BOLT

€ 3.50

24

0155008453
ref: 24

BOLT

€ 3.00

25

0421111169
ref: 25

PIN

€ 2.00

26

0910010267
ref: 26

BOLT(10X185)

€ 6.50

27

0831000103
ref: 27

NUT

€ 2.00

28-1

1311143E02
ref: 28-1

PIPE,INTAKE

€ 35.50

28-2

1311043E10
ref: 28-2
E22

PIPE,INTAKE

€ 32.50

29-1

0155006203
ref: 29-1

BOLT

€ 2.50

29-2

0155006203
ref: 29-2
E22

BOLT

€ 2.50

29A

0913906034
ref: 29A
E22

SCREW(6X20)

€ 2.50

30-1

1315043E00
ref: 30-1

VALVE ASSY,REED

€ 55.50

30-2

1315043E10
ref: 30-2
E34

VALVE ASSY,REED

€ 55.00

31

1315643E01
ref: 31

GASKET,REED VALVE

€ 4.50

32

0155006163
ref: 32

BOLT

€ 2.50

33

1132306F10
ref: 33

PLATE, GEAR BOX

€ 4.50

34

0211236123
ref: 34

BOLT

€ 2.00
