REAR WHEEL

TR50S 1998 (W) (E02 E04 E22 E26 E34 E53)

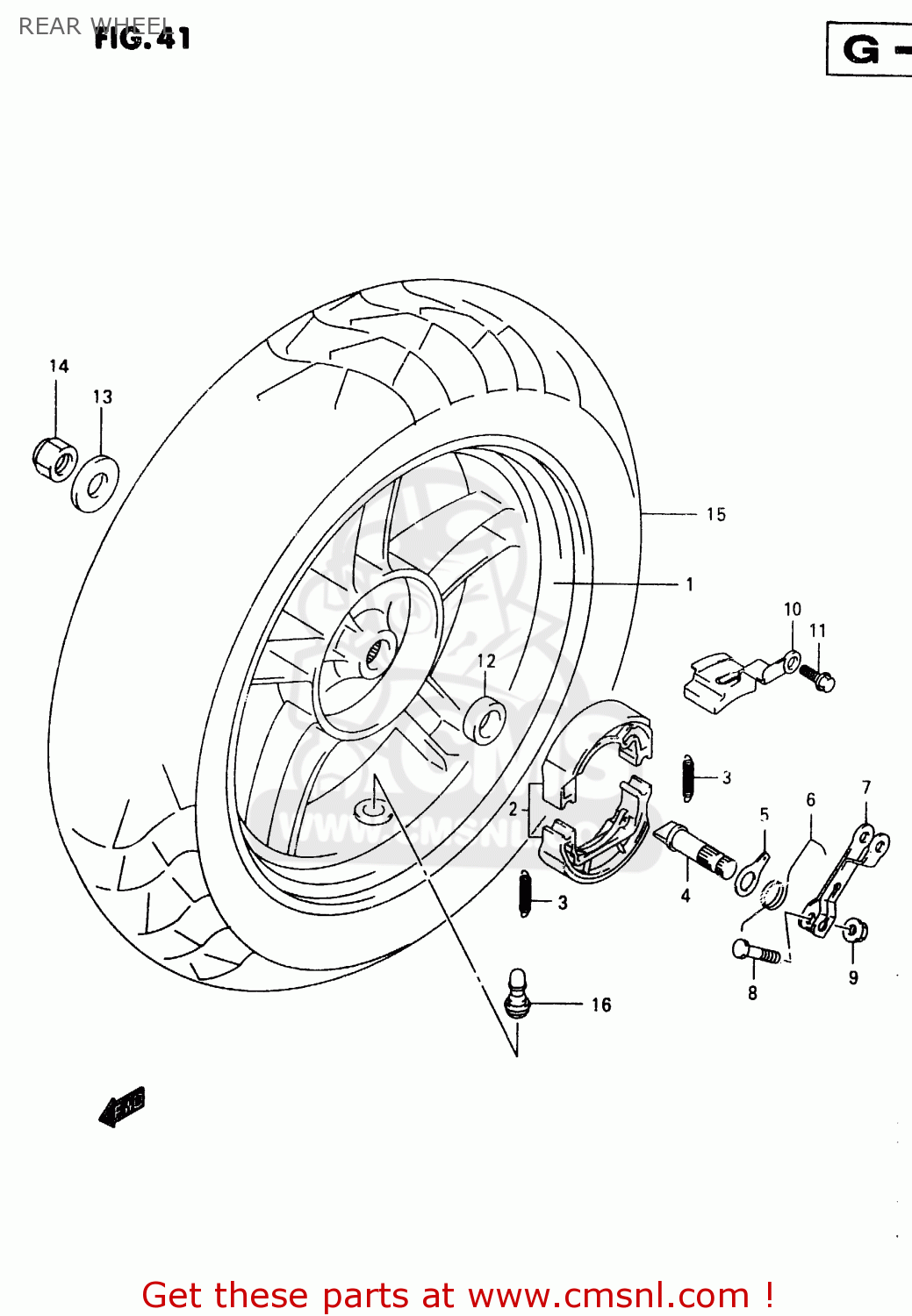

Rear wheel diagram TR50S 1998 (W) (E02 E04 E22 E26 E34 E53)

prices are in EUR

ref

part #

description

quantity

6415006F5012R
ref: 1

WHEEL,RR(12XMT3.50)

€ 352.50

6440041820
ref: 2

SHOE SET,BRAKE

€ 30.50

0944307044
ref: 3

SPRING

€ 3.00

6444106F00
ref: 4

CAM,RR BRAKE

€ 10.50

6449217B02
ref: 5

PLATE,BRAKE LINING INDICATOR

€ 1.50

6448406F00
ref: 6

SPRING,RR BRAKE CAM LEVER RTN

€ 3.50

6445106F00
ref: 7

LEVER,RR BRAKE CAM

€ 14.00

0910006139
ref: 8

BOLT(6X31)

€ 2.00

0831610063
ref: 9

NUT

€ 2.50

6449106F00
ref: 10

PROTECTOR,RR BRAKE CAM LVR

€ 4.50

0911106054
ref: 11

BOLT(6X14.6)

€ 1.50

6474106F00
ref: 12

SPACER,RR AXLE INNER

€ 6.50

0916016039
ref: 13

WASHER(16.5X36X4)

€ 3.00

0831921168
ref: 14

NUT 16MM

€ 5.00

6511006F10
ref: 15

TIRE, REAR (130/70-12) (BRIDGESTONE)

€ 93.00

4313024A11
ref: 16

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00
