HANDLEBAR
TR50S 1998 (W) (E02 E04 E22 E26 E34 E53)

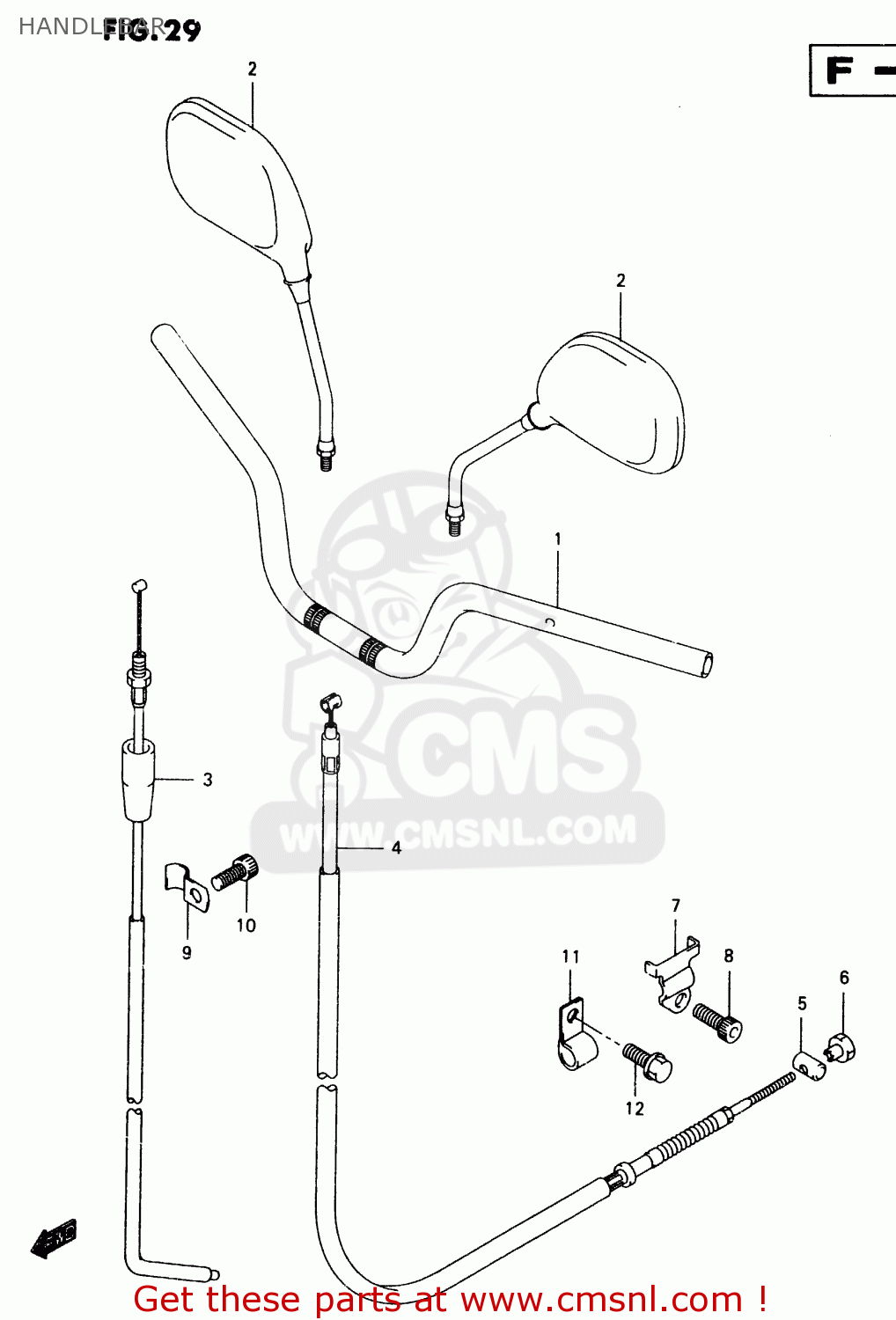

Handlebar diagram TR50S 1998 (W) (E02 E04 E22 E26 E34 E53)
HANDLEBAR TR50S 1998 (W) (E02 E04 E22 E26 E34 E53)
×
prices are in EUR
ref
part #
description
quantity
1
5611006F20291
ref: 1
HANDLEBAR(BLACK)
€ 74.50
2
5650009020
ref: 2
MIRROR ASSEMBLY,RIGHT
€ 344.50
3
5830006F00
ref: 3
CABLE ASSY, THROTTLE
€ 31.50
4
5851006F00
ref: 4
CABLE,RR BRAKE
€ 40.00
5
0920910001
ref: 5
PIN,10X19
€ 2.00
6
0915005101
ref: 6
NUT
€ 3.00
7
5857506F00
ref: 7
PLATE,RR BRAKE CABLE
€ 3.00
8
0713006123
ref: 8
BOLT,STRANGER
€ 2.50
9
0940309306
ref: 9
CLAMP
€ 2.00
10
0713006123
ref: 10
BOLT,STRANGER
€ 2.50
11
0940314204
ref: 11
CLAMP
€ 4.00
12
0155006123
ref: 12
BOLT
€ 2.50
