HEADLAMP (E2)

TR50S 1998 (W) (E02 E04 E22 E26 E34 E53)

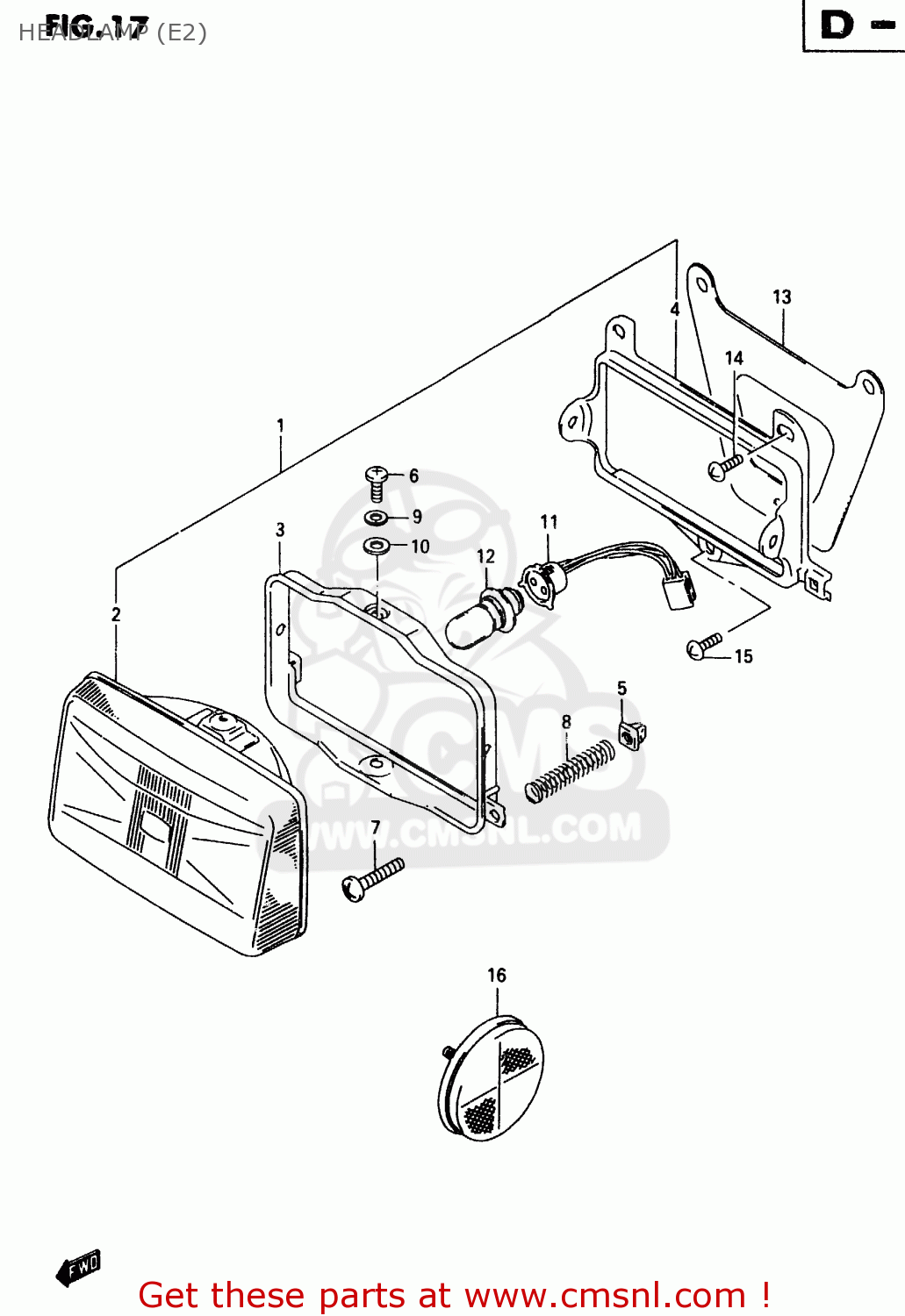

Headlamp (e2) diagram TR50S 1998 (W) (E02 E04 E22 E26 E34 E53)

prices are in EUR

ref

part #

description

quantity

3510006F20999
ref: 1

HEADLAMP ASSY

€ 0.00

3512136C20
ref: 2

UNIT

€ 194.50

3512736C20
ref: 3

RING,RETAINING

€ 18.50

3513036C20
ref: 4

RING,MOUNTING

€ 18.00

3513512E20
ref: 5

NUT,ADJUSTING

€ 2.50

3513616700
ref: 6

SCREW

€ 3.00

3515145900
ref: 7

SCREW

€ 4.00

3515410B00
ref: 8

SPRING

€ 1.50

0832101057
ref: 9

WASHER,LOCK

€ 2.00

0832201053
ref: 10

WASHER

€ 2.50

3517136650
ref: 11

SOCKET

€ 27.00

0947112017
ref: 12
PERCHASE LOCALLY

BULB (12V, 25/25W)

€ 0.00

3519536C20
ref: 13

PLATE,HEADLAMP BRACKET

€ 7.50

0214205163
ref: 14

SCREW

€ 2.50

0354106123
ref: 15

SCREW, HEADLAMP LOWER

€ 2.50

3595014A00
ref: 16

REFLECTOR,REFLEX FR

€ 15.00
