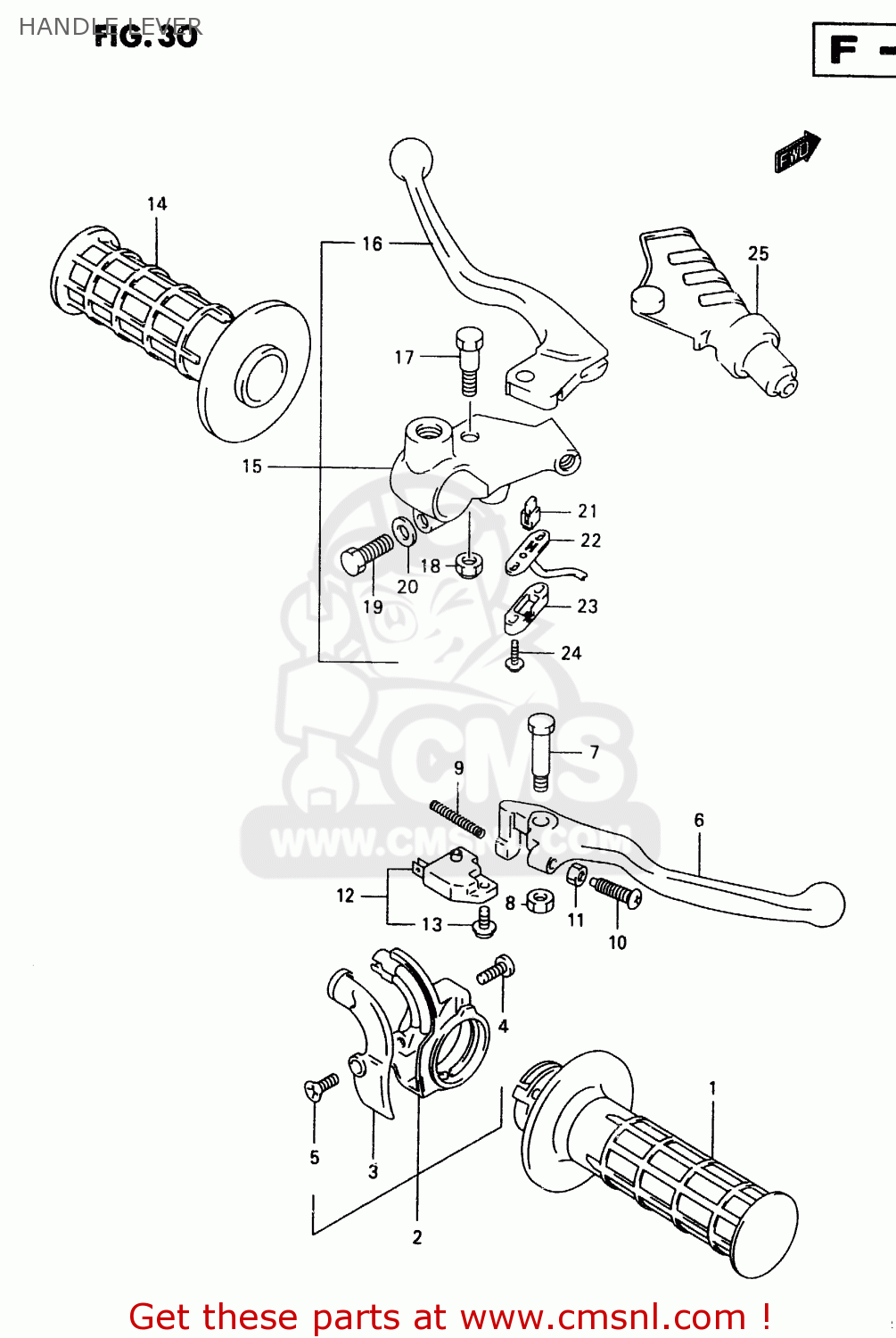

HANDLE LEVER

ref

part #

description

quantity

1

5711014D00
ref: 1

GRIP,THROTTLE

€ 25.50

2

5710028B00
ref: 2

CASE ASSEMBLY,THROTTLE

€ 34.00

3

5712913601
ref: 3

COVER,THROTTLE CASE

€ 7.00

4

0211205164
ref: 4

SCREW

€ 2.00

5

0212204103
ref: 5

SCREW,UPPER

€ 2.50

6

5742103D00
ref: 6

LEVER,BRAKE

€ 14.50

7

5743114500
ref: 7

BOLT,BRAKE LEVER

€ 4.00

8

0831921068
ref: 8

NUT 6MM

€ 2.00

9

5731814502
ref: 9

SPRING,RETURN

€ 3.00

10

5743114511
ref: 10

BOLT,ADJUST

€ 3.50

11

0831000053
ref: 11

NUT

€ 2.50

12

5746017C00
ref: 12

SWITCH ASSEMBLY,STOP

€ 32.50

13

5746517C00
ref: 13

SCREW

€ 1.50

14

5721127C00
ref: 14

GRIP,L

€ 11.00

15

5750006F00
ref: 15

LEVER ASSY,RR BRAKE

€ 56.50

16

5762015D11
ref: 16

LEVER,CLUTCH

€ 26.00

17

5743111013
ref: 17

BOLT,LEVER PIVOT

€ 6.00

18

0831921068
ref: 18

NUT 6MM

€ 2.00

19

0150006207
ref: 19

BOLT

€ 2.00

20

0832201067
ref: 20

WASHER

€ 2.00

21

5746518601
ref: 21

CONTACT,SWITCH

€ 4.50

22

5756006F00
ref: 22

WIRE,HARNESS

€ 10.00

23

5748133010
ref: 23

COVER,FR BK TERMINAL BASE

€ 19.50

24

5748449110
ref: 24

SCREW

€ 1.50

25

5766145C00
ref: 25

COVER,CLUTCH LEVER

€ 13.00
