FRAME
TS100 1978 (C) USA (E03)

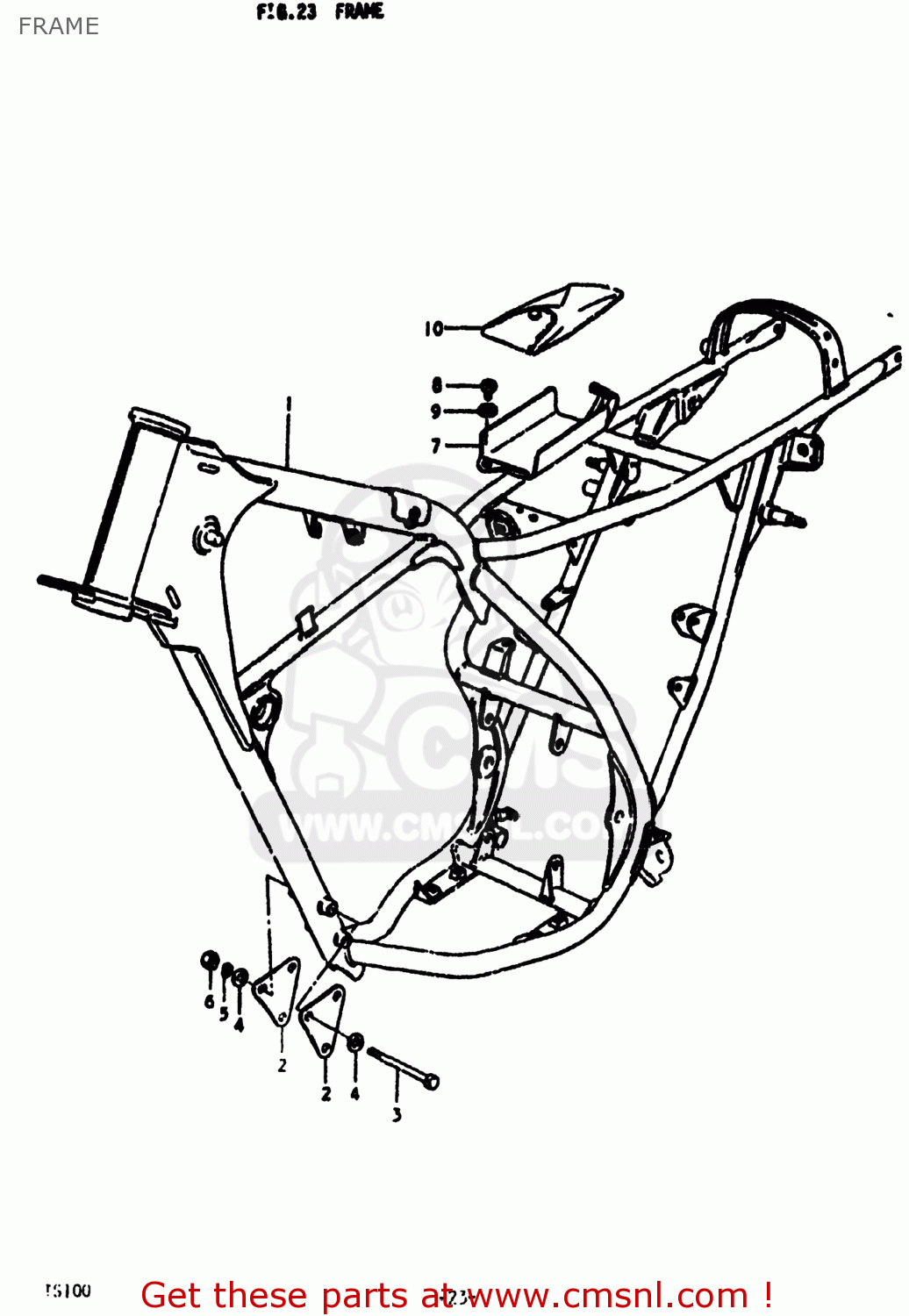

Frame diagram TS100 1978 (C) USA (E03)
FRAME TS100 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110048000019
ref: 1-1
41100-48021-019
FRAME
€ 0.00
1-2
4110048001019
ref: 1-2
41100-48021-019
FRAME
€ 0.00
2
4199148000
ref: 2
PLATE,ENG MTG
€ 0.00
3
0110708758
ref: 3
01500-0875B
BOLT,8X75
€ 3.00
4
0832211088
ref: 4
08322-01087
WASHER
€ 2.00
5
0832121088
ref: 5
08321-01087
LOCK WASHER
€ 2.00
6
0831012088
ref: 6
08310-00087
NUT
€ 2.00
7
4155029301
ref: 7
HOLDER,TOOL
€ 0.00
8
0211206108
ref: 8
02112-06107
SCREW
€ 1.50
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
