FRONT WHEEL
TS100 1978 (C) USA (E03)

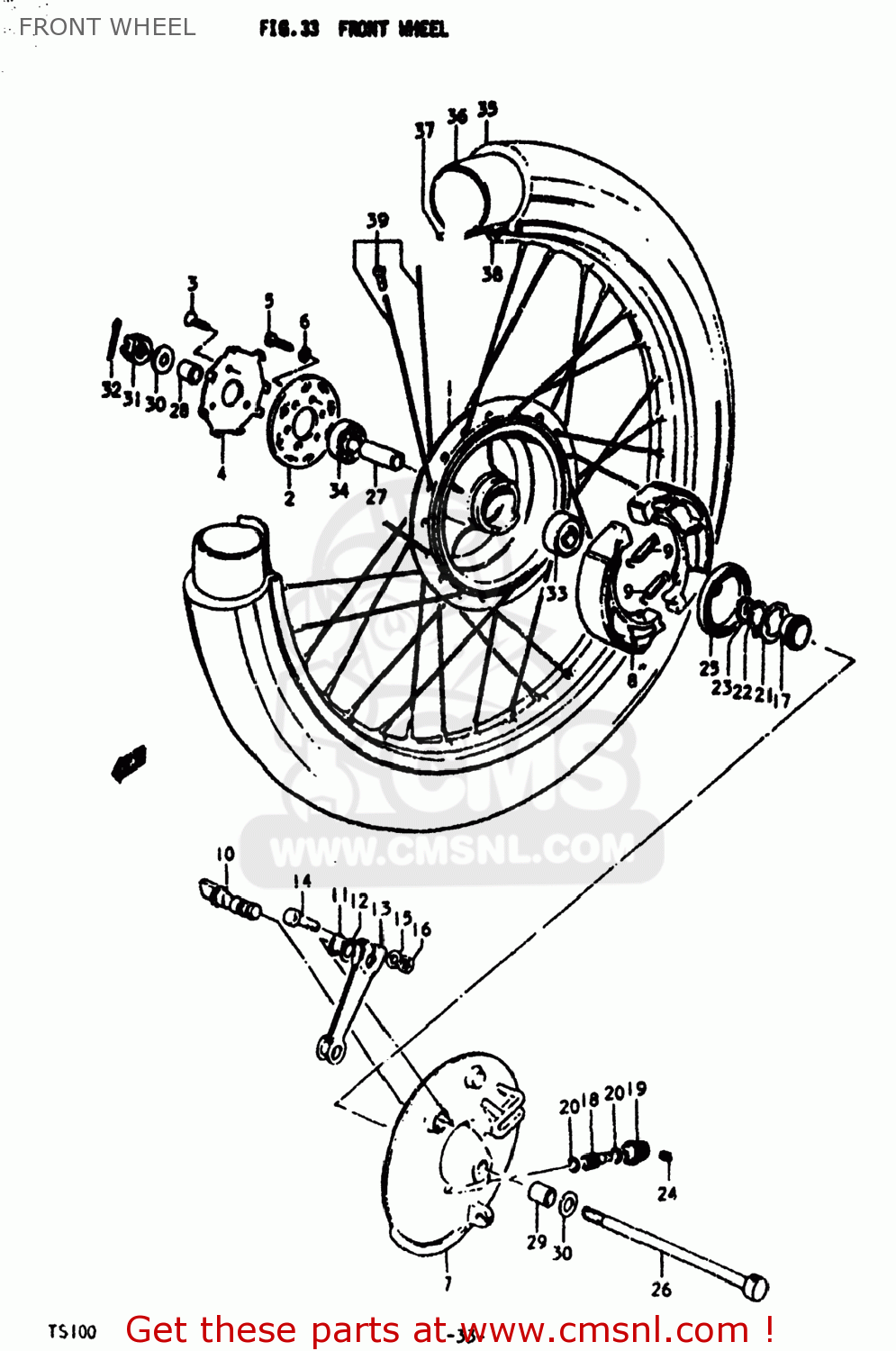

Front wheel diagram TS100 1978 (C) USA (E03)
FRONT WHEEL TS100 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411029300
ref: 1
HUB,FR WHEEL
€ 156.50
2
5411230500
ref: 2
FLANGE,FR HUB,R
€ 17.00
3
0212206168
ref: 3
02122-06167
SCREW
€ 2.00
4
5415130500
ref: 4
RETAINER,FR HUB BEARING,R
€ 7.00
5
0110706168
ref: 5
01500-06167
BOLT, UPPER
€ 3.00
6
0832121068
ref: 6
08321-01067
LOCK WASHER
€ 2.50
7
5421029300
ref: 7
PANEL,FRONT HUB
€ 0.00
8
5441007002
ref: 8
54401-07810
SHOE,BRAKE
€ 35.00
9
0944307001
ref: 9
09443-07025
SPRING(L:34)
€ 2.50
10-1
5444129300
ref: 10-1
54441-29305
CAM,FRONT BRAKE
€ 13.00
10-2
5444129301
ref: 10-2
54441-29305
CAM,FRONT BRAKE
€ 13.00
11
0928014003
ref: 11
09280-14011
O-RING (D:2.4 ID:13.8)
€ 3.50
12
0916014001
ref: 12
09160-14055
WASHER (14.5X22X1.6)
€ 2.50
13
5445129300
ref: 13
LEVER,FR BRAKE CAM
€ 11.50
14
0910006078
ref: 14
BOLT(6X33)
€ 2.50
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
0831011068
ref: 16
08310-00067
NUT
€ 2.50
17
5461128001
ref: 17
54611-28002
GEAR,SPEEDOMETER
€ 17.50
18
5461128000
ref: 18
54611-28002
GEAR,SPEEDOMETER
€ 17.50
19
5463201001
ref: 19
BUSH,METER GEAR OUTER
€ 9.00
20
0916005001
ref: 20
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
21
5466129300
ref: 21
DRIVER,SPEEDOMETER GEAR
€ 4.00
22
0916018002
ref: 22
WASHER(18.5X24X1)
€ 2.00
23
0833111189
ref: 23
CIRCLIP
€ 2.00
24
0913403101
ref: 24
09134-03101-A05
SCREW
€ 1.50
25
0928543001
ref: 25
09283-43004
OIL SEAL (43X58X7)
€ 10.00
26
6471143000
ref: 26
64711-43001
AXLE,REAR
€ 28.50
27
0918012041
ref: 27
09180-12144
SPACER (12.6X19X52)
€ 4.50
28
0918012076
ref: 28
09180-12141
SPACER (12.2X19X18.5)
€ 5.00
29
0918012063
ref: 29
SPACER(12X20X34.5)
€ 4.50
30
0832221128
ref: 30
08322-01127
WASHER
€ 2.00
31
0831431128
ref: 31
08314-3112A
NUT 12MM
€ 2.00
32
0411130308
ref: 32
04111-3030A
COTTER PIN
€ 1.50
33
0814362017
ref: 33
BEARING
€ 11.50
34
0812362017
ref: 34
08133-62017
BEARING, RH
€ 15.00
35
5510025600
ref: 35
TIRE 2.75-19 070-483MM
€ 134.00
36
5520029010
ref: 36
TUBE 2.75-19 070-483MM
€ 0.00
37
5526129010
ref: 37
55261-15010
PROTECTOR,WHEEL,INNER
€ 2.50
38
5531148120
ref: 38
RIM,FR WHEEL
€ 50.00
