TURN SIGNAL LAMP
TS100 1978 (C) USA (E03)

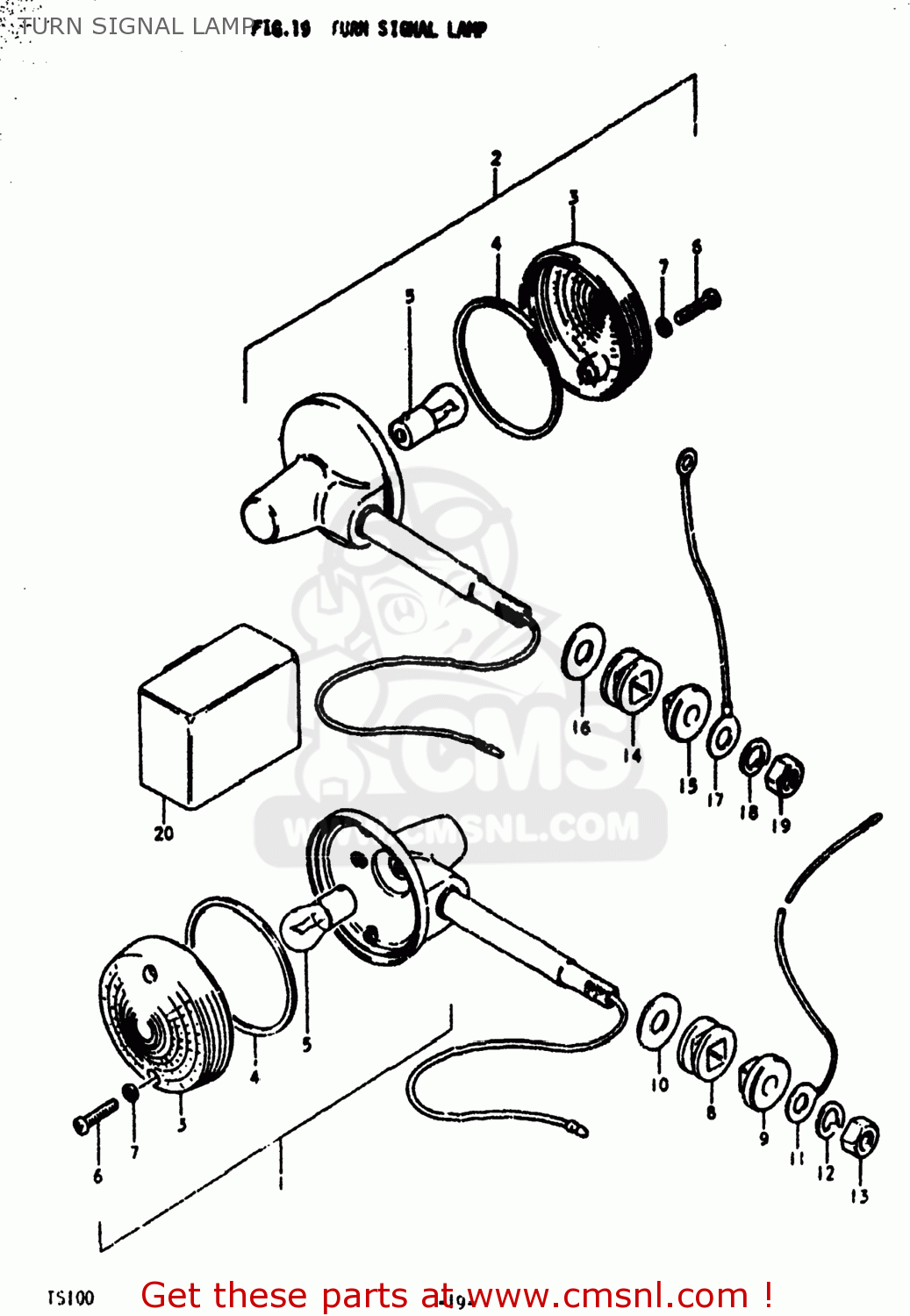

Turn signal lamp diagram TS100 1978 (C) USA (E03)
TURN SIGNAL LAMP TS100 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560130531
ref: 1
35601-39370-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 78.50
2
3560330531
ref: 2
35603-32620-999
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 66.50
3
3561228620
ref: 3
LENS
€ 10.50
4
3561328620
ref: 4
GASKET (NAS)
€ 7.00
5
0947106011
ref: 5
BULB(6V17W,STANLEY,A4513A)
€ 9.50
6
3562347610
ref: 6
03211-04207
SCREW
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
€ 2.00
8
3569032200
ref: 8
CUSHION
€ 38.50
9
3569532200
ref: 9
SPACER,RR TURNSIGNAL LAMP
€ 42.00
10
0916010006
ref: 10
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
11
3666033000
ref: 11
LEAD WIRE,EARTH
€ 5.00
12
0832121108
ref: 12
08321-01107
LOCK WASHER
€ 2.00
13
0831012108
ref: 13
08310-00107
NUT
€ 2.50
14
3569032200
ref: 14
CUSHION
€ 38.50
15
3569532200
ref: 15
SPACER,RR TURNSIGNAL LAMP
€ 42.00
16
0916010006
ref: 16
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
17
3685238000
ref: 17
36851-26410
LEAD WIRE
€ 9.50
18
0832121108
ref: 18
08321-01107
LOCK WASHER
€ 2.00
19
0831012108
ref: 19
08310-00107
NUT
€ 2.50
