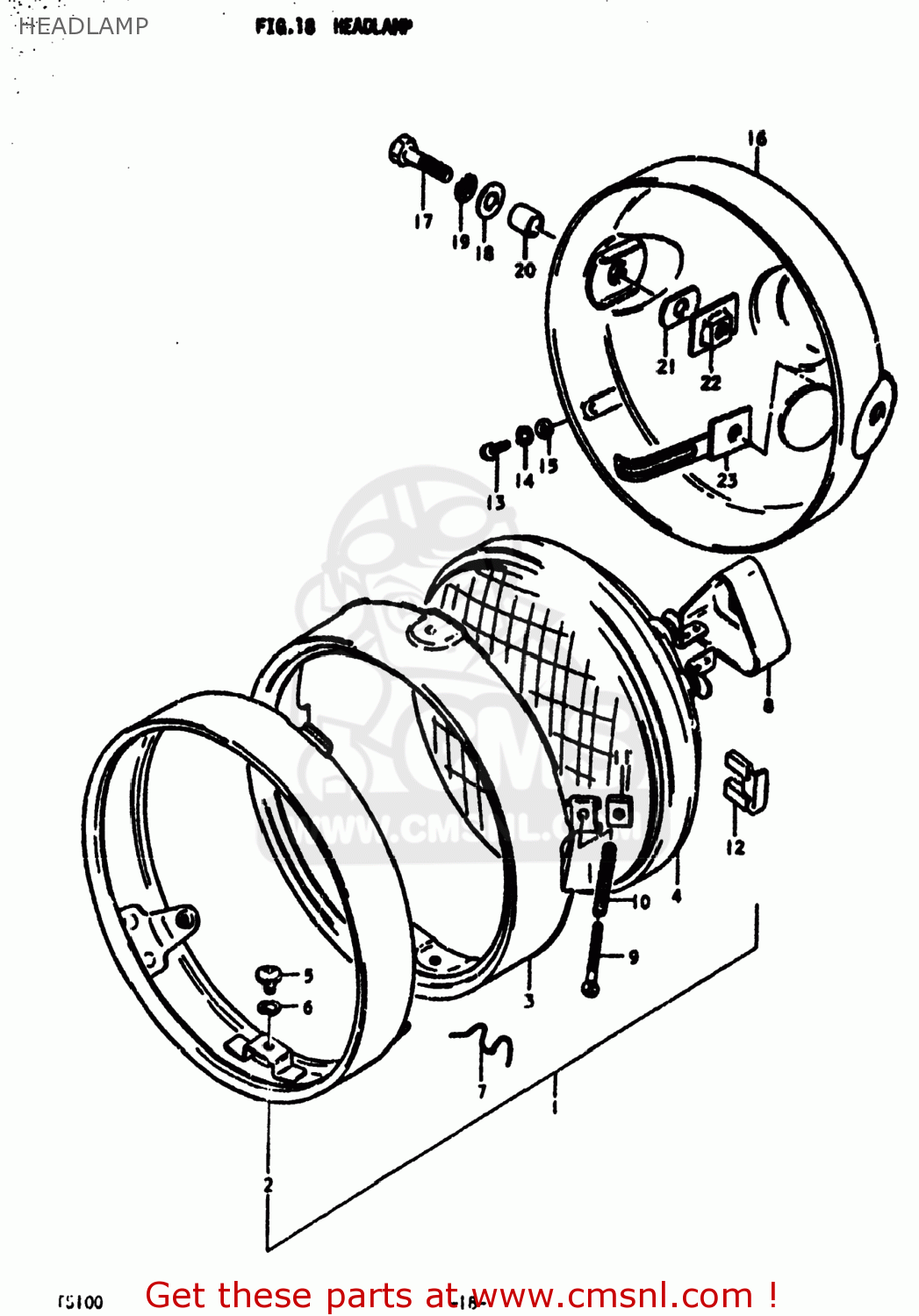

HEADLAMP

ref

part #

description

quantity

1

3510029611
ref: 1

LAMP ASSEMBLY,HEAD

€ 55.50

2-1

3511129610
ref: 2-1
35111-29611

RIM,HEADLAMP

€ 19.50

2-2

3511129611
ref: 2-2

RIM,HEADLAMP

€ 19.50

3

3512729610
ref: 3

RETAINER

€ 15.50

4

3512129610
ref: 4

LAMP UNIT

€ 26.50

5

3513629610
ref: 5

SCREW

€ 3.00

6

0832121058
ref: 6
08321-0105A

LOCK WASHER

€ 2.00

7

3512829611
ref: 7

SPRING,HEAD LAMP UNIT

€ 3.50

8

3517329610
ref: 8

COVER

€ 3.00

9

3515131610
ref: 9

SCREW

€ 4.00

10

3515429610
ref: 10
35154-33630

SPRING,HEADLAMP ADJUST

€ 2.50

11

3515215611
ref: 11

NUT

€ 3.50

12

3517429610
ref: 12

COVER, FITING

€ 0.00

13

0211204128
ref: 13
02112-0412A

SCREW

€ 1.50

14

0832121048
ref: 14
08321-0104A

LOCK WASHER

€ 2.00

15

0832221048
ref: 15
08322-01047

WASHER

€ 2.00

16

5181129302291
ref: 16

HOUSING,HEADLAMP

€ 35.00

17

0120408257
ref: 17

BOLT

€ 2.00

18

0832211088
ref: 18
08322-01087

WASHER

€ 2.00

19

0832121088
ref: 19
08321-01087

LOCK WASHER

€ 2.00

20

0918008030
ref: 20
09180-08187

SPACER (8.8X12X7)

€ 3.50

21

0932912002
ref: 21

CUSHION

€ 3.00

22

5186045000
ref: 22

PLATE,HEADLAMP HOUSING

€ 2.00

all assemblies
