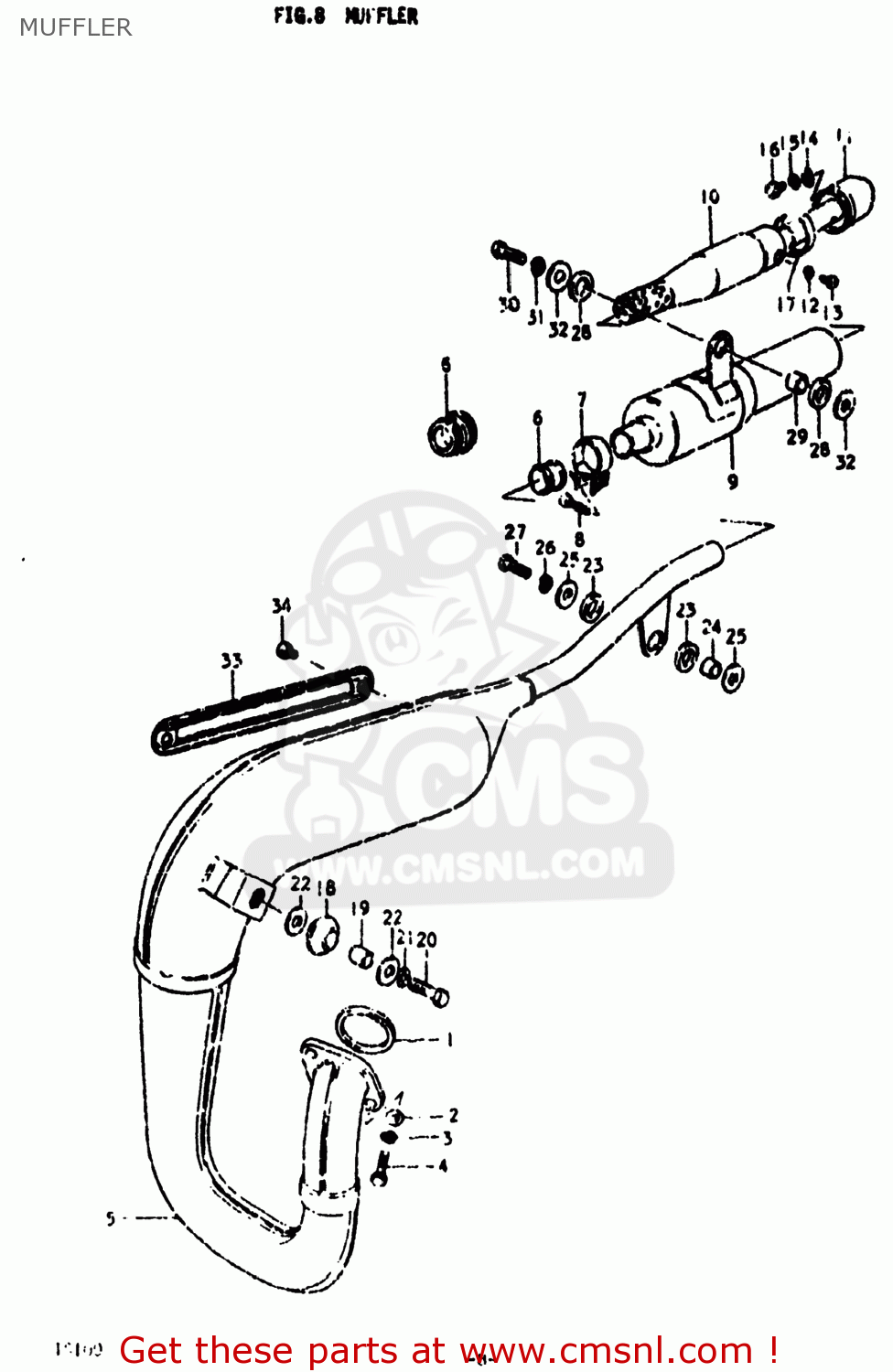

MUFFLER

ref

part #

description

quantity

1

1418111010
ref: 1
14181-01D00

GASKET,EXHAUST PIPE (NAS)

€ 8.00

2

0832221068
ref: 2
08322-01067

WASHER

€ 2.00

3

0832121068
ref: 3
08321-01067

LOCK WASHER

€ 2.50

4

0912806072
ref: 4

BOLT(6X30)

€ 3.00

5

1431048000
ref: 5
14310-48520-H01

BODY,MUFFLER

€ 520.50

6-1

1477148000
ref: 6-1
14771-48002

CONNECTOR,MUFFLER

€ 8.00

6-2

1477148001
ref: 6-2
14771-48002

CONNECTOR,MUFFLER

€ 8.00

7

0940231602
ref: 7

CLAMP

€ 3.00

8

0211206208
ref: 8
02112-06207

SCREW

€ 2.00

9

1430348601
ref: 9
14303-48601-H01

MUFFLER ASSEMBLY

€ 57.00

10

1481038601
ref: 10

ARRESTER,SPARK

€ 62.00

11

1485048000
ref: 11

TUBE,MUFFLER CLEAN OUT

€ 33.00

12

0832121058
ref: 12
08321-0105A

LOCK WASHER

€ 2.00

13

0211205088
ref: 13
02112-05087

SCREW

€ 2.00

14

0832221068
ref: 14
08322-01067

WASHER

€ 2.00

15

0832121068
ref: 15
08321-01067

LOCK WASHER

€ 2.50

16

0912806013
ref: 16

SCREW(6X8)

€ 1.50

17

1484338600
ref: 17

BAND,SPARK ARRESTER

€ 3.50

18

1477230500
ref: 18

DAMPER,MUFFLER,FR

€ 3.00

19

0918008048
ref: 19
09180-08302

SPACER (8X12X15)

€ 3.50

20

0110708358
ref: 20
01500-0835B

BOLT

€ 3.50

21

0832121088
ref: 21
08321-01087

LOCK WASHER

€ 2.00

22

0916008007
ref: 22
09160-08127

WASHER (8.7X22X2)

€ 2.00

23

0932014006
ref: 23

CUSHION

€ 3.50

24

0918008075
ref: 24
09180-08200

SPACER (8.6X13.8X9.8)

€ 3.00

25

0916008005
ref: 25
09160-08134

WASHER

€ 2.50

26

0832121088
ref: 26
08321-01087

LOCK WASHER

€ 2.00

27

0110708258
ref: 27
01500-08257

BOLT

€ 2.50

28

0932014006
ref: 28

CUSHION

€ 3.50

29

0918008050
ref: 29
09180-08199

SPACER (8.6X13.8X9)

€ 2.50

30

0110708258
ref: 30
01500-08257

BOLT

€ 2.50

31

0832121088
ref: 31
08321-01087

LOCK WASHER

€ 2.00

32

0916008005
ref: 32
09160-08134

WASHER

€ 2.50

33

1478148000
ref: 33

COVER,MUFFLER

€ 22.50
