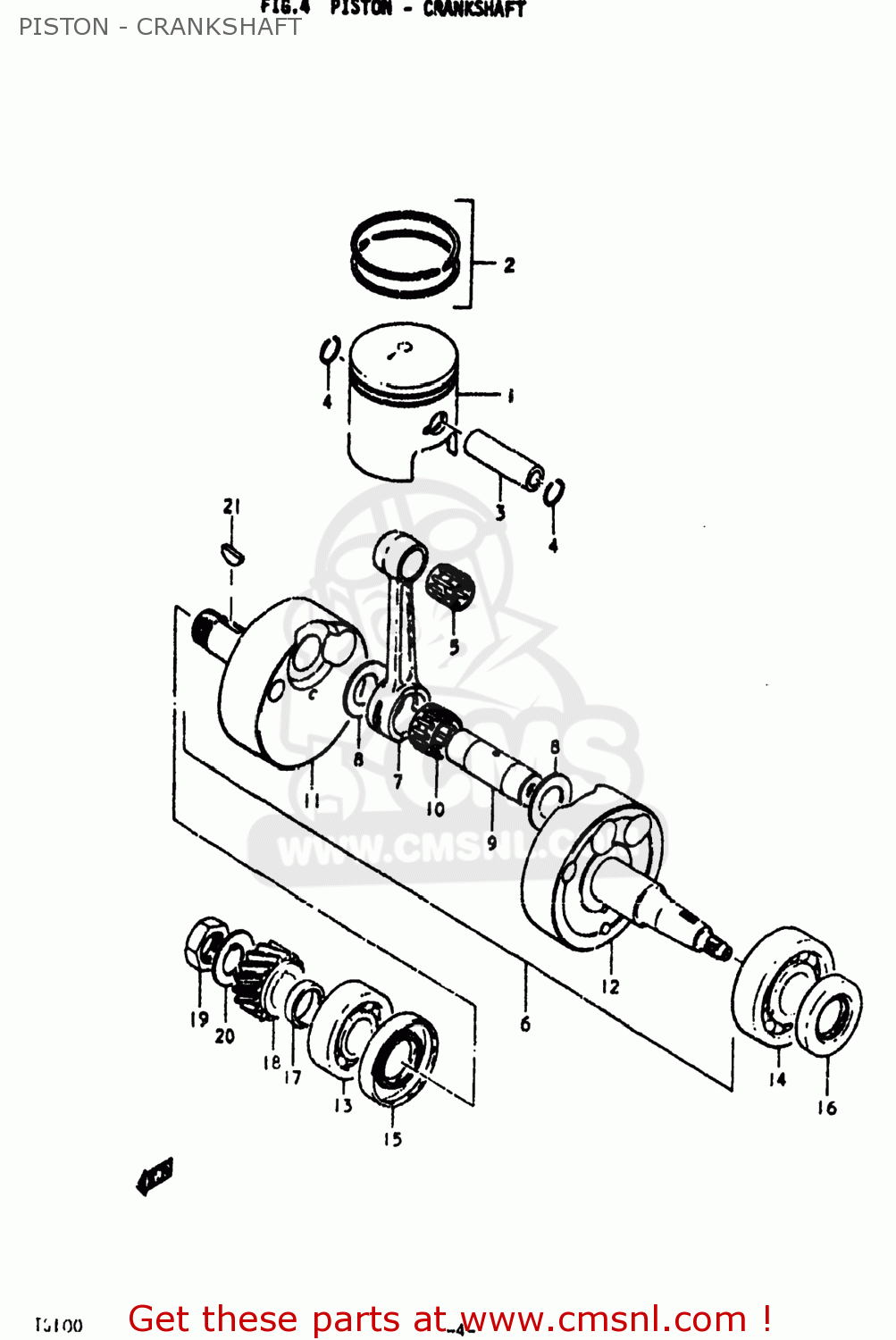

PISTON - CRANKSHAFT - TS100 1979 (N) USA (E03)

ref

part #

description

quantity

1-1

1211048100
ref: 1-1
12110-48101

PISTON

€ 43.50

1-2

1211048100050
ref: 1-2
12100-48100-050

PISTON (OS:0.5)

€ 78.50

1-3

1211048100100
ref: 1-3
12100-48100-100

PISTON (OS:1.0)

€ 58.50

2-1

1214028630
ref: 2-1

RING SET,PISTON

€ 52.00

2-2

1214028630050
ref: 2-2

RING SET,PISTON(OS:0.50)

€ 50.50

2-3

1214028630100
ref: 2-3
12140-40B30-100

RING SET,PISTON (OS:1.0)

€ 52.00

3

1215107000
ref: 3
12151-23400

PIN,PISTON 14MM

€ 10.00

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

0926314006
ref: 5
09263-14022

BEARING

€ 10.00

6-1

1220048000
ref: 6-1
12200-48002

CRANKSHAFT ASSEMBLY

€ 598.00

6-2

1220048001
ref: 6-2
12200-48002

CRANKSHAFT ASSEMBLY

€ 598.00

7

1216112002
ref: 7
12161-39300

CONNECTING ROD

€ 54.50

8

0916019001
ref: 8

WASHER(19X32X1)

€ 3.50

9

1221148000
ref: 9
12211-48001

PIN,CRANK

€ 30.00

10-1

0926319007
ref: 10-1
09263-19009

BEARING

€ 15.00

10-2

0926319009
ref: 10-2

BEARING(19X25X16)

€ 15.00

11

1222148000
ref: 11

CRANKSHAFT,R

€ 101.00

12-1

1226148000
ref: 12-1
12261-48002

CRANKSHAFT,LEFT

€ 88.00

12-2

1226148001
ref: 12-2
12261-48002

CRANKSHAFT,LEFT

€ 88.00

13

0926220009
ref: 13
09262-20073

BEARING

€ 19.00

14

0926225049
ref: 14

BEARING(25X62X17)

€ 28.50

15

0928326007
ref: 15

SEAL,OIL(26X52X8)

€ 7.50

16

0928325037
ref: 16
09283-25066

OIL SEAL

€ 7.00

17

0918020037
ref: 17

SPACER(20X28X7)

€ 7.50

18

2111128000
ref: 18
21111-28001

GEAR,PRIMARY DRIVE

€ 42.00

19

0914018002
ref: 19

NUT

€ 3.50

20

0916618001
ref: 20

WASHER

€ 3.00
