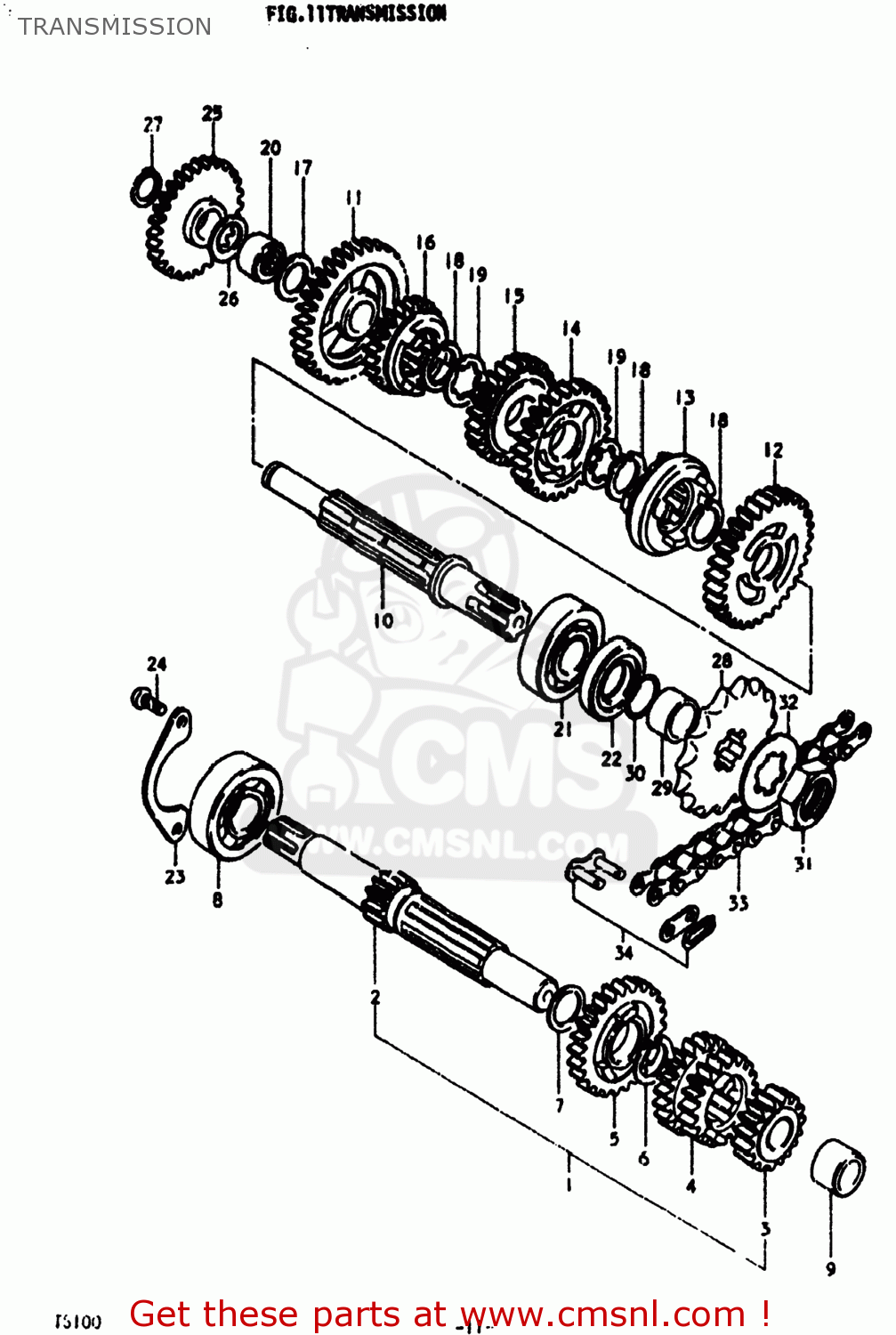

TRANSMISSION

ref

part #

description

quantity

1

2412048001
ref: 1

SHAFT ASSEMBLY,COUNTER

€ 0.00

2

2412148001
ref: 2
24121-48002

SHAFT,COUNTER

€ 71.50

3

2422148000
ref: 3
24221-48001

GEAR,SECOND DRIVE

€ 31.50

4

2423148000
ref: 4
24231-48001

GEAR,THIRD/FOURTH DRIVE

€ 71.50

5

2425148001
ref: 5
24251-48003

GEAR,FIFTH DRIVE

€ 0.00

6

0938020007
ref: 6

CIRCLIP

€ 3.00

7

0821120261
ref: 7
09181-20139

WASHER

€ 2.50

8

0811362040
ref: 8
09262-20069

Bearing

€ 28.00

9

0930015009
ref: 9

BUSH(15X22X15)

€ 10.00

10

2413148000
ref: 10
24131-48701

SHAFT,GEAR SHIFT

€ 104.50

11

2431048001
ref: 11

GEAR,1ST DRIVEN

€ 54.50

12-1

2432148001
ref: 12-1
24321-48003

GEAR,SECOND DRIVEN

€ 48.00

12-2

2432148002
ref: 12-2
24321-48003

GEAR,SECOND DRIVEN

€ 48.00

13

2442148000
ref: 13
24421-48001

WHEEL,SECOND DRIVEN GEAR

€ 0.00

14

2433148000
ref: 14
24331-48001

GEAR,THIRD DRIVEN

€ 50.00

15

2434148000
ref: 15
24341-48001

GEAR,FOURTH DRIVEN

€ 47.50

16

2435146000
ref: 16

GEAR,5TH DRIVEN(NT:24)

€ 40.00

17

0821115261
ref: 17
09181-15195

WASHER,THRUST

€ 2.50

18

0938020007
ref: 18

CIRCLIP

€ 3.00

19

0916720011
ref: 19

WASHER,LOCK

€ 2.50

20

0926315012
ref: 20

BEARING(15X22X12)

€ 11.50

21

0811362040
ref: 21
09262-20069

Bearing

€ 28.00

22

0928325035
ref: 22

SEAL,OIL(25X40X7)

€ 6.50

23

2474148000
ref: 23

RETAINER,CNTR SHAFT BEARING

€ 5.50

24

0211206128
ref: 24
02112-06127

SCREW 6X12

€ 2.00

25

2626028002
ref: 25
26260-28003

GEAR,KICK STARTER IDLE

€ 38.00

26

0821115261
ref: 26
09181-15195

WASHER,THRUST

€ 2.50

27

0833131159
ref: 27
08331-3115A

CIRCLIP,15MM

€ 2.00

28

2751148100
ref: 28
27511-13700

SPROCKET,ENGINE

€ 33.00

29

0918020039
ref: 29

SPACER(20X25X12.5)

€ 9.50

30

0928020001
ref: 30

O RING(D:1,ID:19.5)

€ 2.00

31

0914020001
ref: 31

NUT

€ 3.50

32

0916720006
ref: 32
09167-20009

WASHER,LOCK

€ 3.00

33

2760036011
ref: 33
27600-29B20-124

CHAIN ASSEMBLY,DRIVE

€ 128.00
