STAND - FOOTREST

TS100 1979 (N) USA (E03)

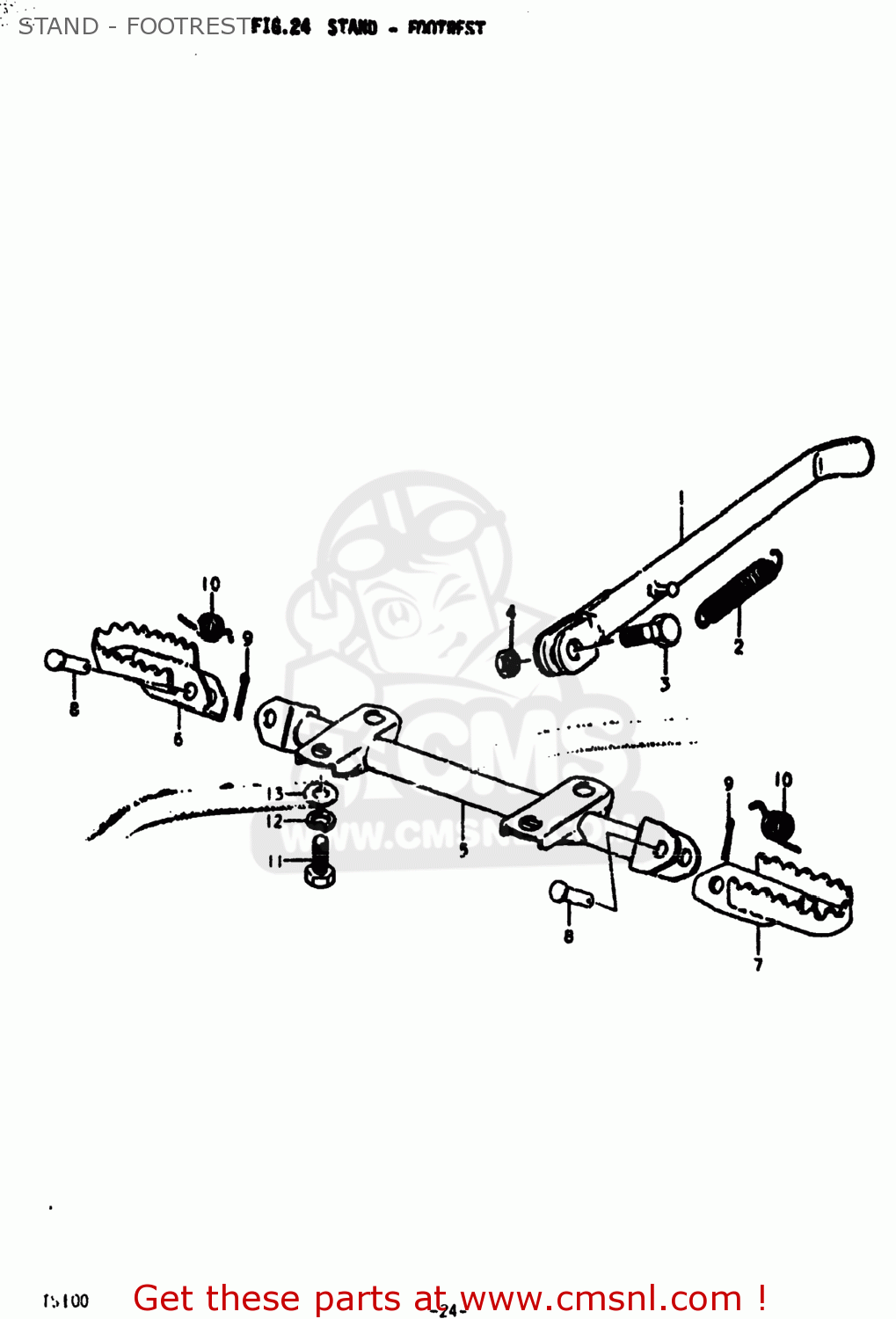

Stand - footrest diagram TS100 1979 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

4231048100
ref: 1
42310-48410

STAND,SIDE

€ 34.00

0944314005
ref: 2
09443-14017

SPRING

€ 6.50

0910010067
ref: 3

BOLT(10X30)

€ 3.50

0831022108
ref: 4
08310-00107

NUT

€ 2.50

4351048001
ref: 5

BAR,FR FOOTREST

€ 32.50

4355029300
ref: 6

FOOTREST,FR,R

€ 11.50

4356029300
ref: 7

FOOTREST,FR,L

€ 11.50

0920010008
ref: 8

PIN

€ 3.00

0411120208
ref: 9
04111-2020A

PIN 20X20

€ 1.50

0944815004
ref: 10

SPRING

€ 2.50

0110708208
ref: 11
01500-08207

BOLT

€ 3.00

0832121088
ref: 12
08321-01087

LOCK WASHER

€ 2.00
