CARBURETOR (TS125C)
TS125 1979 (N) USA (E03)

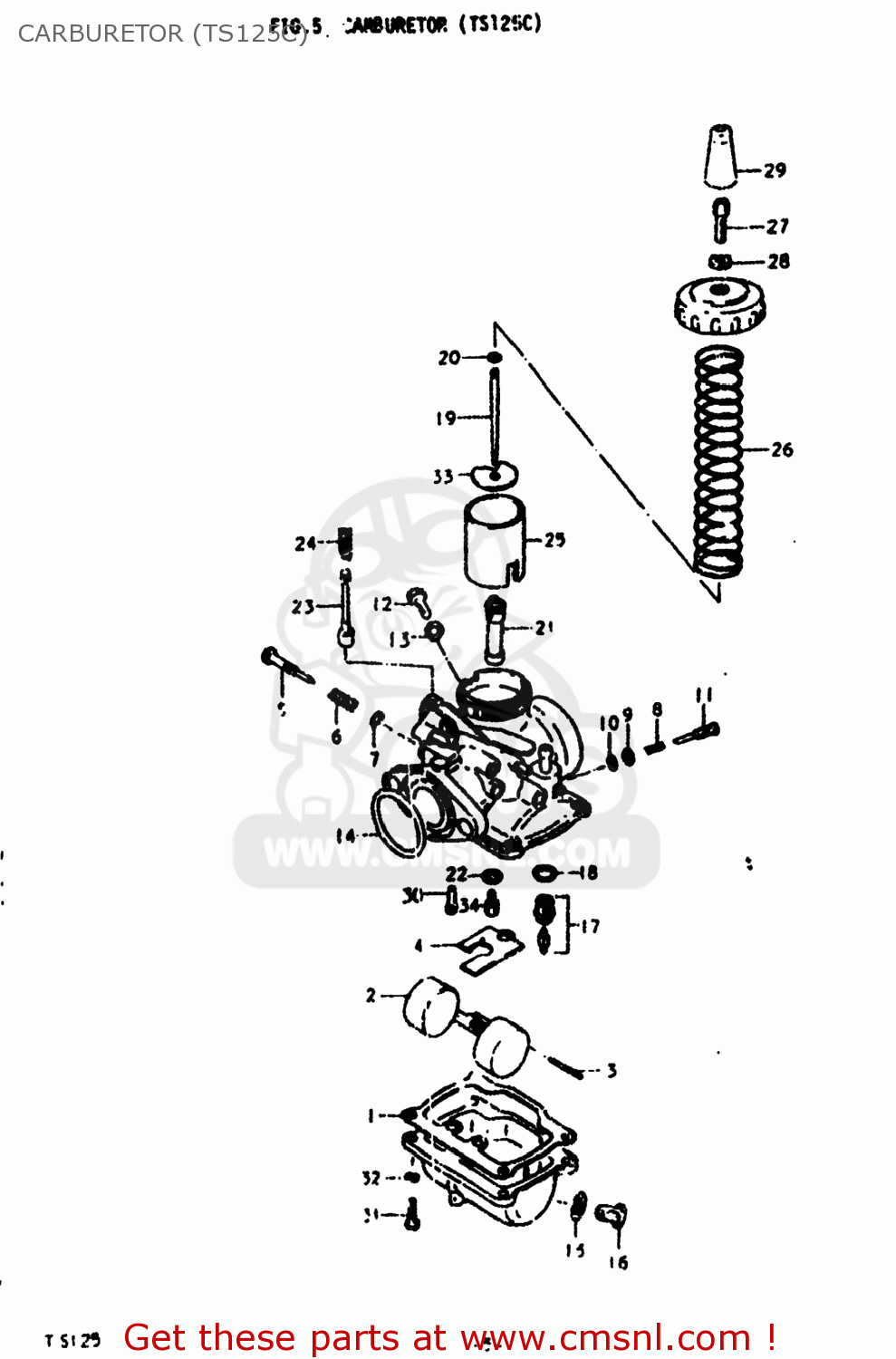

Carburetor (ts125c) diagram TS125 1979 (N) USA (E03)
CARBURETOR (TS125C) TS125 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
1320048011
ref: 0-1
13200-48120
CARBURETOR ASSEMBLY
€ 177.50
0-2
1320048111
ref: 0-2
13200-48120
CARBURETOR ASSEMBLY
€ 177.50
1
1325111010
ref: 1
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
2
1325211010
ref: 2
FLOAT
€ 20.50
3
1325401010
ref: 3
PIN,FLOAT
€ 3.00
4
1325997010
ref: 4
PLATE
€ 3.50
5
1326741640
ref: 5
SCREW,THROTTLE STOP
€ 15.00
6
1326848110
ref: 6
SPRING,PILOT
€ 11.50
7
1329430010
ref: 7
13278-02340
O-RING
€ 1.50
8
1327196110
ref: 8
SPRING
€ 3.50
9
1329141640
ref: 9
13606-18E00
WASHER,PILOT AIR SCREW
€ 3.50
10
1327845010
ref: 10
O RING
€ 5.00
11
1326941640
ref: 11
SCREW,PILOT AIR
€ 11.50
12
1366418654
ref: 12
BOLT
€ 10.50
13
1366331010
ref: 13
GASKET,THRO VALVE INSPECTION (NAS)
€ 3.50
14
1329528010
ref: 14
O RING
€ 3.50
15
1324905010
ref: 15
GASKET,DRAIN,PLUG (NAS)
€ 1.50
16
1324705010
ref: 16
PLUG
€ 6.00
17
1337028010
ref: 17
13370-48051
VALVE ASSEMBLY,NEEDLE
€ 59.50
18
1339258600
ref: 18
GASKET,VALVE SEAT (NAS)
€ 2.00
19
1338333010
ref: 19
NEEDLE,JET
€ 18.00
20
1339410010
ref: 20
CLIP
€ 4.50
21
0949400207
ref: 21
JET,NEEDLE
€ 16.00
22
1338203110
ref: 22
WASHER
€ 2.50
23
1341115010
ref: 23
VALVE,STARTER
€ 19.00
24
1341718630
ref: 24
SPRING
€ 6.00
25
1355148110
ref: 25
VALVE,THROTTLE
€ 39.50
26
1357397010
ref: 26
13573-30900
SPRING, THROTTLE VALVE
€ 6.00
27
1357748110
ref: 27
ADJUSTER,CABLE
€ 8.00
28
1366116600
ref: 28
NUT
€ 5.00
29
1368116601
ref: 29
CAP
€ 7.00
30
0949230003
ref: 30
09492-30006
JET
€ 8.50
31
0211204168
ref: 31
02112-0416A
SCREW
€ 1.00
32
0832121048
ref: 32
08321-0104A
LOCK WASHER
€ 2.00
33
1358128010
ref: 33
SEAT,THROTTLE VALVE SPRING
€ 6.50
34-1
0949185002
ref: 34-1
JET,MAIN 85
€ 6.00
34-2
0949190002
ref: 34-2
JET,MAIN 90
€ 9.50
34-3
0949175002
ref: 34-3
JET,MAIN (75)
€ 7.00
34-4
0949180003
ref: 34-4
JET,MAIN(83.8)
€ 8.00
34-5
0949185002
ref: 34-5
JET,MAIN 85
€ 6.00
34-6
0949195002
ref: 34-6
09491-95006
JET MAIN (95)
€ 8.00
34-7
0949120002
ref: 34-7
JET,MAIN(100)
€ 7.00
34-8
0949122003
ref: 34-8
JET,MAIN 110
€ 7.50
