CRANKCASE
TS125 1979 (N) USA (E03)

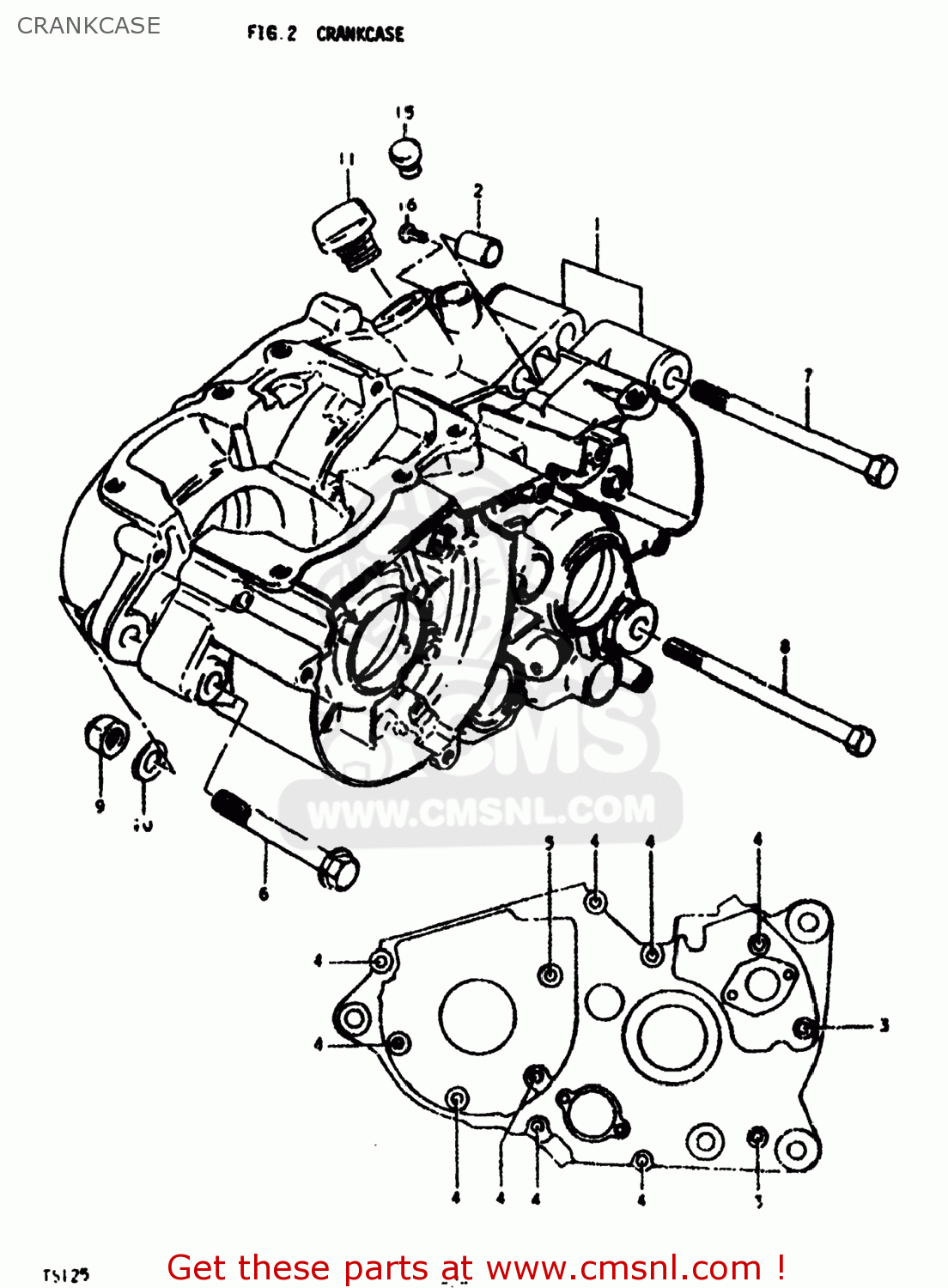

Crankcase diagram TS125 1979 (N) USA (E03)
CRANKCASE TS125 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130048810
ref: 1
11300-48812
CRANKCASE SET
€ 497.00
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0211206358
ref: 3
02112-06357
SCREW (6X35)
€ 2.50
4
0211206458
ref: 4
02112-06457
SCREW (6X45)
€ 2.00
5
0211206608
ref: 5
02112-06607
SCREW 6X60
€ 2.50
6
0110710758
ref: 6
01500-10753
BOLT
€ 2.00
7
0910010009
ref: 7
BOLT(10X110)
€ 3.50
8
0910010016
ref: 8
09100-10152
BOLT
€ 3.00
9
0915910011
ref: 9
NUT
€ 3.00
10
0832211108
ref: 10
08322-01107
WASHER
€ 2.50
11
0925919001
ref: 11
PLUG
€ 6.00
12
0925014002
ref: 12
Plug
€ 4.50
13
0211206068
ref: 13
02112-06067
SCREW,6X6
€ 2.00
