HANDLEBAR
TS125 1979 (N) USA (E03)

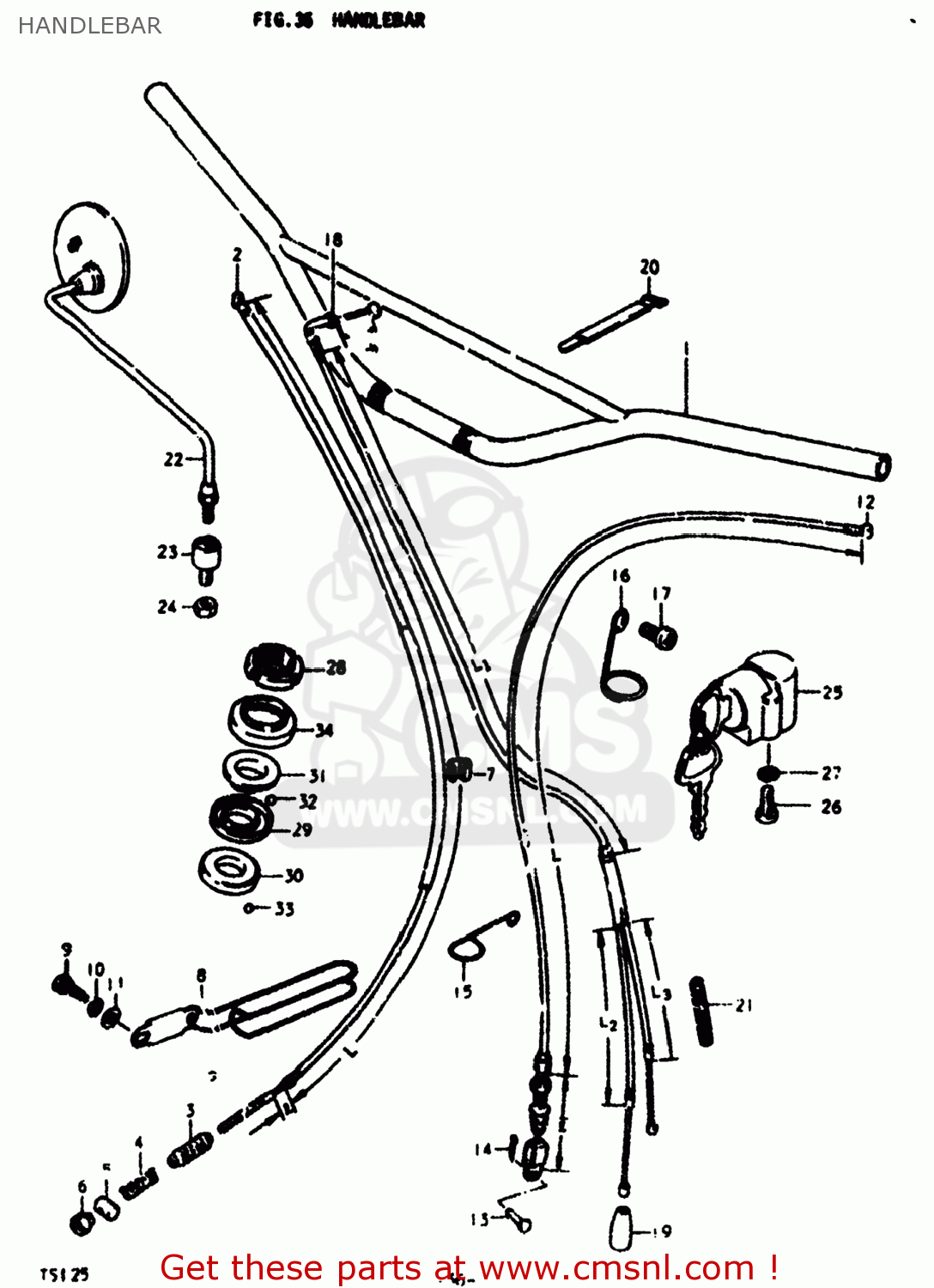

Handlebar diagram TS125 1979 (N) USA (E03)
HANDLEBAR TS125 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611048001
ref: 1-1
56110-48003-08C
HANDLEBAR
€ 49.00
1-2
5611048002
ref: 1-2
56110-48003-08C
HANDLEBAR
€ 49.00
1-3
5611048003
ref: 1-3
56110-48003-08C
HANDLEBAR
€ 49.00
2
5810028100
ref: 2
58100-28090
CABLE ASSEMBLY,FRONT BRAKE
€ 23.50
3
0928707001
ref: 3
SEAL,DUST(7X16X75)
€ 2.00
4
0944006003
ref: 4
SPRING
€ 2.00
5
0920910001
ref: 5
PIN,10X19
€ 2.00
6
0915005101
ref: 6
NUT
€ 3.00
7
0940800002
ref: 7
CLIP
€ 2.00
8
5862030501
ref: 8
34930-05203
GUIDE,CABLE
€ 16.00
9
0110708128
ref: 9
01500-08127
BOLT 8X12
€ 2.50
10
0832121088
ref: 10
08321-01087
LOCK WASHER
€ 2.00
11
0832211088
ref: 11
08322-01087
WASHER
€ 2.00
12
5820048000
ref: 12
58200-46090
CABLE ASSEMBLY,CLUTCH
€ 19.00
13
0920006011
ref: 13
PIN(L:15)
€ 2.50
14
0411120158
ref: 14
04111-2015A
PIN
€ 1.50
15
3494829000
ref: 15
CLAMP,METER CABLE
€ 0.00
16
3494930001
ref: 16
34949-30002
CLIP,TACHOMETER CABLE
€ 15.50
17
0211206088
ref: 17
02112-06087
SCREW
€ 2.00
18-1
5830048000
ref: 18-1
CABLE ASSY,THROTTLE
€ 30.00
18-1
5830048000
ref: 18-1
CABLE ASSY,THROTTLE
€ 30.00
18-2
5830048001
ref: 18-2
58300-48401
CABLE ASSEMBLY,THROTTLE
€ 32.00
18-2
5830048001
ref: 18-2
58300-48401
CABLE ASSEMBLY,THROTTLE
€ 32.00
19
0928707002
ref: 19
SEAL,DUST(7X18X30)
€ 2.50
20
0940711302
ref: 20
09407-18301
CLAMP
€ 6.00
21
5839927100
ref: 21
PROTECTOR,CABLE
€ 10.50
22-1
5650031011
ref: 22-1
56500-31013
MIRROR ASSEMBLY,RIGHT
€ 65.50
22-2
5660031011
ref: 22-2
56600-31013
MIRROR ASSEMBLY,LEFT
€ 65.50
23
5670031001
ref: 23
56700-45400
CUSHION,REAR VIEW MIRROR
€ 18.00
24
0831022108
ref: 24
08310-00107
NUT
€ 2.50
25
5191025310
ref: 25
51910-25311
LOCK ASSEMBLY,STEERING
€ 22.50
26
0211205128
ref: 26
02112-05127
SCREW
€ 2.50
27
0832121058
ref: 27
08321-0105A
LOCK WASHER
€ 2.00
28
5163128000
ref: 28
NUT,STEERING STEM(25X44X10)
€ 12.50
29
5161120002
ref: 29
RACE,STEERING INNER UPR
€ 5.50
30
5161133002
ref: 30
LACE,STEERING INNER LWR
€ 7.00
31
5162128000
ref: 31
RACE,STEERING OUTER UPR
€ 7.00
32
0611106003
ref: 32
BALL
€ 1.50
33
0611108003
ref: 33
BALL
€ 1.50
34
5164325001
ref: 34
DUST SEAL,STEERING UPR
€ 4.50
