MAGNETO (NO)
TS125 1979 (N) USA (E03)

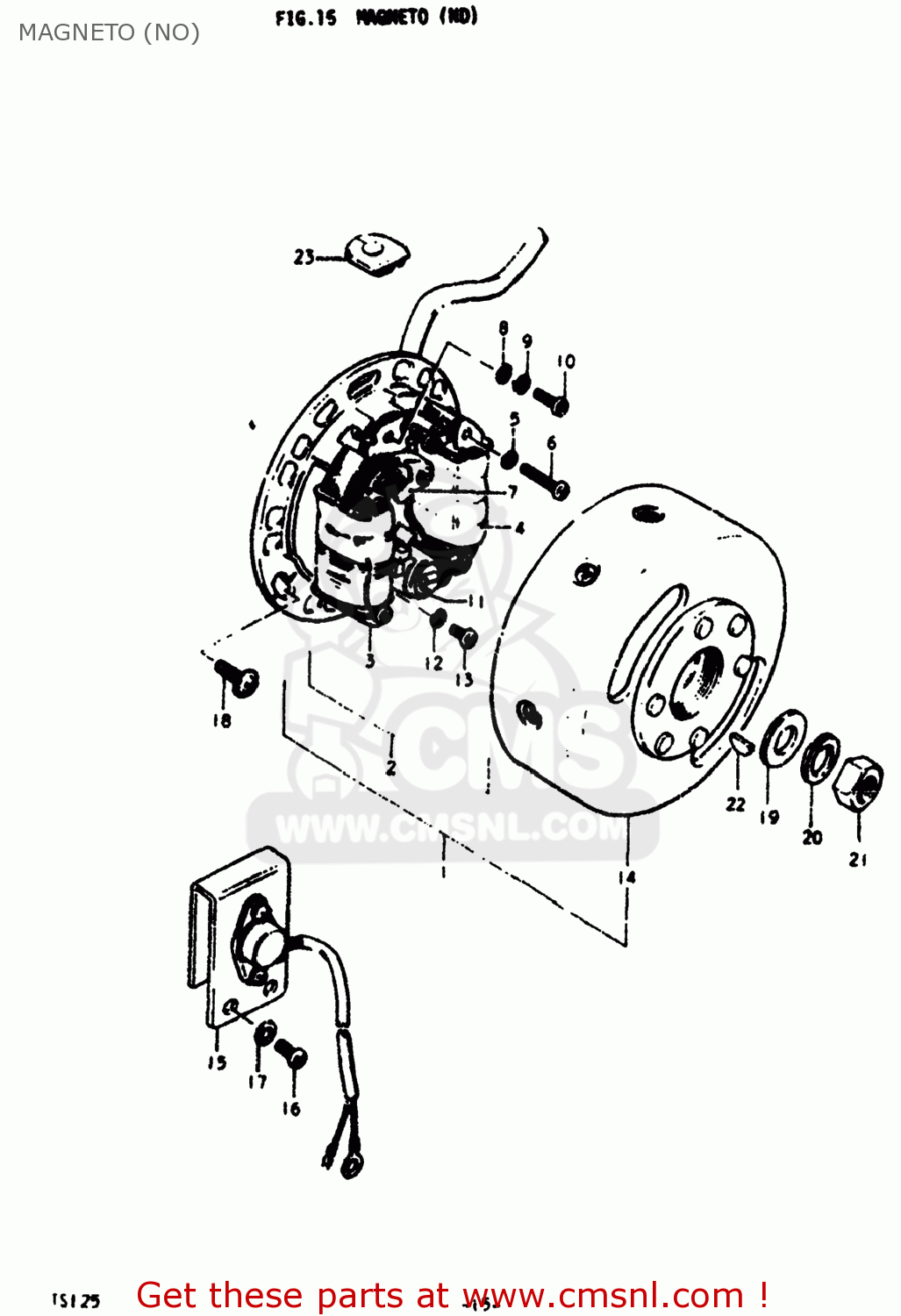

Magneto (no) diagram TS125 1979 (N) USA (E03)
MAGNETO (NO) TS125 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210048600
ref: 1
32101-48610
MAGNETO ASSEMBLY
€ 100.50
2
3210148600
ref: 2
32101-48601
STATOR ASSEMBLY
€ 100.50
3
3212048600
ref: 3
COIL,LIGHTING
€ 20.50
4
3214048600
ref: 4
COIL
€ 19.50
5
0832121048
ref: 5
08321-0104A
LOCK WASHER
€ 2.00
6
0211204258
ref: 6
02112-0425B
SCREW 4X25
€ 2.00
7
3224043012
ref: 7
POINT ASSY,CONTACT
€ 18.50
8
0832221048
ref: 8
08322-01047
WASHER
€ 2.00
9
0832121048
ref: 9
08321-0104A
LOCK WASHER
€ 2.00
10
0912504001
ref: 10
SCREW(4X10)
€ 4.50
11
3234143012
ref: 11
CONDENSER
€ 12.50
12
0832121048
ref: 12
08321-0104A
LOCK WASHER
€ 2.00
13
0211204108
ref: 13
02112-04107
SCREW 4X10
€ 2.00
14
3210248600
ref: 14
32102-39131
ROTOR ASSEMBLY
€ 211.50
15
3250027600
ref: 15
32500-25600
REGULATOR ASSEMBLY
€ 176.50
16
0211206128
ref: 16
02112-06127
SCREW 6X12
€ 2.00
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
18
0913905011
ref: 18
SCREW(5X14)
€ 3.00
19
0832221108
ref: 19
08322-01107
WASHER
€ 2.50
20
0832121108
ref: 20
08321-01107
LOCK WASHER
€ 2.00
21
0914010003
ref: 21
09140-10041
NUT (10MM)
€ 3.50
22
0834131039
ref: 22
KEY
€ 2.00
23
0930909007
ref: 23
GROMMET
€ 2.50
