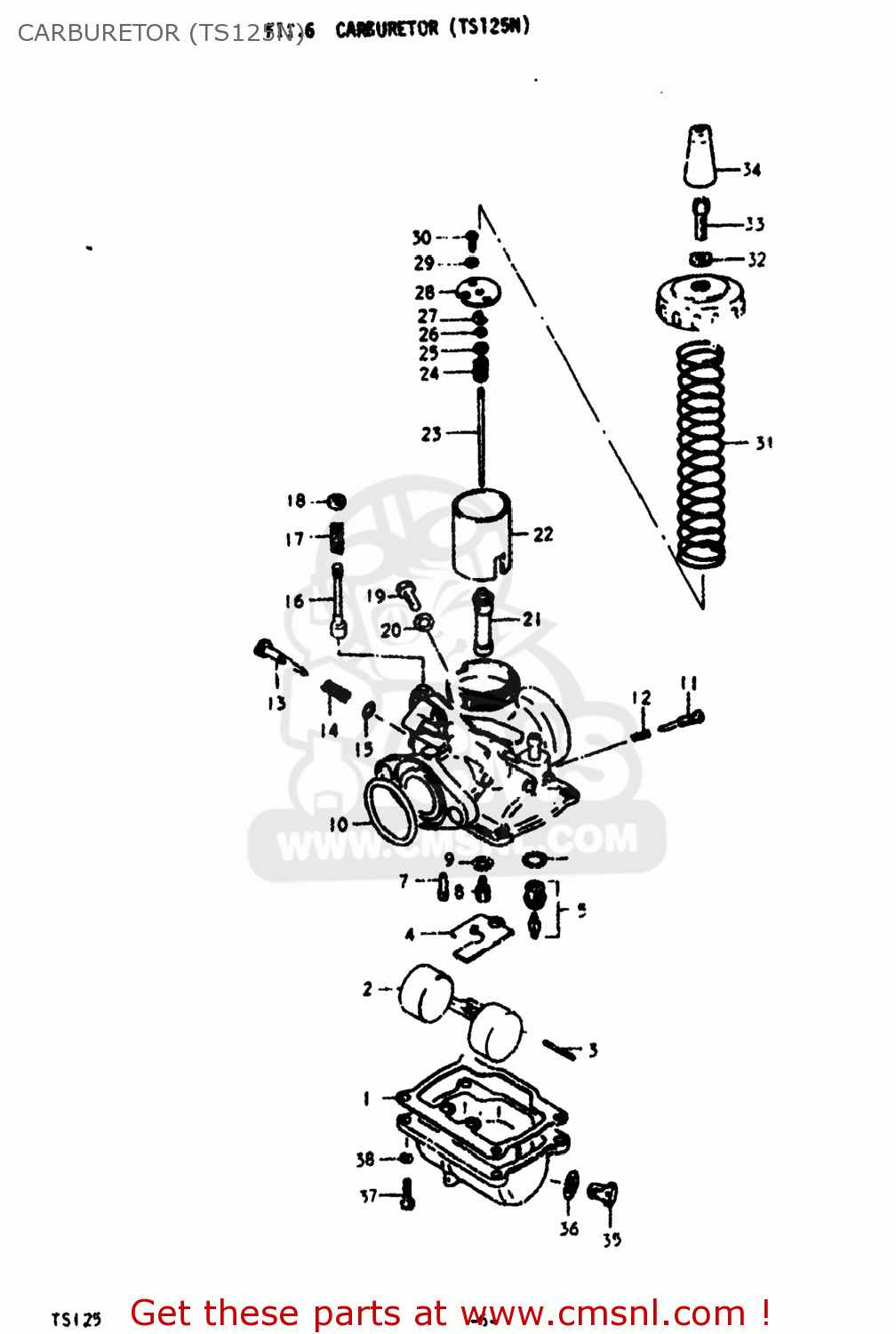

CARBURETOR (TS125N)

ref

part #

description

quantity

1320048020
ref:
13200-48411

CARBURETOR ASSEMBLY

€ 153.50

1

1325111010
ref: 1

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

2

1325211010
ref: 2

FLOAT

€ 20.50

3

1325401010
ref: 3

PIN,FLOAT

€ 3.00

4

1325997010
ref: 4

PLATE

€ 3.50

5

1337018111
ref: 5

VALVE ASSY,NEEDLE

€ 51.50

6

1339258600
ref: 6

GASKET,VALVE SEAT (NAS)

€ 2.00

7

0949217006
ref: 7

JET,PILOT(17.5)

€ 7.50

8

0949195006
ref: 8

JET,MAIN

€ 8.00

9

1338203110
ref: 9

WASHER

€ 2.50

10

1329528010
ref: 10

O RING

€ 3.50

11

1326901010
ref: 11

SCREW,PILOT AIR

€ 14.50

12

1326801010
ref: 12

SPRING

€ 3.50

13

1326741640
ref: 13

SCREW,THROTTLE STOP

€ 15.00

14

1326848110
ref: 14

SPRING,PILOT

€ 11.50

15

1329430010
ref: 15
13278-02340

O-RING

€ 1.50

16

1341115010
ref: 16

VALVE,STARTER

€ 19.00

17

1341718630
ref: 17

SPRING

€ 6.00

18

1368298010
ref: 18

RUBBER,THROTTLE VALVE CAP

€ 3.00

19

1366418654
ref: 19

BOLT

€ 10.50

20

1366331010
ref: 20

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50

21

0949400223
ref: 21

JET,NEEDLE

€ 0.00

22

1355148020
ref: 22

VALVE,THROTTLE

€ 33.50

23

1338348020
ref: 23

NEEDLE JET

€ 9.00

24

1338847010
ref: 24

SPRING

€ 7.00

25

1338247010
ref: 25

WASHER,JET NEEDLE

€ 3.00

26

1339410010
ref: 26

CLIP

€ 4.50

27

1338747010
ref: 27

RING

€ 7.50

28

1358148020
ref: 28

PLATE,THROTTLE VALVE

€ 4.00

29

0832121038
ref: 29
09162-03001

LOCK WASHER

€ 1.50

30

0211103067
ref: 30
02112-0306B

SCREW

€ 2.00

31

1357327650
ref: 31

SPRING,THROTTLE VALVE

€ 5.50

32

1366116600
ref: 32

NUT

€ 5.00

33

1357748110
ref: 33

ADJUSTER,CABLE

€ 8.00

34

1368116601
ref: 34

CAP

€ 7.00

35

1324705010
ref: 35

PLUG

€ 6.00

36

1324905010
ref: 36

GASKET,DRAIN,PLUG (NAS)

€ 1.50

37

0211204168
ref: 37
02112-0416A

SCREW

€ 1.00

38

0832121048
ref: 38
08321-0104A

LOCK WASHER

€ 2.00

all assemblies
