OIL TANK

TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

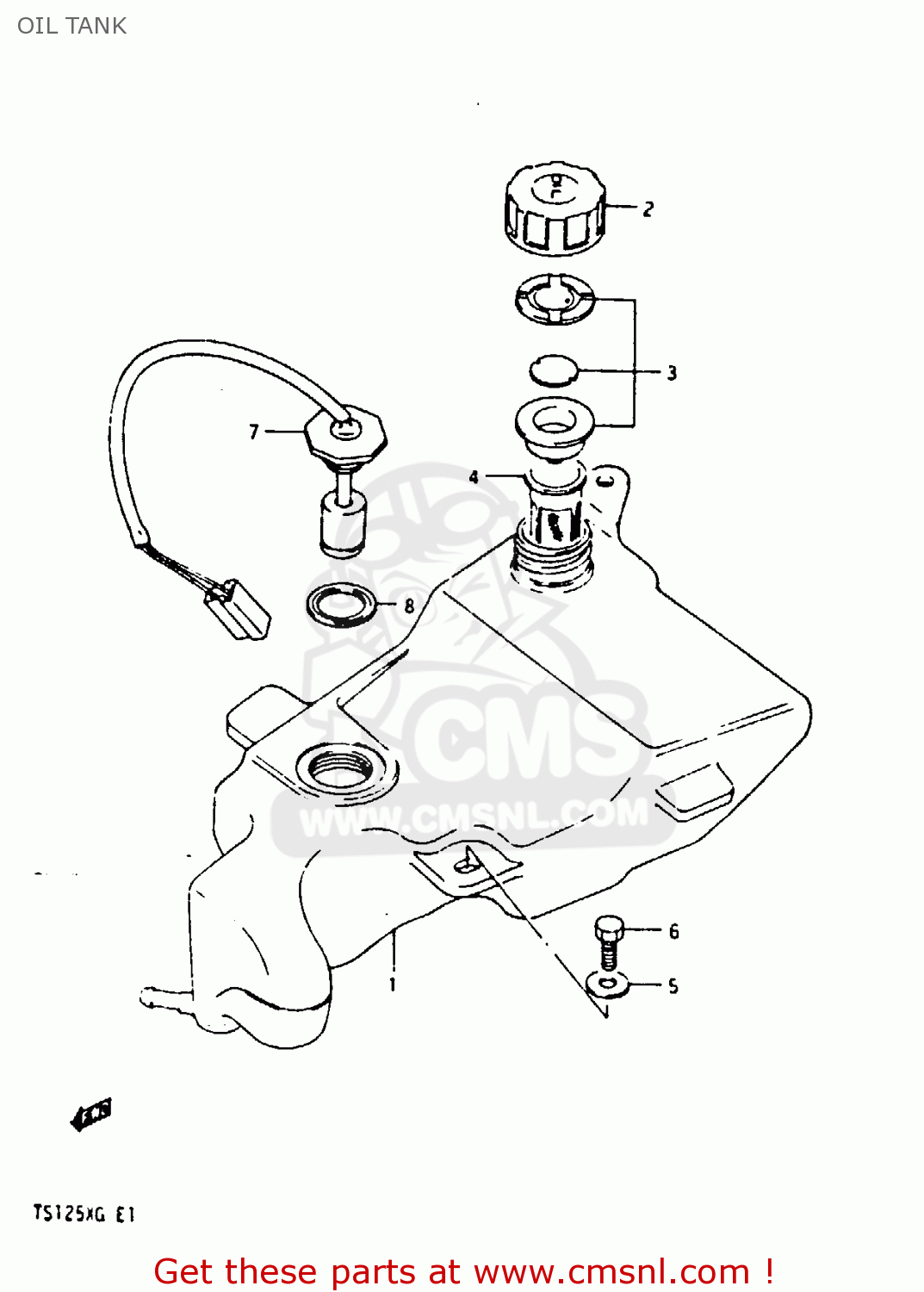

Oil tank diagram TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

prices are in EUR

ref

part #

description

quantity

4461101A00
ref: 1

TANK, OIL

€ 38.50

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4466535000
ref: 4

FILTER,OIL TANK INLET

€ 7.00

0916006007
ref: 5

WASHER

€ 2.00

0110706168
ref: 6

BOLT, UPPER

€ 3.00

7-1

3788006400
ref: 7-1
MODEL E/F

SWITCH ASSY, OIL LEVEL

€ 28.50

7-2

3788006401
ref: 7-2
MODEL G

SWITCH ASSY, OIL LEVEL

€ 28.50

4464331000
ref: 8

GASKET (NAS)

€ 2.50
