WIRING HARNESS

TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

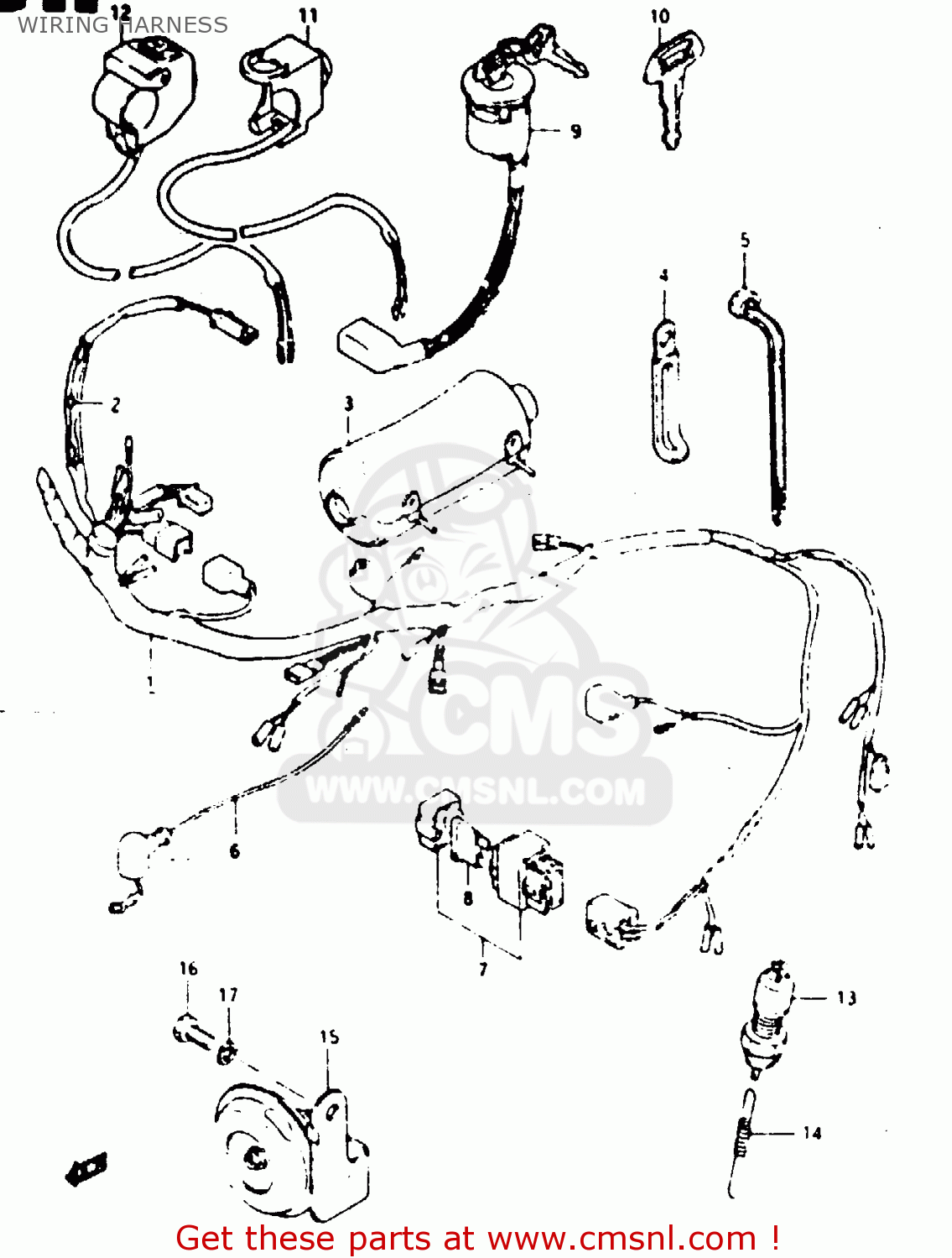

Wiring harness diagram TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

WIRING HARNESS TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)
WIRING HARNESS TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)
WIRING HARNESS TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)
prices are in EUR
ref
part #
description
quantity
1-1
NOTUSED
ref: 1-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-2
3661001A10
ref: 1-2
E2, E15, E17, E18, E
WIRING HARNESS
3661001A10
€ 163.00
2
3661102100
ref: 2
DIODE
3661102100
€ 6.00
3
3661830610
ref: 3
BOOT,WIRING HARNESS
3661830610
€ 9.50
4-1
0940406402
ref: 4-1
CLAMP
€ 2.50
4-2
0940406415
ref: 4-2
CLAMP
€ 3.00
5-1
0940714403
ref: 5-1
CLAMP(L:125)
0940714403
€ 2.50
5-2
0940718402
ref: 5-2
CLAMP(L:165)
0940718402
€ 2.50
5-3
0940725401
ref: 5-3
CLAMP(L:235)
0940725401
€ 4.00
6
3685138401
ref: 6
WIRE,WATER TEMPERATURE GAUGE
3685138401
€ 4.50
7
3674004700
ref: 7
BOX ASSEMBLY,FUSE
3674004700
€ 16.00
8
0948115101
ref: 8
FUSE(15A)
0948115101
€ 1.50
9
3711001A00
ref: 9
SWITCH ASSEMBLY,IGNITION
3711001A00
€ 64.50
10
3714502400
ref: 10
OPT
KEY,BLANK
€ 13.00
11
3783001A00
ref: 11
MODEL D
SWITCH ASSY, ENGINE STOP
3783001A00
€ 34.50
12-1
NOTUSED
ref: 12-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12-2
3783013A00
ref: 12-2
MODEL E/G
SWITCH ASSY,ENGINE STOP
3783013A00
€ 43.00
13
3774007900
ref: 13
SWITCH ASSEMBLY,STOP LAMP
3774007900
€ 20.50
14
0944306012
ref: 14
SPRING
0944306012
€ 3.00
15-1
3850001A00
ref: 15-1
HORN ASSY
€ 26.50
15-2
NOTUSED
ref: 15-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
0211206125
ref: 16
SCREW
0211206125
€ 1.50
17
0832121064
ref: 17
WASHER,LOCK
0832121064
€ 2.00
