REAR SHOCK ABSORBER

TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

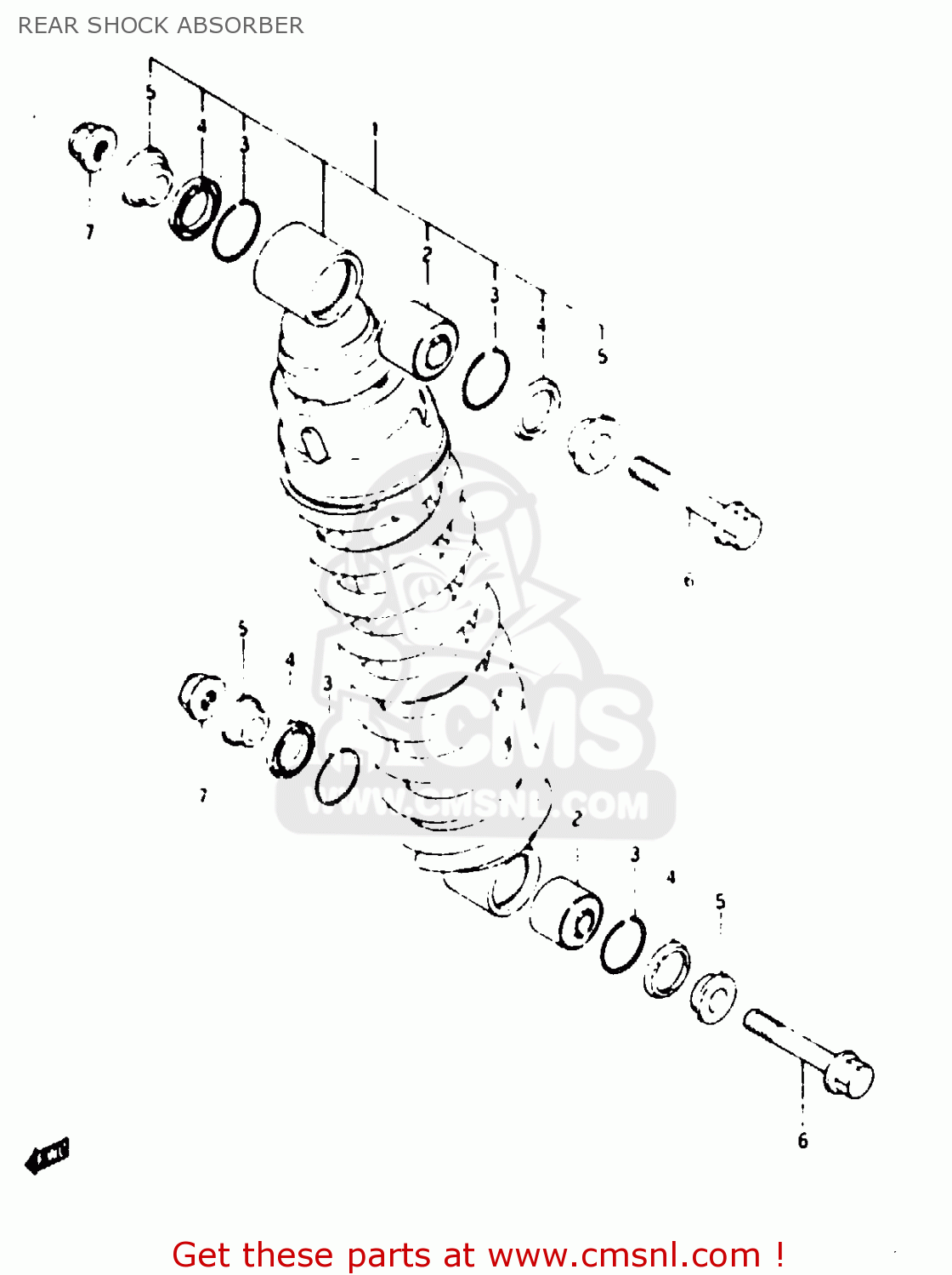

Rear shock absorber diagram TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

REAR SHOCK ABSORBER TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

REAR SHOCK ABSORBER TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

prices are in EUR

ref

part #

description

quantity

1-1

6210001A10019
ref: 1-1

SHOCK ABSORBER, REAR (BLACK)

€ 649.50

1-2

6210001A1019F
ref: 1-2

SHOCK ABSORBER, REAR (BLUE)

€ 649.50

2

6217520920
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

3

6227720900
ref: 3

RING

€ 1.50

4

6222620900
ref: 4

DUST SEAL

€ 8.00

5

6268420900
ref: 5

SPACER

€ 8.00

6

0910310064
ref: 6

BOLT(10X50)

€ 4.50

7

0831931108
ref: 7

NUT

€ 3.00
