SEAT

TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

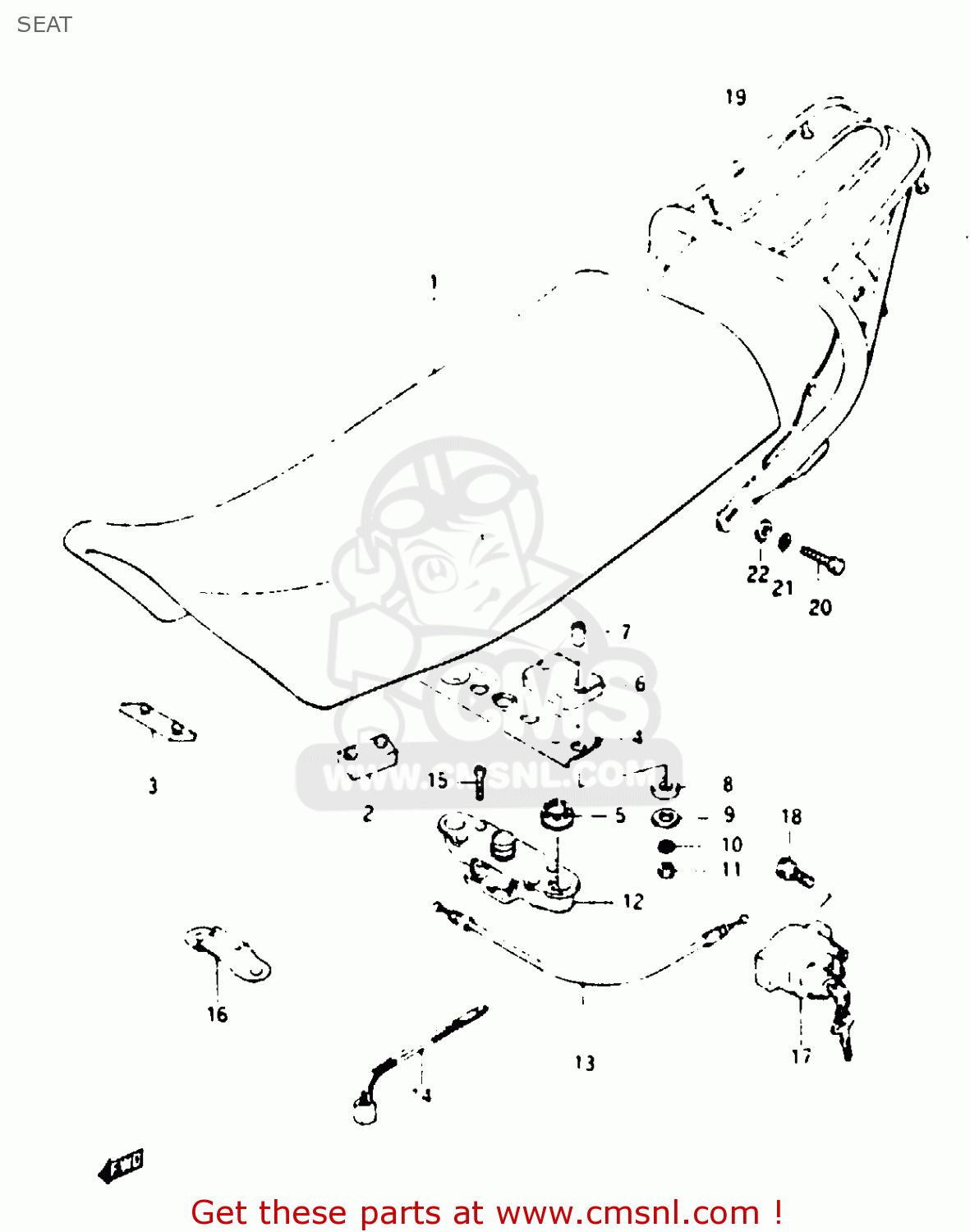

Seat diagram TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

SEAT TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)
SEAT TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)
SEAT TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)
prices are in EUR
ref
part #
description
quantity
1-1
4510001A1058D
ref: 1-1
MODEL E/F
SEAT ASSY (BLUE)
€ 261.50
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
4510001A3058D
ref: 1-3
MODEL G
SEAT SET
€ 261.50
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
0932108006
ref: 2
CUSHION
0932108006
€ 3.00
3
0932108009
ref: 3
CUSHION
0932108009
€ 4.00
4
4521001A00
ref: 4
STRIKER, SEAT LOCK
€ 10.50
5
4521313600
ref: 5
CUSHION
4521313600
€ 1.50
6
4512601A00
ref: 6
CUSHION, SEAT LOCK UPPER
€ 3.50
7
4521923450
ref: 7
SPACER,SEAT SUPPORT
€ 2.50
8
4514723450
ref: 8
CUSHION,SEAT FR
4514723450
€ 1.50
9
0821206201
ref: 9
WASHER
0821206201
€ 1.50
10
0832121066
ref: 10
WASHER,LOCK
0832121066
€ 2.00
11
0831921068
ref: 11
NUT 6MM
0831921068
€ 2.00
12-1
4522013600
ref: 12-1
TO 45220-13601 WITH
LOCK ASSEMBLY,SEAT STRIKER
4522013600
€ 47.00
12-2
4522013601
ref: 12-2
LOCK ASSY,SEAT STRIKER
4522013601
€ 47.00
13
4528001A00
ref: 13
CABLE,SEAT LOCK CABLE
4528001A00
€ 10.50
14
0940718402
ref: 14
CLAMP(L:165)
0940718402
€ 2.50
15-1
0212206306
ref: 15-1
FOR 45220-13600
SCREW
€ 2.00
15-2
0211206306
ref: 15-2
FOR 45220-13601
SCREW,6X30
0211206306
€ 2.50
16
4511901A00
ref: 16
PLATE,SEAT FR HOOK
4511901A00
€ 4.50
17
4570001A00KEY
ref: 17
LOCK ASSY, SEAT & HELMET
€ 46.00
18
0711006105
ref: 18
BOLT
€ 2.50
19-1
4631001A00
ref: 19-1
CARRIER, SPORT
€ 71.00
19-2
NOTUSED
ref: 19-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20
0110708165
ref: 20
BOLT
€ 2.00
21
0832121084
ref: 21
WASHER,LOCK,8.
0832121084
€ 2.50
22
0832211084
ref: 22
WASHER
0832211084
€ 1.50
