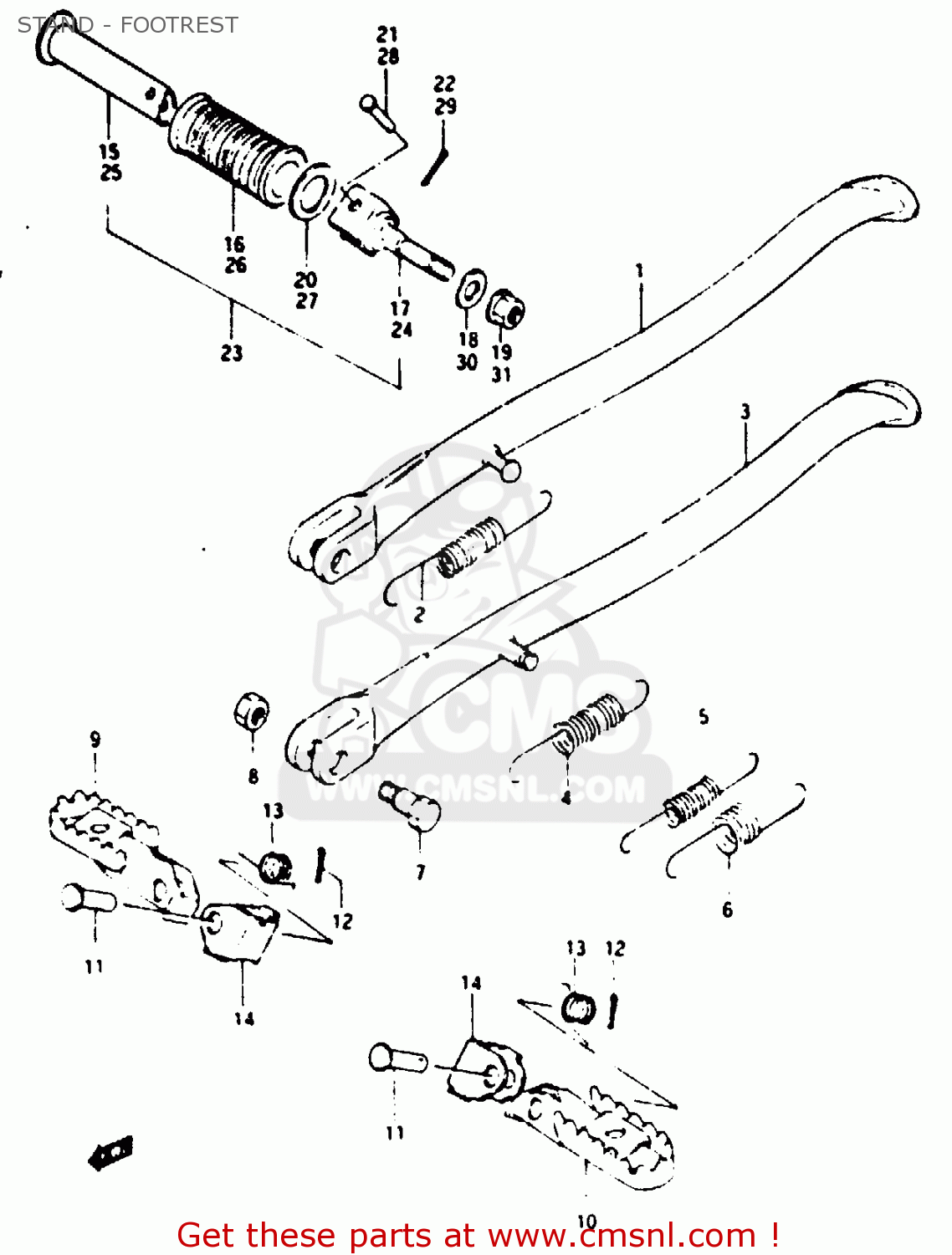

STAND - FOOTREST - TS125X 1985 (F) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E27)

ref

part #

description

quantity

1-1

4231001A0019F
ref: 1-1
FOR 14L, 21C, 163

STAND, PROP (BLUE)

€ 20.50

1-2

4231001A00019
ref: 1-2
FOR 08Y, 14C

STAND, PROP (BLACK)

€ 20.50

2

0944318009
ref: 2

SPRING

€ 21.00

3-1

4231001A1019F
ref: 3-1
E15, E18, E22, MODEL

STAND, PROP (BLUE)

€ 47.50

3-2

4231001A10019
ref: 3-2
E15, E18, E22, MODEL

STAND, PROP (BLACK)

€ 47.50

4

0944318015
ref: 4
E15, E18, MODEL G E2

SPRING

€ 5.50

5

NOTUSED
ref: 5

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6

NOTUSED
ref: 6

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7

0911110019
ref: 7

BOLT L:30

€ 4.50

8

0831022108
ref: 8

NUT

€ 2.50

9-1

4355001A0119F
ref: 9-1
FOR 14L, 21C, 163

FOOTREST, RH (BLUE)

€ 25.00

9-2

4355001A01019
ref: 9-2
FOR 08Y, 14C

FOOTREST,FR,R

€ 25.00

10-1

4356001A0119F
ref: 10-1
MODEL E/F, FOR 14L,

FOOTREST, LH (BLUE)

€ 20.50

10-2

4356001A0219F
ref: 10-2
MODEL G, FOR 14L, 21

FOOTREST, LH (BLUE)

€ 20.50

10-3

4356001A01019
ref: 10-3
MODEL E/F, FOR 08Y,

FOOTREST, LH (BLACK)

€ 20.50

10-4

4356001A02019
ref: 10-4
MODEL G, FOR 08Y, 14

FOOTREST, LH (BLACK)

€ 20.50

11

0920010013
ref: 11

PIN

€ 2.50

12

0411125208
ref: 12

PIN 25X20

€ 2.00

13

0944815007
ref: 13

SPRING

€ 2.50

14

4357001A00
ref: 14

CUSHION,FR FOOTREST

€ 12.00

15

4361044000
ref: 15
MODEL E/F

BAR,PILLION FOOTREST

€ 14.50

16

4361233200
ref: 16
MODEL E/F

RUBBER,PILLION FOOTREST

€ 4.50

17

4362001A00
ref: 17
MODEL E/F

HOLDER, PILLION FOOTREST

€ 15.00

18

0832221108
ref: 18
MODEL E/F

WASHER

€ 2.50

19

0831616108
ref: 19
MODEL E/F

NUT

€ 2.00

20

0916019006
ref: 20
MODEL E/F

WASHER (19.5X32X2)

€ 2.00

21

0920006010
ref: 21
MODEL E/F

PIN

€ 2.50

22

0411125208
ref: 22
MODEL E/F

PIN 25X20

€ 2.00

23-1

4360001A10
ref: 23-1
MODEL G

FOOTREST ASSY,PILLION,R

€ 23.50

23-2

4370001A10
ref: 23-2
MODEL G

FOOTREST ASSY, PILLION LH

€ 17.00

24

4362001A00
ref: 24
MODEL G

HOLDER, PILLION FOOTREST

€ 15.00

25

4361003001
ref: 25
MODEL G

BAR,FOOTREST RUBBER

€ 5.50

26

4361233200
ref: 26
MODEL G

RUBBER,PILLION FOOTREST

€ 4.50

27

0916019006
ref: 27
MODEL G

WASHER (19.5X32X2)

€ 2.00

28

0920006010
ref: 28
MODEL G

PIN

€ 2.50

29

0411120208
ref: 29
MODEL G

PIN 20X20

€ 1.50

30

0832221108
ref: 30
MODEL G

WASHER

€ 2.50

31

0831616108
ref: 31
MODEL G

NUT

€ 2.00

STAND - FOOTREST

all assemblies
