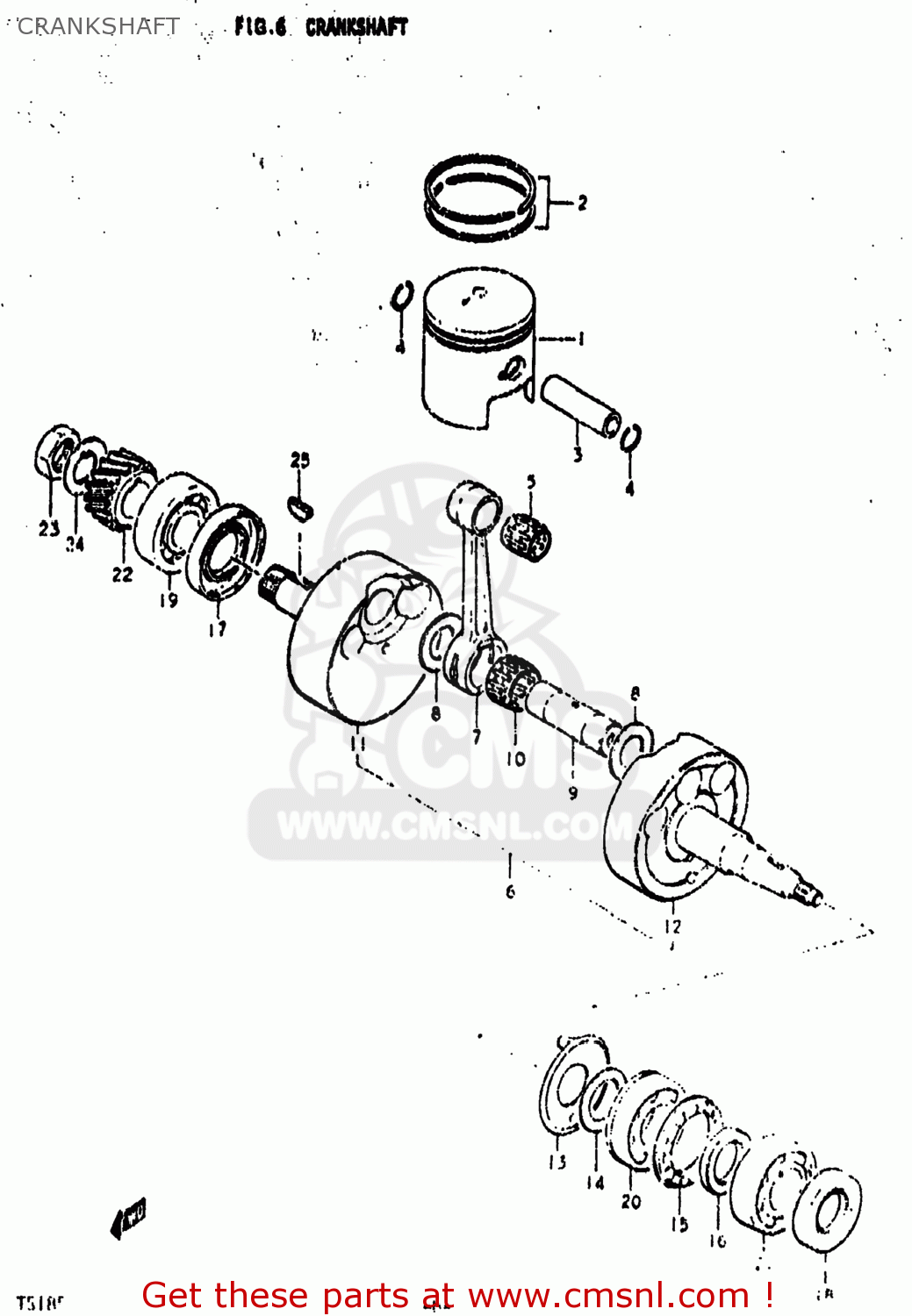

CRANKSHAFT

ref

part #

description

quantity

1-1

1211029000
ref: 1-1
12110-29001

PISTON

€ 70.00

1-2

1211029001
ref: 1-2

PISTON

€ 70.00

1-3

1211029710
ref: 1-3
12103-29830-050

PISTON

€ 90.00

1-4

1211029711
ref: 1-4
12103-29830-050

PISTON

€ 90.00

1-5

1211029720
ref: 1-5
12110-29001-100

PISTON

€ 141.50

1-6

1211029721
ref: 1-6
12110-29001-100

PISTON

€ 141.50

2-1

1214029010
ref: 2-1

RING SET,PISTON

€ 44.50

2-2

1214029710
ref: 2-2
12140-29010-050

RING SET,PISTON(OS:0.50)

€ 29.00

2-3

1214029760
ref: 2-3
12140-97311

RING SET,PISTON 1.00 OVERSIZE

€ 36.00

3

1215129000
ref: 3
12151-29001

PIN,PISTON

€ 9.00

4

0938116001
ref: 4

RING,SNAP 16MM

€ 1.50

5

0926316005
ref: 5
09263-16015

BEARING

€ 15.00

6

1220029810
ref: 6

CRANKSHAFT ASSEMBLY

€ 156.50

7

1216193000
ref: 7
12161-41500

ROD, CONNECTING

€ 109.50

8

0916022010
ref: 8

WASHER(22X35X1)

€ 6.50

9

1221129001
ref: 9

PIN,CRANK

€ 30.50

10

0926322006
ref: 10
09263-22032

BEARING 22X28X16

€ 22.50

11

1222129002
ref: 11

CRANKSHAFT

€ 52.50

12

1226129001
ref: 12

CRANKSHAFT,LEFT

€ 65.00

13-1

1251129001
ref: 13-1

PLATE,CRANKSHAFT OIL GUIDE

€ 4.50

13-2

1251129100
ref: 13-2

PLATE,CSHAFT OIL GUIDE

€ 8.00

14

0822125345
ref: 14

SHIM

€ 2.50

15

1235329001
ref: 15

SPACER,CRANKSHAFT,LEFT

€ 5.50

16

0918025035
ref: 16

SPACER

€ 0.00

17

0928326007
ref: 17

SEAL,OIL(26X52X8)

€ 7.50

18

0928325037
ref: 18
09283-25066

OIL SEAL

€ 7.00

19

0926220009
ref: 19
09262-20073

BEARING

€ 19.00

20

0816362050
ref: 20

BEARING

€ 14.00

21

0811362050
ref: 21
09262-25003

BEARING

€ 20.50

22

2111129000
ref: 22

GEAR,PRIMARY DRIVE

€ 30.00

23

0914018002
ref: 23

NUT

€ 3.50

24

0916618001
ref: 24

WASHER

€ 3.00

25

0834131059
ref: 25

KEY

€ 3.00
