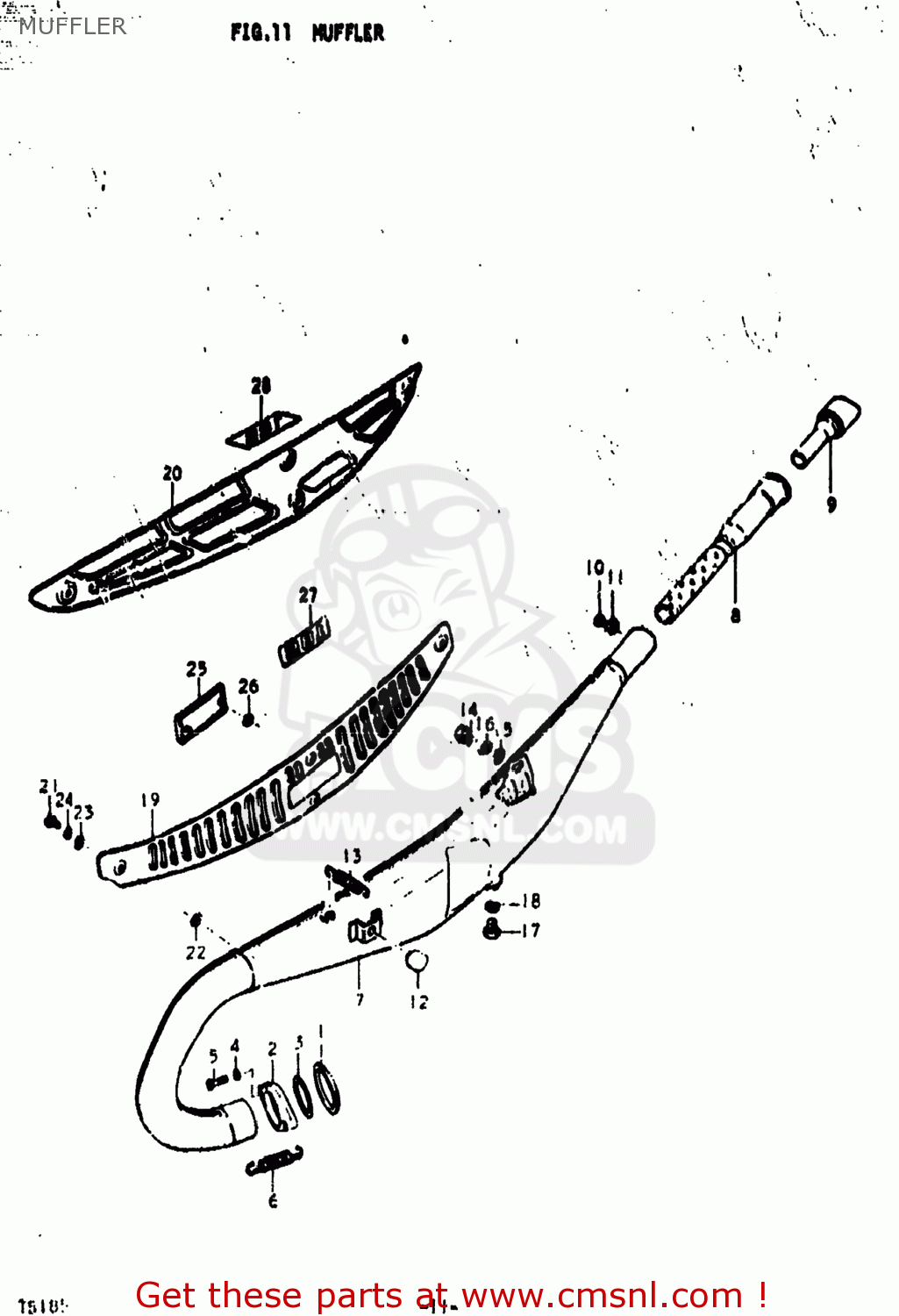

MUFFLER

ref

part #

description

quantity

1

1418128080
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 10.50

2

1418228000
ref: 2

CLAMP,EXHAUST PIPE

€ 11.50

3

1418428010
ref: 3
14184-28011

CUSHION,EXHAUST PIPE

€ 4.50

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

0111206258
ref: 5
01500-06257

BOLT

€ 2.00

6

0944311002
ref: 6

SPRING

€ 4.50

7-1

1430129602
ref: 7-1

MUFFLER ASSEMBLY

€ 114.00

7-2

1430129603
ref: 7-2
14301-29650-H01

MUFFLER ASSEMBLY

€ 114.00

7-3

1430129660
ref: 7-3
14301-29650-H01

MUFFLER ASSEMBLY

€ 114.00

8-1

1481029602
ref: 8-1

ARRESTER,SPARK

€ 26.00

8-2

1481029603
ref: 8-2

ARRESTER,SPARK

€ 36.00

9-1

1485029601
ref: 9-1

TUBE,MUFFLER CLEAN OUT

€ 35.50

9-2

1485027600
ref: 9-2

TUBE,MUFFLER CLEAN OUT

€ 24.50

10-1

0211105087
ref: 10-1
02112-05087

SCREW

€ 2.00

10-2

0912806013
ref: 10-2

SCREW(6X8)

€ 1.50

11-1

0832121058
ref: 11-1
08321-0105A

LOCK WASHER

€ 2.00

11-2

0832121068
ref: 11-2
08321-01067

LOCK WASHER

€ 2.50

12

0932110002
ref: 12

CUSHION(11.5X22X20)

€ 2.00

13

0944311002
ref: 13

SPRING

€ 4.50

14

0112208168
ref: 14
01500-0816B

BOLT

€ 2.00

15

0916008013
ref: 15
09160-08120

WASHER (8.5X18X2)

€ 2.50

16

0832121088
ref: 16
08321-01087

LOCK WASHER

€ 2.00

17

0910010004
ref: 17

BOLT 10X9

€ 1.00

18

0916810002
ref: 18

GASKET(10X14X3.6) (NAS)

€ 2.00

19

1478129600
ref: 19
14781-29610

COVER,MUFFLER

€ 35.50

20

1478129610
ref: 20

COVER,MUFFLER

€ 35.50

21-1

0211206128
ref: 21-1
02112-06127

SCREW 6X12

€ 2.00

21-2

0211206108
ref: 21-2
02112-06107

SCREW

€ 1.50

22

0916806005
ref: 22
09168-06105

GASKET 6.2X12X1.5 (MCA)

€ 2.00

23

0832211068
ref: 23
08322-0106B

WASHER 6MM

€ 2.00

24

0832121060
ref: 24
08321-01067

LOCK WASHER

€ 2.50

25

1479929600
ref: 25

EMBLEM,MUFFLER COVER

€ 0.00

26

0914803004
ref: 26
09148-03011

NUT

€ 2.00

27

1479929601
ref: 27

EMBLEM,MUFFLER COVER

€ 4.00

28

1479929602
ref: 28

EMBLEM,MUFFLER COVER

€ 3.50

all assemblies
