REAR BRAKE
TS185 1976 (A) USA (E03)

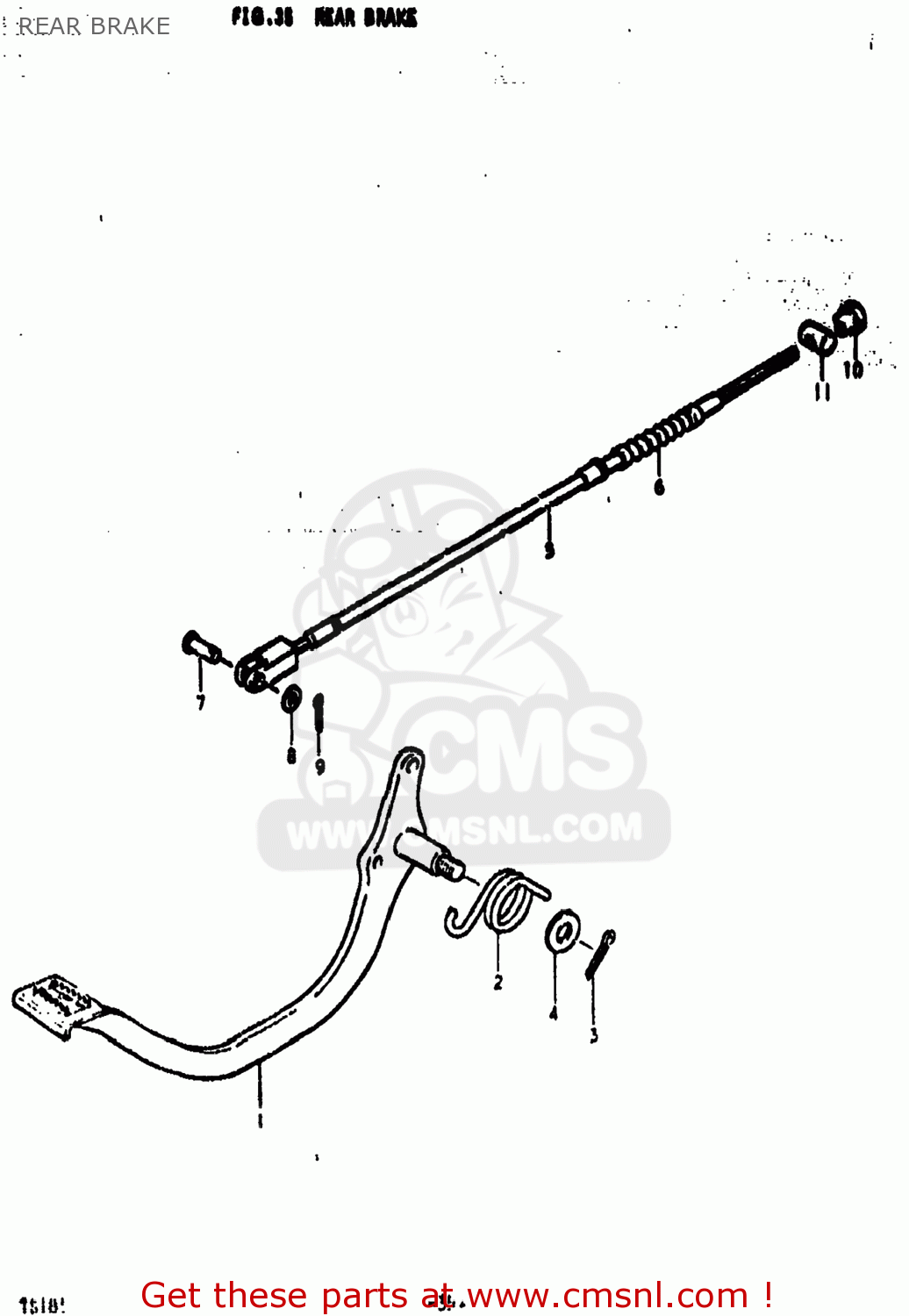

Rear brake diagram TS185 1976 (A) USA (E03)
REAR BRAKE TS185 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311029000
ref: 1
PEDAL,BRAKE
€ 35.00
2
0944832004
ref: 2
09448-32004-XC0
SPRING
€ 4.50
3
0411130308
ref: 3
04111-3030A
COTTER PIN
€ 1.50
4
0918015002
ref: 4
SPACER(15.2X26X33)
€ 5.00
5
5851029000
ref: 5
CABLE,RR BRAKE
€ 34.50
6
0928705001
ref: 6
SEAL,DUST
€ 11.00
7
0920005001
ref: 7
PIN(L:17.5)
€ 1.50
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0411120158
ref: 9
04111-2015A
PIN
€ 1.50
10
0915006001
ref: 10
09150-06010
NUT
€ 3.50
11
0920911002
ref: 11
PIN(11X18)
€ 2.00
