REAR SWINGING ARM
TS185 1976 (A) USA (E03)

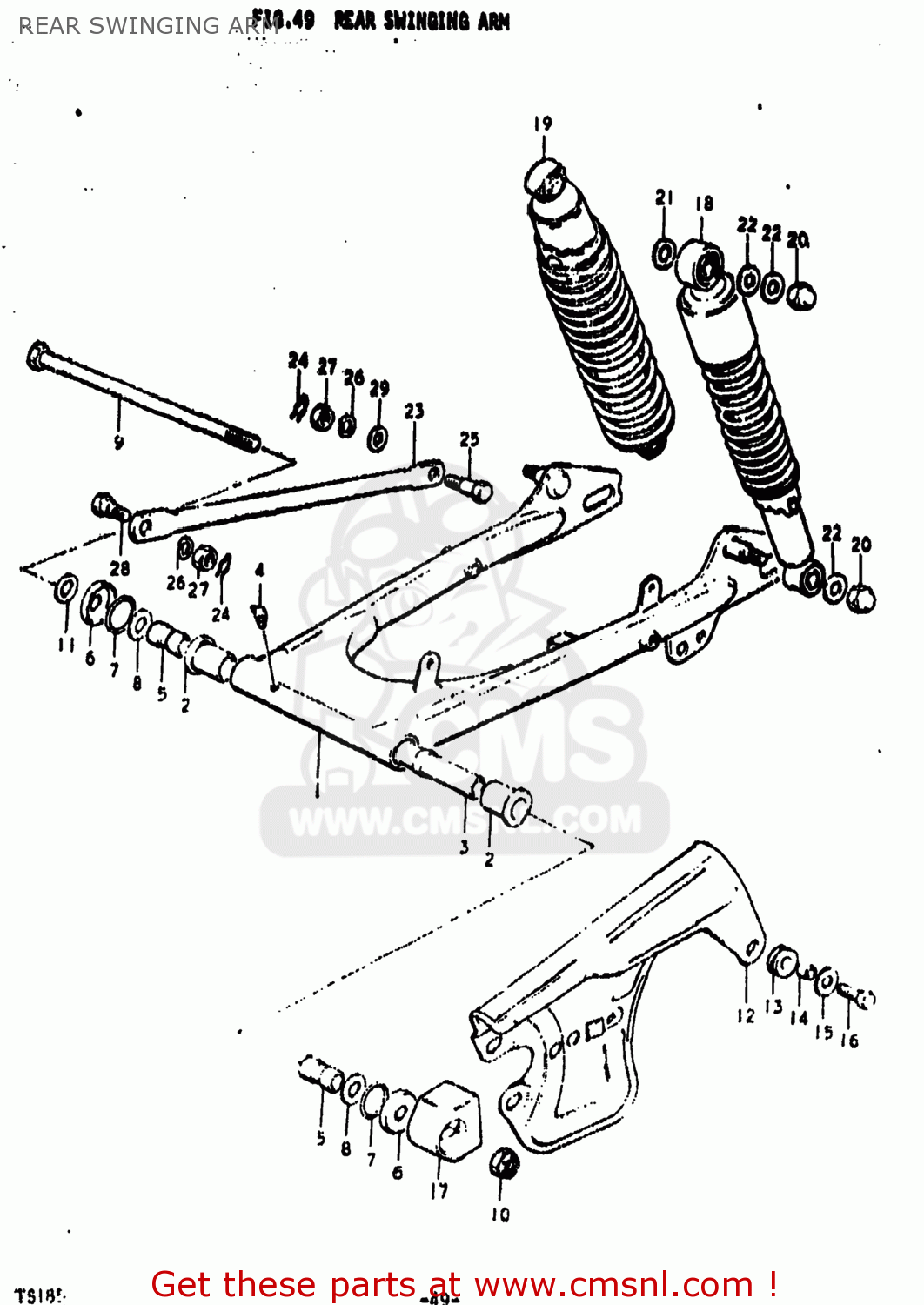

Rear swinging arm diagram TS185 1976 (A) USA (E03)
REAR SWINGING ARM TS185 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6110028841019
ref: 1-1
SWING ARM ASSEMBLY,REAR
€ 68.50
1-2
6110028860019
ref: 1-2
SWING ARM ASSEMBLY,REAR
€ 68.50
2
0930718001
ref: 2
09307-18002
BUSHING
€ 10.50
3
6128028000
ref: 3
SPACER,SWING ARM,CENTER
€ 12.00
4
0835131008
ref: 4
08351-3100A
NIPPLE,GREASE
€ 10.50
5
6125128000
ref: 5
SPACER,RR SWGARM PIVOT
€ 8.50
6
6126209200
ref: 6
COVER,SWGARM BUSH DUST SEAL
€ 2.50
7
0928024001
ref: 7
O RING(D:2,ID:24.5)
€ 2.00
8
0916012005
ref: 8
WASHER(12.5X24X2.3)
€ 3.00
9-1
6121128001
ref: 9-1
61211-28002
SHAFT,REAR SWING ARM
€ 23.00
9-2
6121128002
ref: 9-2
SHAFT,PIVOT
€ 23.00
10
0915912102
ref: 10
NUT
€ 5.00
11
0832211128
ref: 11
08322-01127
WASHER
€ 2.00
12-1
6131028000126
ref: 12-1
61310-28000-019
CASE,CHAIN
€ 79.50
12-2
6131028000019
ref: 12-2
CASE,CHAIN
€ 79.50
13
0932008007
ref: 13
09320-08021
CUSHION
€ 4.00
14
0918007005
ref: 14
09180-06259
SPACER (7X9X7)
€ 2.50
15
0916006027
ref: 15
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
16
0111206128
ref: 16
01500-06127
BOLT
€ 2.00
17-1
6127328000
ref: 17-1
61273-28001
BUFFER,CHAIN TOUCH DEFLECTOR
€ 11.00
17-2
6127328001
ref: 17-2
BUFFER,CHAIN TOUCH DEFENSE
€ 11.00
18-1
6210028600
ref: 18-1
ABSORBER ASSEMBLY,REAR SHOCK
€ 188.00
18-2
6210028601
ref: 18-2
62100-28602
ABSORBER ASSEMBLY,REAR SHOCK
€ 188.00
19
6210028602
ref: 19
ABSORBER ASSEMBLY,REAR SHOCK
€ 188.00
20
0831311107
ref: 20
08313-10107
NUT
€ 2.50
21
0832211128
ref: 21
08322-01127
WASHER
€ 2.00
22
0916010001
ref: 22
09160-10093
WASHER
€ 2.00
23
6431128000
ref: 23
64311-28000-019
TORQUE LINK,REAR
€ 10.00
24-1
0938406001
ref: 24-1
RETAINER,SNAP
€ 2.50
24-2
0938510001
ref: 24-2
09385-10005
CLIP
€ 1.50
25
0911108013
ref: 25
BOLT(8X26.5)
€ 3.00
26
0832121088
ref: 26
08321-01087
LOCK WASHER
€ 2.00
27
0914008008
ref: 27
NUT
€ 1.50
28-1
0911908017
ref: 28-1
09111-08015
BOLT
€ 3.00
28-2
0911108015
ref: 28-2
BOLT(8X22)
€ 3.00
29
0832211088
ref: 29
08322-01087
WASHER
€ 2.00
