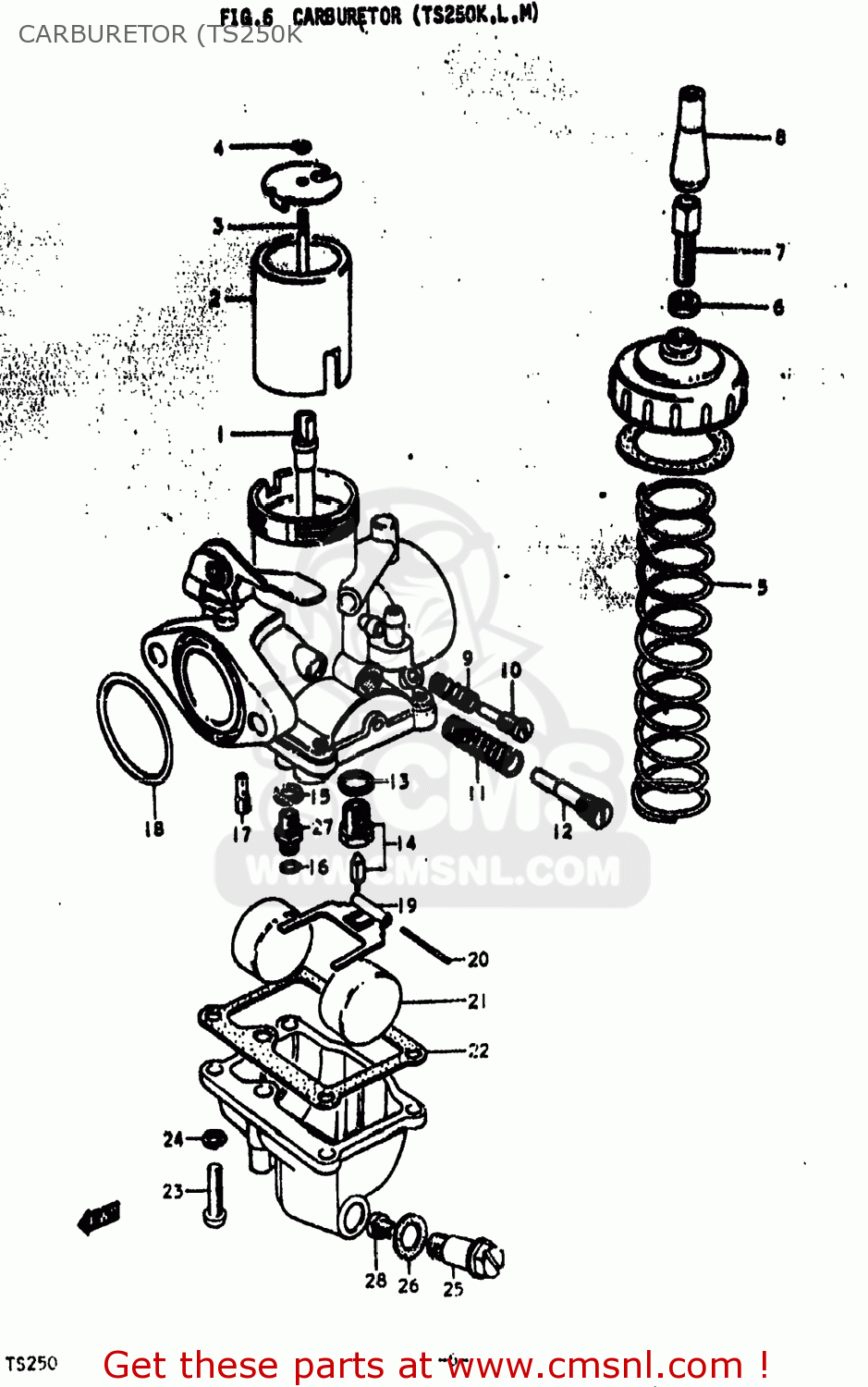

CARBURETOR (TS250K

ref

part #

description

quantity

0

1320030601
ref: 0

CARBURETOR ASSEMBLY

€ 96.00

1

0949400082
ref: 1

JET,NEEDLE

€ 17.50

2

1355130010
ref: 2

VALVE,THROTTLE

€ 30.00

3

1338318620
ref: 3

NEEDLE,JET(5CN3)

€ 15.00

4

1339410010
ref: 4

CLIP

€ 4.50

5

1357330010
ref: 5

SPRING

€ 1.50

6

1366116600
ref: 6

NUT

€ 5.00

7

1357703010
ref: 7
13577-48110

ADJUSTER,CABLE

€ 8.00

8

1368116601
ref: 8

CAP

€ 7.00

9

1326801010
ref: 9

SPRING

€ 3.50

10

1326915010
ref: 10

SCREW,PILOT AIR

€ 10.50

11

1326803110
ref: 11

SPRING,THROTTLE SCREW

€ 3.50

12

1326718654
ref: 12

ADJUSTER

€ 3.50

13

1339258600
ref: 13

GASKET,VALVE SEAT (NAS)

€ 2.00

14

1337018111
ref: 14

VALVE ASSY,NEEDLE

€ 51.50

15

1338203110
ref: 15

WASHER

€ 2.50

16

1329430010
ref: 16
13278-02340

O-RING

€ 1.50

17

0949225003
ref: 17
09492-25005

JET

€ 6.50

18

1329518620
ref: 18

O-RING

€ 4.00

19

1325330010
ref: 19

ARM,FLOAT

€ 0.00

20

1325435013
ref: 20
13254-01010

PIN,FLOAT

€ 3.00

21

1325218620
ref: 21

FLOAT

€ 27.50

22-1

1325118010
ref: 22-1
13251-33110

GASKET,FLOAT CHAMBER (MCA)

€ 10.50

22-2

1325133110
ref: 22-2

GASKET,FLOAT CAHMBER (NAS)

€ 10.50

23

0211104168
ref: 23
02112-0416A

SCREW

€ 1.00

24

0832121048
ref: 24
08321-0104A

LOCK WASHER

€ 2.00

25

1333330010
ref: 25

NO PRODUCT DESCRIPTION AVAILABLE

€ 6.00

26

1333230010
ref: 26

WASHER

€ 3.00

27

1333030010
ref: 27

NO PRODUCT DESCRIPTION AVAILABLE

€ 2.00

28-1

0949136003
ref: 28-1
09491-36006

JET

€ 15.00

28-2

0949132002
ref: 28-2

JET,MAIN(160)

€ 6.50

28-3

0949134002
ref: 28-3

JET,MAIN(170)

€ 7.00

28-4

0949138003
ref: 28-4
09491-38009

JET

€ 10.00

28-5

0949140004
ref: 28-5
09491-40006

JET

€ 11.50

28-6

0949142001
ref: 28-6
09491-42005

JET,MAIN (210)

€ 11.00

28-7

0949144001
ref: 28-7
09491-44007

JET,MAIN (220)

€ 9.50

28-8

0949146001
ref: 28-8

JET,MAIN(230)

€ 6.50

all assemblies
