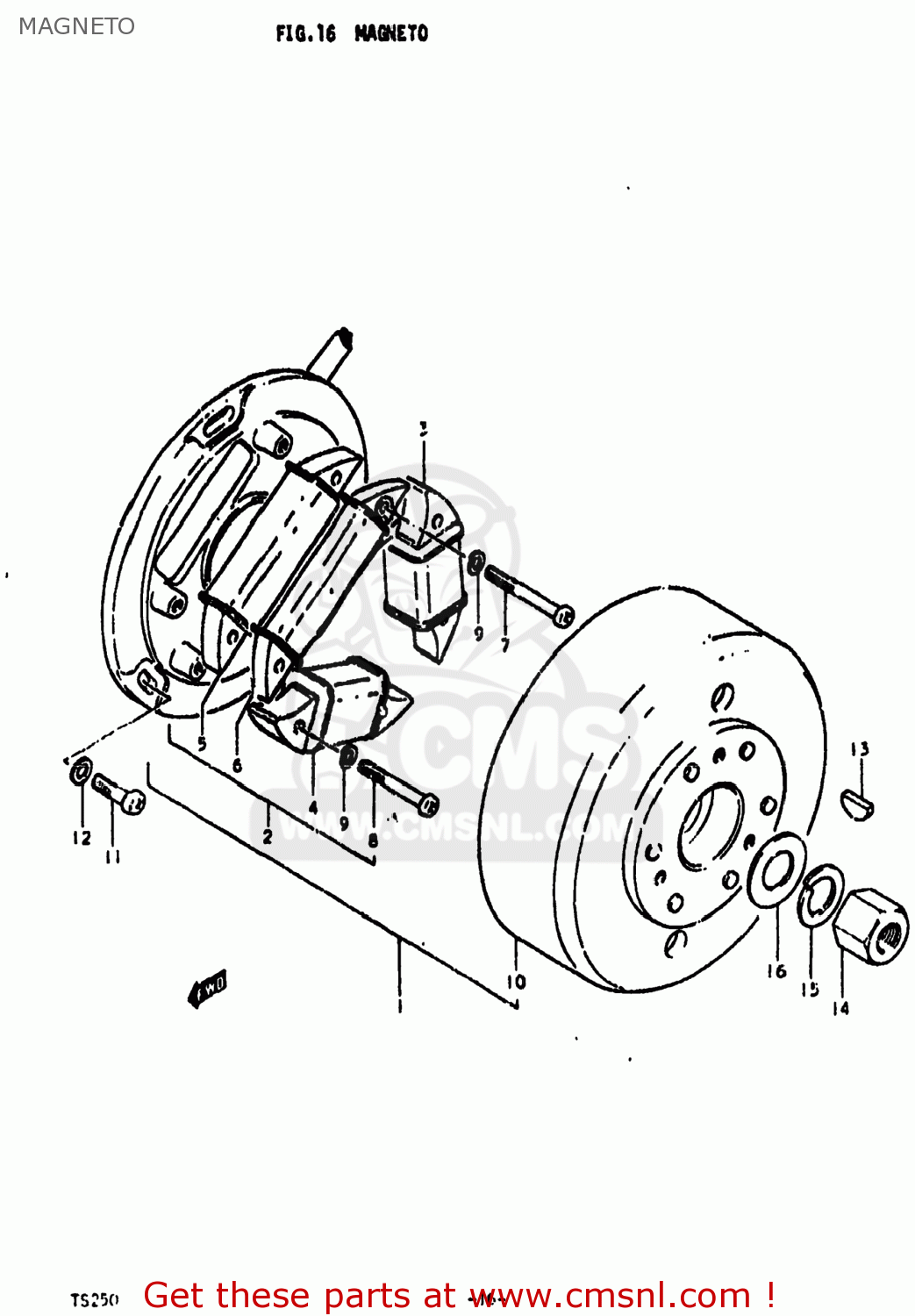

MAGNETO

ref

part #

description

quantity

1-1

3210030621
ref: 1-1
32101-30621

MAGNETO ASSEMBLY

€ 139.00

1-2

3210030625
ref: 1-2
32101-30626

MAGNETO ASSEMBLY

€ 382.50

2-1

3210130621
ref: 2-1

STATOR ASSEMBLY

€ 139.00

2-2

3210130624
ref: 2-2
32101-30626

STATOR ASSEMBLY

€ 289.50

3-1

3212029611
ref: 3-1

COIL,LIGHTING

€ 53.00

3-2

3212029612
ref: 3-2

COIL,CHARGE

€ 67.00

4-1

3213029611
ref: 4-1

COIL

€ 16.50

4-2

3213029612
ref: 4-2
32130-30620

COIL

€ 72.50

5

3214032020
ref: 5
32140-32021

COIL

€ 224.50

6

3215032020
ref: 6

COIL,PULSER

€ 210.50

7

0211105357
ref: 7
02112-05357

SCREW 5X35

€ 1.50

7

0211105357
ref: 7
02112-05357

SCREW 5X35

€ 1.50

8-1

0211205308
ref: 8-1
02112-0530A

SCREW

€ 1.50

8-2

0211105207
ref: 8-2
02112-05207

SCREW

€ 3.00

9

0832121058
ref: 9
08321-0105A

LOCK WASHER

€ 2.00

10-1

3210229612
ref: 10-1

ROTOR ASSEMBLY

€ 134.50

10-2

3210230621
ref: 10-2
32102-30626

ROTOR ASSEMBLY

€ 339.50

11-1

0211205168
ref: 11-1
02112-05167

SCREW

€ 2.50

11-2

0913905011
ref: 11-2

SCREW(5X14)

€ 3.00

12

0832221058
ref: 12
08322-01057

WASHER

€ 2.50

13

0834131049
ref: 13
09420-04008

KEY 4MM

€ 3.50

14

0914014011
ref: 14

NUT

€ 3.50

15

0832121148
ref: 15
08321-0114A

LOCK WASHER

€ 2.00

16

0916014015
ref: 16

WASHER(14X27X3)

€ 4.00

all assemblies
