CRANKCASE
TS250 1973 (K) USA (E03)

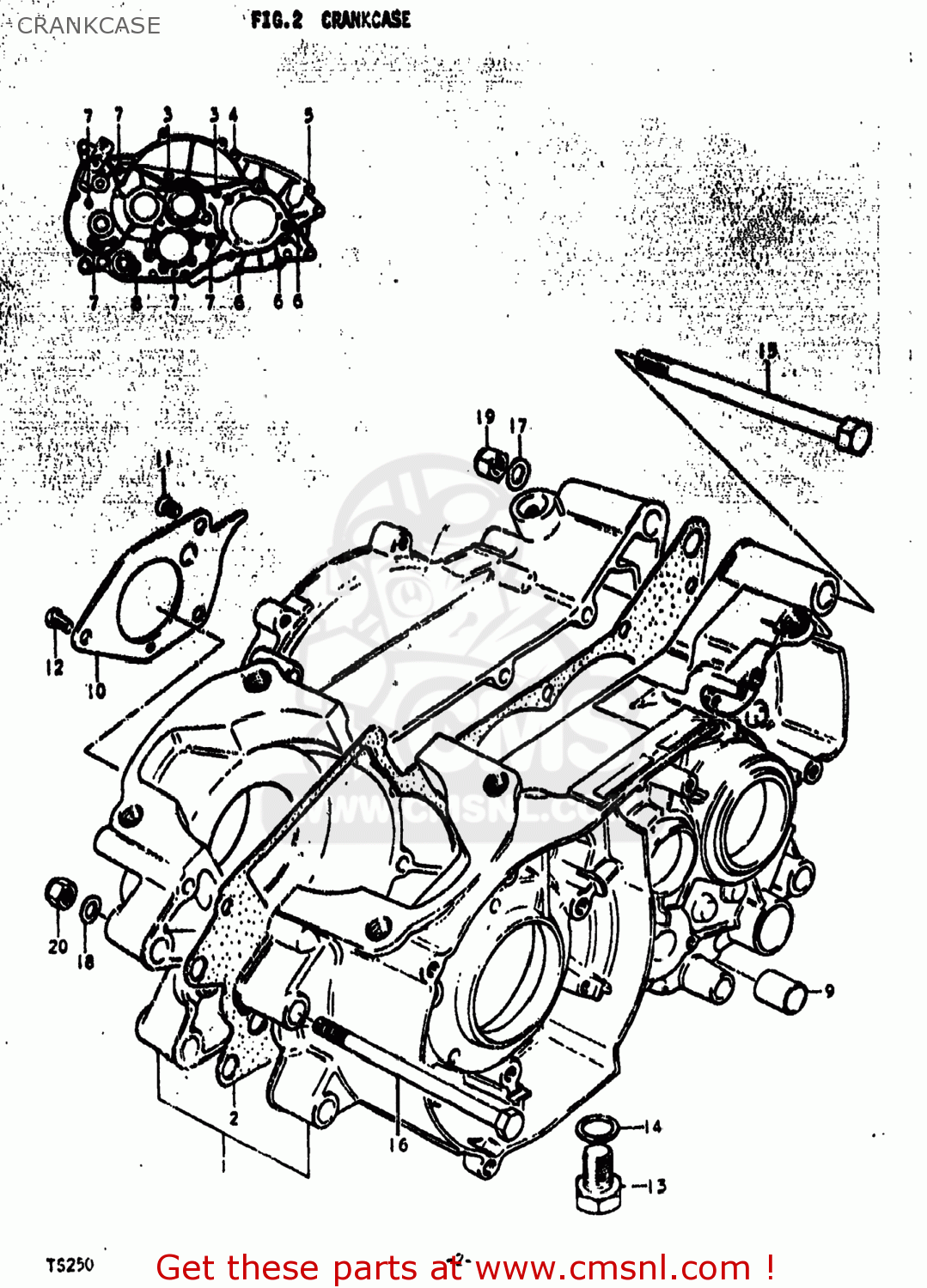

Crankcase diagram TS250 1973 (K) USA (E03)
CRANKCASE TS250 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130030802
ref: 1-1
11300-30862
CRANKCASE SET
€ 208.50
1-2
1130030832
ref: 1-2
11300-30862
CRANKCASE SET
€ 208.50
1-3
1130030861
ref: 1-3
11300-30862
CRANKCASE SET
€ 208.50
2
1148130000
ref: 2
11481-30001
GASKET,CRANKCASE (MCA)
€ 16.50
3
0212206758
ref: 3
SCREW
€ 2.50
4
0211206708
ref: 4
02112-06707
SCREW 6X70
€ 3.00
5
0211206657
ref: 5
SCREW
€ 2.00
6
0211206508
ref: 6
02112-06507
SCREW
€ 2.50
7
0211206458
ref: 7
02112-06457
SCREW (6X45)
€ 2.00
8
0211206358
ref: 8
02112-06357
SCREW (6X35)
€ 2.50
9
0920613001
ref: 9
04211-13189
PIN
€ 2.50
10
1252130001
ref: 10
PLATE,OIL RESERVOIR
€ 4.50
11
0212206168
ref: 11
02122-06167
SCREW
€ 2.00
12
0211206168
ref: 12
02112-06167
SCREW
€ 2.50
13
0924714007
ref: 13
09247-14025
PLUG
€ 3.50
14
0916814004
ref: 14
GASKET(14X19.2X2) (NAS)
€ 2.50
15
0910010060
ref: 15
09116-10032
BOLT 10X120
€ 3.50
16
0112208808
ref: 16
01500-0880B
HEXAGON BOLT 8X80
€ 3.50
17
0832211108
ref: 17
08322-01107
WASHER
€ 2.50
18
0832211088
ref: 18
08322-01087
WASHER
€ 2.00
19
0915910011
ref: 19
NUT
€ 3.00
20
0915908020
ref: 20
NUT
€ 2.50
