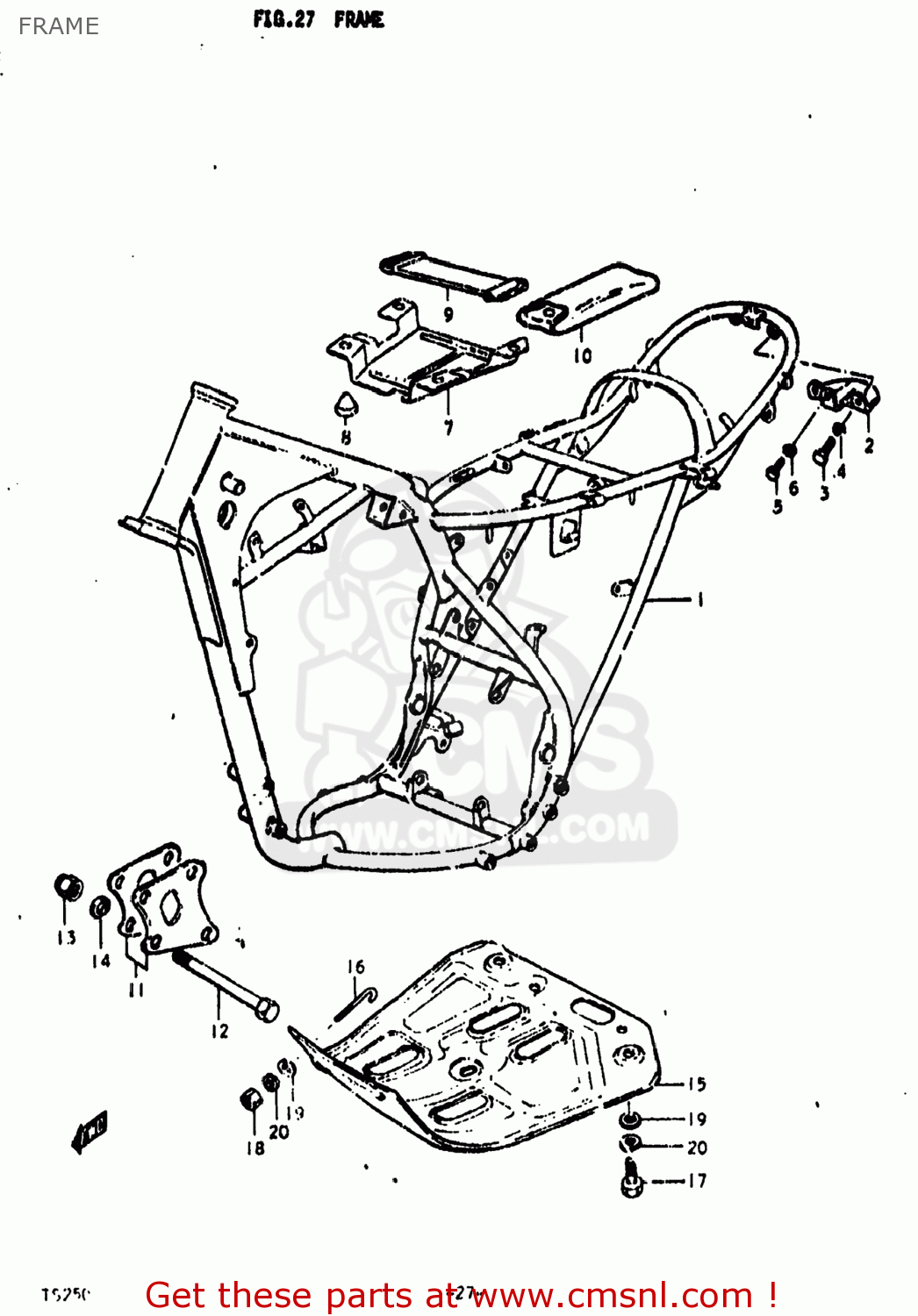

FRAME

ref

part #

description

quantity

1-1

4110030610019
ref: 1-1
41100-30702-019

FRAME

€ 204.00

1-2

4110030700019
ref: 1-2

FRAME

€ 204.00

1-3

4110030302019
ref: 1-3

FRAME

€ 235.00

1-3

4110030302019
ref: 1-3

FRAME

€ 235.00

2

4125530610
ref: 2

NO PRODUCT DESCRIPTION AVAILABLE

€ 4.00

3

0112208168
ref: 3
01500-0816B

BOLT

€ 2.00

4

0832121088
ref: 4
08321-01087

LOCK WASHER

€ 2.00

5

0111206128
ref: 5
01500-06127

BOLT

€ 2.00

6

0832121068
ref: 6
08321-01067

LOCK WASHER

€ 2.50

7

4155130000
ref: 7

HOLDER,TOOL

€ 4.00

8

0932106011
ref: 8

CUSHION

€ 2.00

9

0946200048
ref: 9
09462-00048-XC0

BAND

€ 10.50

10

0980000146
ref: 10
09800-21028

TOOL ASSY

€ 43.50

11

4159130001
ref: 11

PLATE,ENGINE MOUNTING

€ 17.00

12

0112208808
ref: 12
01500-0880B

HEXAGON BOLT 8X80

€ 3.50

13

0915908020
ref: 13

NUT

€ 2.50

14

0832211088
ref: 14
08322-01087

WASHER

€ 2.00

15-1

1191130000
ref: 15-1

PROTECTOR,ENGINE

€ 22.50

15-2

1191030000
ref: 15-2

GROMMET

€ 22.50

16

1192116400
ref: 16

BRACKET,ENGINE PROTECT

€ 4.50

17

0111206128
ref: 17
01500-06127

BOLT

€ 2.00

18

0831111068
ref: 18
08310-00067

NUT

€ 2.50

19

0832221068
ref: 19
08322-01067

WASHER

€ 2.00

20

0832121068
ref: 20
08321-01067

LOCK WASHER

€ 2.50
