CYLINDER
TS250 1973 (K) USA (E03)

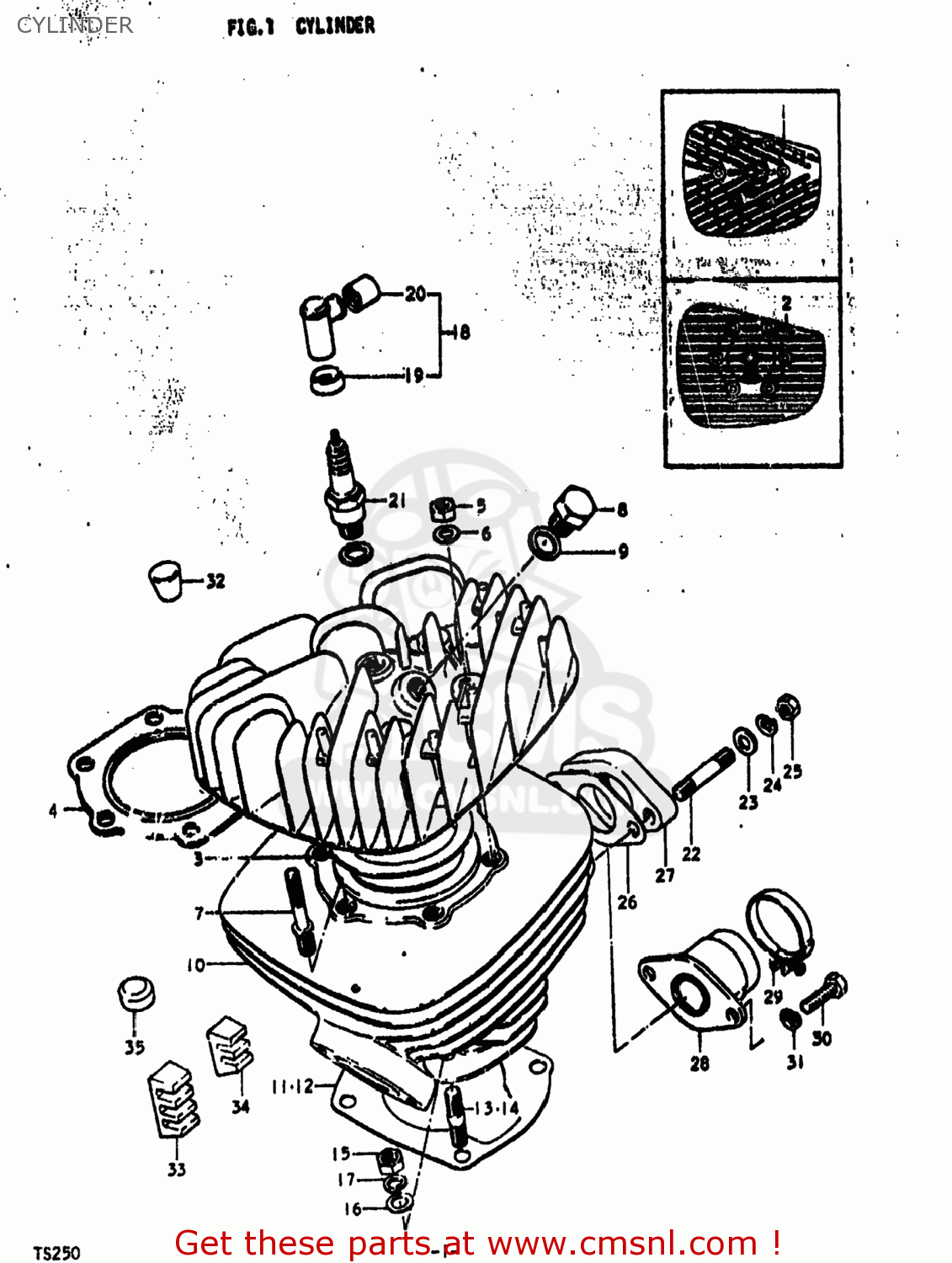

Cylinder diagram TS250 1973 (K) USA (E03)
CYLINDER TS250 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111130000
ref: 1
HEAD,CYLINDER
€ 0.00
2-1
1111130300
ref: 2-1
11111-30301
HEAD,CYLINDER
€ 148.50
2-2
1111130301
ref: 2-2
HEAD,CYLINDER
€ 148.50
2-3
1111130302
ref: 2-3
HEAD,CYLINDER
€ 68.50
3-1
1114116300
ref: 3-1
GASKET,CYLINDER HEAD (NAS)
€ 13.00
3-2
1114116400
ref: 3-2
11141-16300
GASKET,CYLINDER HEAD (MCA)
€ 13.00
4
1114130083
ref: 4
11141-30900
GASKET,CYLINDER HEAD (NAS)
€ 31.00
5
0914008005
ref: 5
09140-08017
NUT (8MM)
€ 1.50
6
0832221088
ref: 6
08322-01087
WASHER
€ 2.00
7
0910808018
ref: 7
BOLT,STUD
€ 4.00
8
0924714007
ref: 8
09247-14025
PLUG
€ 3.50
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
€ 2.50
10-1
1121030000
ref: 10-1
CYLINDER
€ 255.50
10-2
1121130001
ref: 10-2
CYLINDER
€ 482.00
11
1124130000
ref: 11
11241-30001
GASKET,CYLINDER (MCA)
€ 6.00
12
1124130011
ref: 12
GASKET,CYLINDER (MCA)
€ 4.00
13
0142110308
ref: 13
01421-1030A
STUD 10X30
€ 2.50
14
0142110608
ref: 14
01421-1060A
TAPBOUT
€ 18.00
15
0831212108
ref: 15
08310-00107
NUT
€ 2.50
16
0832211108
ref: 16
08322-01107
WASHER
€ 2.50
17
0832121108
ref: 17
08321-01107
LOCK WASHER
€ 2.00
18
3350069810
ref: 18
CAP,SPARK PLUG
€ 29.50
19
3354169010
ref: 19
SEAL,SPARK PLUG
€ 5.00
20
3354298000
ref: 20
33542-38B00
SEAL,SPARK PLU
€ 4.50
21-1
0948200089
ref: 21-1
09482-00117
SPARK PLUG B7ES
€ 5.00
21-2
0948200090
ref: 21-2
PLUG,SPARK(W22E)
€ 19.50
21-3
0948200092
ref: 21-3
09482-00247-111
PLUG,SPARK(W24ES)
€ 3.50
21-4
0948200029
ref: 21-4
09482-00091
SPARK PLUG
€ 3.00
21-5
0948200091
ref: 21-5
PLUG,SPARK
€ 3.00
22
0142108358
ref: 22
01421-0835A
STUD BOLT
€ 2.00
23
0832211088
ref: 23
08322-01087
WASHER
€ 2.00
24
0832121088
ref: 24
08321-01087
LOCK WASHER
€ 2.00
25
0831211088
ref: 25
08310-00087
NUT
€ 2.00
26
1312530000
ref: 26
GASKET,CARBURETOR (NAS)
€ 6.50
27
1312930000
ref: 27
INSULATOR,CARBURETOR
€ 8.50
28
1311030000
ref: 28
PIPE,INTAKE
€ 47.50
29
0940246306
ref: 29
09402-46208
CLAMP
€ 4.50
30
0111108208
ref: 30
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
31
0832121088
ref: 31
08321-01087
LOCK WASHER
€ 2.00
32
1115116400
ref: 32
PAD,CYLINDER HEAD
€ 8.00
33
1125116400
ref: 33
11261-16400
PAD,CYLINDER
€ 8.50
34
1126116400
ref: 34
PAD,CYLINDER
€ 8.50
35
1125238001
ref: 35
PAD,CYLINDER HEAD
€ 3.50
