CHAIN CASE

TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)

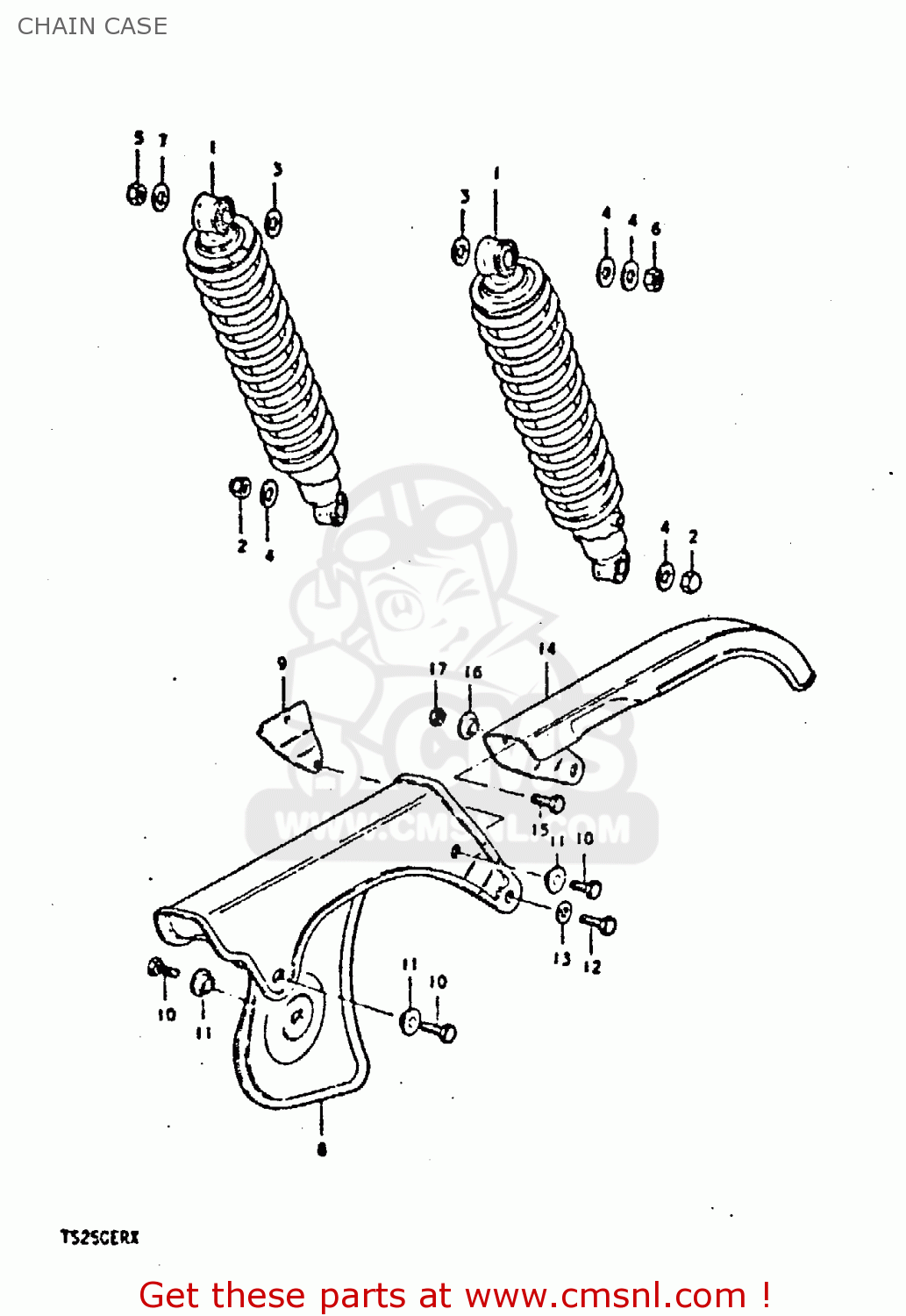

Chain case diagram TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)

CHAIN CASE TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)
CHAIN CASE TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)
CHAIN CASE TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
6210030900
ref: 1
ABSORBER ASSEMBLY,REAR SHOCK
€ 267.50
2
0831311108
ref: 2
NUT, LOWER LH
0831311108
€ 2.50
3
0832211128
ref: 3
WASHER
0832211128
€ 2.00
4
0916010001
ref: 4
WASHER
0916010001
€ 2.00
5
0831012128
ref: 5
NUT
0831012128
€ 3.00
6
0831011108
ref: 6
NUT
0831011108
€ 2.50
7
0916012012
ref: 7
WASHER (12.5X24X3.2)
0916012012
€ 2.50
8
6131130501019
ref: 8
CASE,CHAIN
6131130501019
€ 47.00
9
6138030500
ref: 9
REINFORCEMENT,CHAIN CASE
6138030500
€ 6.00
10
0910006011
ref: 10
BOLT(6X8)
0910006011
€ 2.50
11
0916906010
ref: 11
WASHER
0916906010
€ 3.00
12
0110706208
ref: 12
BOLT
0110706208
€ 2.00
13
0832221068
ref: 13
WASHER
0832221068
€ 2.00
14
NOTUSED
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
NOTUSED
ref: 15
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
NOTUSED
ref: 16
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
NOTUSED
ref: 17
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
