REAR WHEEL

TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)

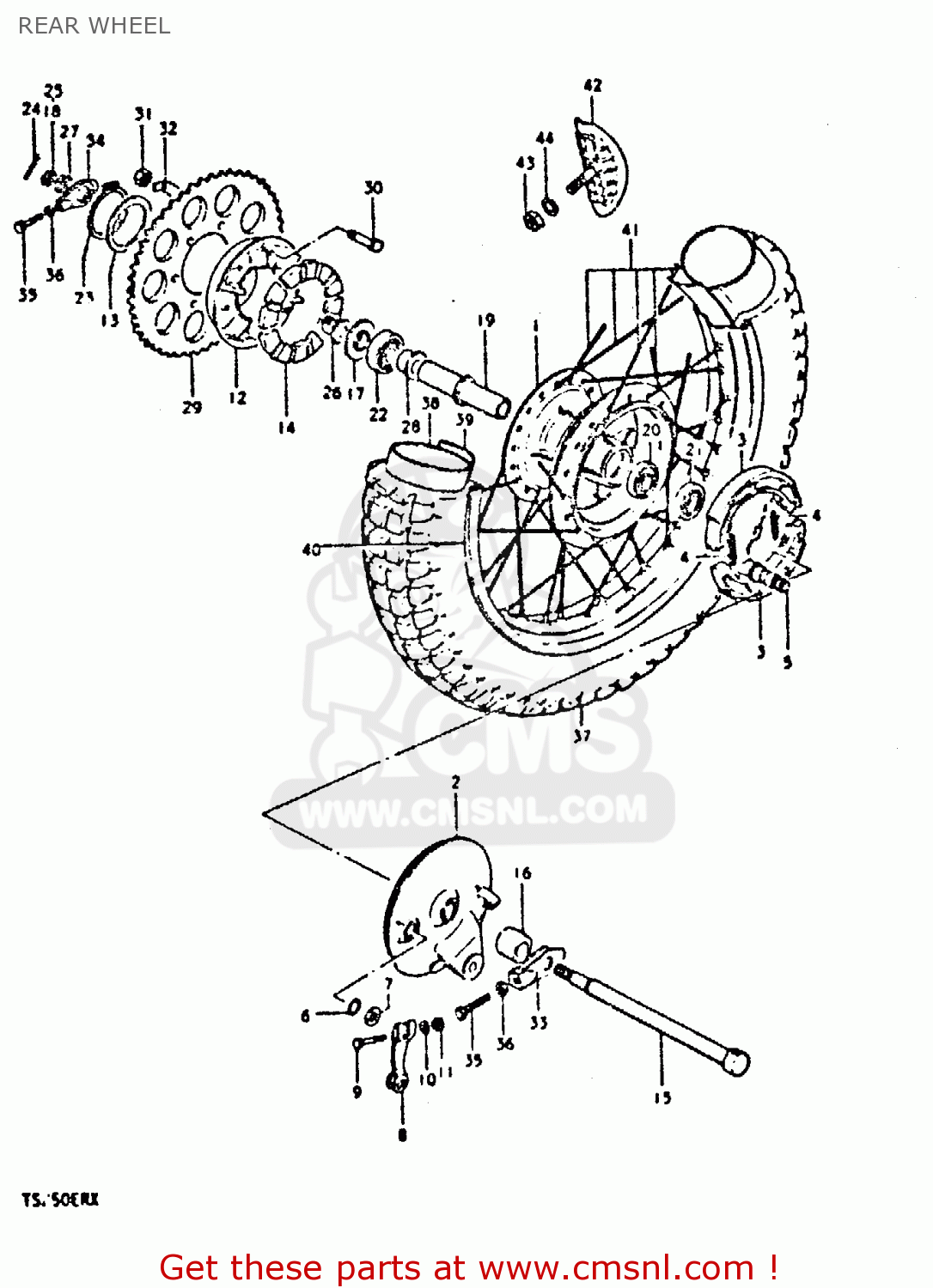

Rear wheel diagram TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)

REAR WHEEL TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)
REAR WHEEL TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)
REAR WHEEL TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
6411016500
ref: 1
DRUM,REAR HUB
€ 295.00
2
6421016501
ref: 2
PANEL,REAR HUB
6421016501
€ 49.50
3
5441032400
ref: 3
SHOE,BRAKE (MCA)
5441032400
€ 35.00
4
5542041100
ref: 4
SPRING
5542041100
€ 5.50
5
5444008003
ref: 5
CAM,FRONT BRAKE
5444008003
€ 19.00
6
0928015001
ref: 6
O-RING,BOSS
0928015001
€ 2.00
7
0916015001
ref: 7
WASHER (15X24X1.6)
0916015001
€ 2.50
8
6445139100
ref: 8
LEVER,RR BRAKE CAM
6445139100
€ 48.00
9-1
0110706408
ref: 9-1
MODEL T
BOLT 6X40
0110706408
€ 2.00
9-2
0910006078
ref: 9-2
MODEL X
BOLT(6X33)
0910006078
€ 2.50
10
0832221068
ref: 10
WASHER
0832221068
€ 2.00
11
0831011068
ref: 11
NUT
0831011068
€ 2.50
12
6461016501
ref: 12
DRUM,REAR SPROCKET MOUNT
€ 100.50
13
0916062001
ref: 13
WASHER(62.5X77X1.6)
0916062001
€ 4.00
14
6465016520
ref: 14
ABSORBER,RR WHEEL HUB SHOCK
6465016520
€ 26.50
15
6471116500
ref: 15
AXLE,REAR
6471116500
€ 41.00
16
0918015014
ref: 16
SPACER (15.2X26X20)
0918015014
€ 9.00
17
6475030000
ref: 17
SPACER,REAR AXLE,RIGHT
6475030000
€ 8.50
18
0914114001
ref: 18
NUT
0914114001
€ 4.50
19
6473030000
ref: 19
SPACER,REAR HUB BEARING
6473030000
€ 10.50
20
0811363020
ref: 20
BEARING, RH
0811363020
€ 17.50
21
0928426001
ref: 21
OIL SEAL
0928426001
€ 6.00
22
0812363047
ref: 22
BEARING
0812363047
€ 14.00
23
0833111628
ref: 23
CIRCLIP
0833111628
€ 4.00
24
0411130408
ref: 24
PIN 30X40
€ 1.50
25
NOTUSED
ref: 25
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
26
6479130000
ref: 26
SPACER,REAR AXLE,LEFT
6479130000
€ 17.00
27
0914024002
ref: 27
NUT
0914024002
€ 8.50
28
6473330000
ref: 28
SPACER,REAR HUB BEARING
6473330000
€ 16.50
29
6451130700
ref: 29
SPROCKET,REAR
6451130700
€ 71.50
30
0910508001
ref: 30
BOLT(8X33.5)
0910508001
€ 2.50
31
0831012088
ref: 31
NUT
0831012088
€ 2.00
32
0916908011
ref: 32
WASHER
0916908011
€ 2.50
33
6141030003
ref: 33
ADJUSTER,CHAIN,R
6141030003
€ 18.50
34
6142030002
ref: 34
ADJUSTER,CHAIN,L
6142030002
€ 13.50
35
0910408006
ref: 35
BOLT
0910408006
€ 3.00
36
0831012088
ref: 36
NUT
0831012088
€ 2.00
37
6510030901
ref: 37
IRC
TIRE
€ 0.00
38-1
6520049015
ref: 38-1
IRC, MODEL T
TUBE,INNER
€ 39.00
38-2
6520045030
ref: 38-2
BS, MODEL X
TUBE ASSEMBLY,WHEEL,INNER
€ 39.00
39-1
6526115010
ref: 39-1
MODEL T
PROTECTOR,WHEEL,INNER
€ 3.50
39-2
6526115030
ref: 39-2
MODEL X
PROTECTOR,WHEEL,INNER
€ 3.50
40
6531130900
ref: 40
RIM,REAR WHEEL (2.15X18)
€ 0.00
41
6532016520
ref: 41
SPOKE SET,RR
6532016520
€ 54.00
42
6527030001
ref: 42
STOPPER,BEAD
€ 30.50
43
0831012088
ref: 43
NUT
0831012088
€ 2.00
44
0832211088
ref: 44
WASHER
0832211088
€ 2.00
