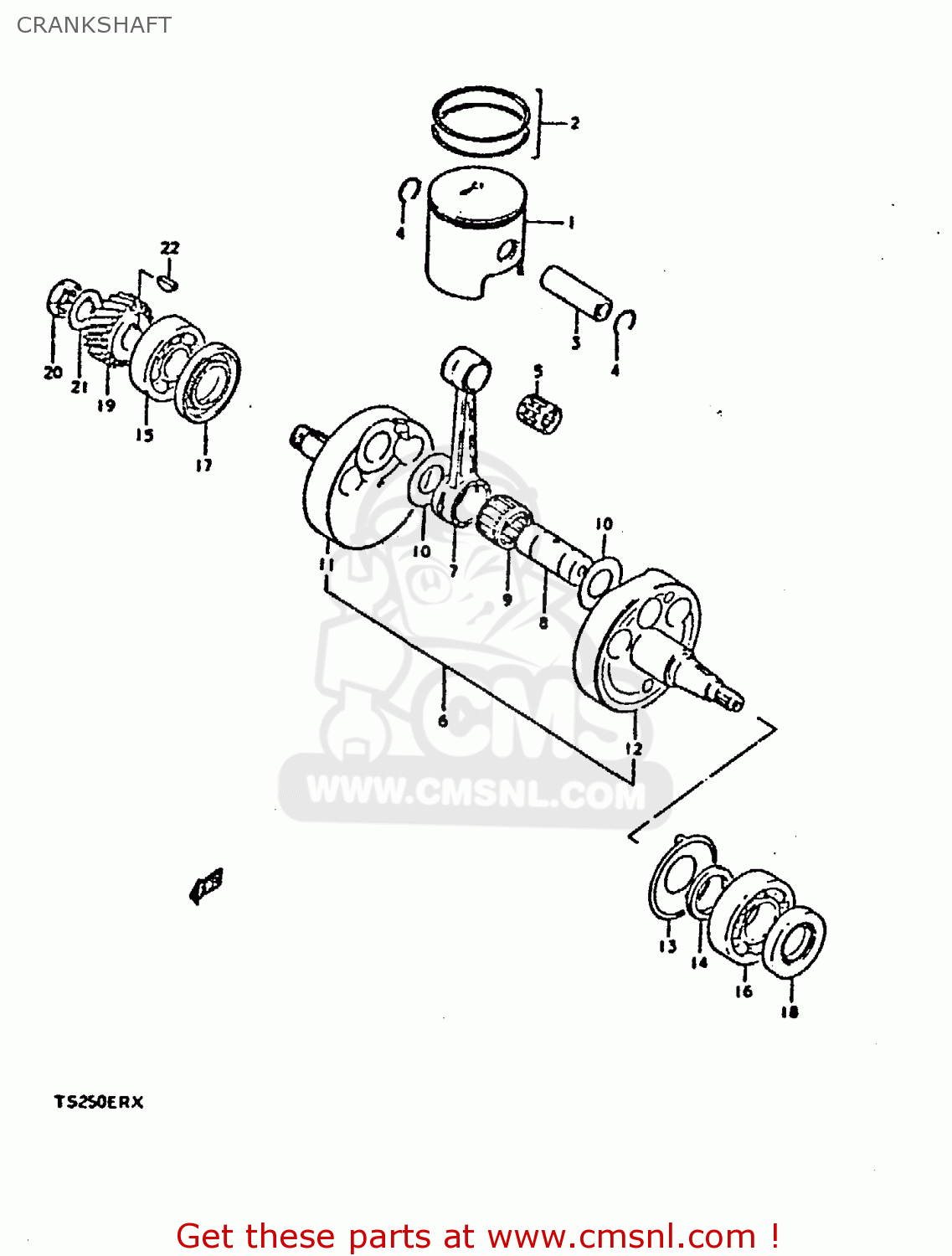

CRANKSHAFT

ref

part #

description

quantity

1-1

1211030510
ref: 1-1

PISTON

€ 94.50

1-2

1211030510050
ref: 1-2

PISTON

€ 97.00

1-3

1211030510100
ref: 1-3

PISTON

€ 92.00

2-1

1214030010
ref: 2-1

RING SET,PISTON

€ 70.00

2-2

1214030010050
ref: 2-2

RING SET,PISTON(OS:0.50)

€ 59.00

2-3

1214030010100
ref: 2-3

RING SET,PISTON (OS:1.0)

€ 29.00

3

1215192201
ref: 3

PIN,PISTON (18MM)

€ 14.00

4

0938118002A
ref: 4

CIRCLIP,PISTON PIN

€ 1.50

5

0926318009
ref: 5

BEARING

€ 22.50

6

1220030500
ref: 6

CRANKSHAFT ASSEMBLY

€ 584.00

7

1216116400
ref: 7

ROD,CONNECTING

€ 107.50

8

1221116400
ref: 8

PIN,CRANK

€ 56.50

9

0926325008
ref: 9

BEARING(25X31X20)

€ 17.00

10

0916025024
ref: 10

WASHER(25X40X1)

€ 7.00

11

1222130500
ref: 11

CRANKSHAFT,RIGHT

€ 0.00

12

1226130500
ref: 12

CRANKSHAFT,LEFT

€ 0.00

13

1251130002
ref: 13

PLATE,CRANKSHAFT OIL GUIDE

€ 5.50

14

0918030012
ref: 14

SPACER (30X45X4.8)

€ 4.50

15

0811363050
ref: 15

BEARING

€ 21.50

16

0926930006
ref: 16

BEARING(30X72X19)

€ 48.00

17

0928335004
ref: 17

SEAL,OIL(35X62X9)

€ 19.50

18

0928330011
ref: 18

OIL SEAL

€ 32.50

19

2111130000
ref: 19

GEAR,PRIMARY DRIVE

€ 47.00

20

0914018002
ref: 20

NUT

€ 3.50

21

0916018001
ref: 21

WASHER

€ 0.00

22

0834131059
ref: 22

KEY

€ 3.00
