REFLEX REFLECTOR

TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)

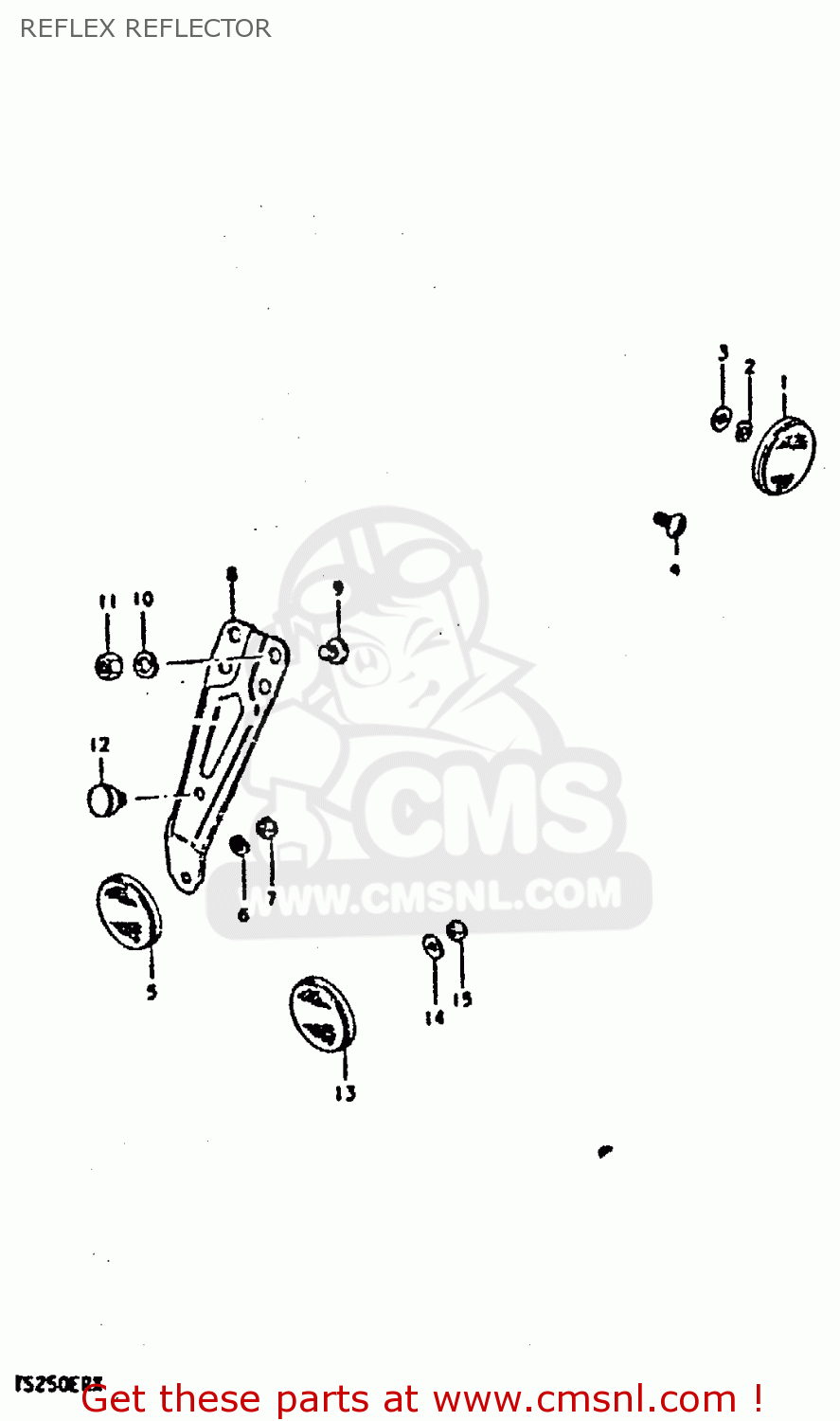

Reflex reflector diagram TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)

REFLEX REFLECTOR TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)

REFLEX REFLECTOR TS250ER 1980 (T) (01 02 E04 E09 E16 E17 E18 E21 E22 E24 E30 E39)

prices are in EUR

ref

part #

description

quantity

1

3595030910
ref: 1

REFLEX REFLECTOR,FR

€ 43.50

2

0832121058
ref: 2

LOCK WASHER

€ 2.00

3

0832221058
ref: 3

WASHER

€ 2.50

4

NOTUSED
ref: 4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5

3597030910
ref: 5

REFLEX REFLECTOR,RR

€ 47.50

6

0832221058
ref: 6

WASHER

€ 2.50

7

0831011058
ref: 7

NUT

€ 2.50

8-1

NOTUSED
ref: 8-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

8-2

3597448520
ref: 8-2
E2

BRACKET

€ 6.00

9

0214206108
ref: 9

SCREW

€ 2.00

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

0831011068
ref: 11

NUT

€ 2.50

12

0932105010
ref: 12

CUSHION

€ 3.50

13

NOTUSED
ref: 13

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

14

NOTUSED
ref: 14

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

NOTUSED
ref: 15

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00
