HEADLAMP (E2,E4,E15,E16,E17,E18,E21,E22,E25)

TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

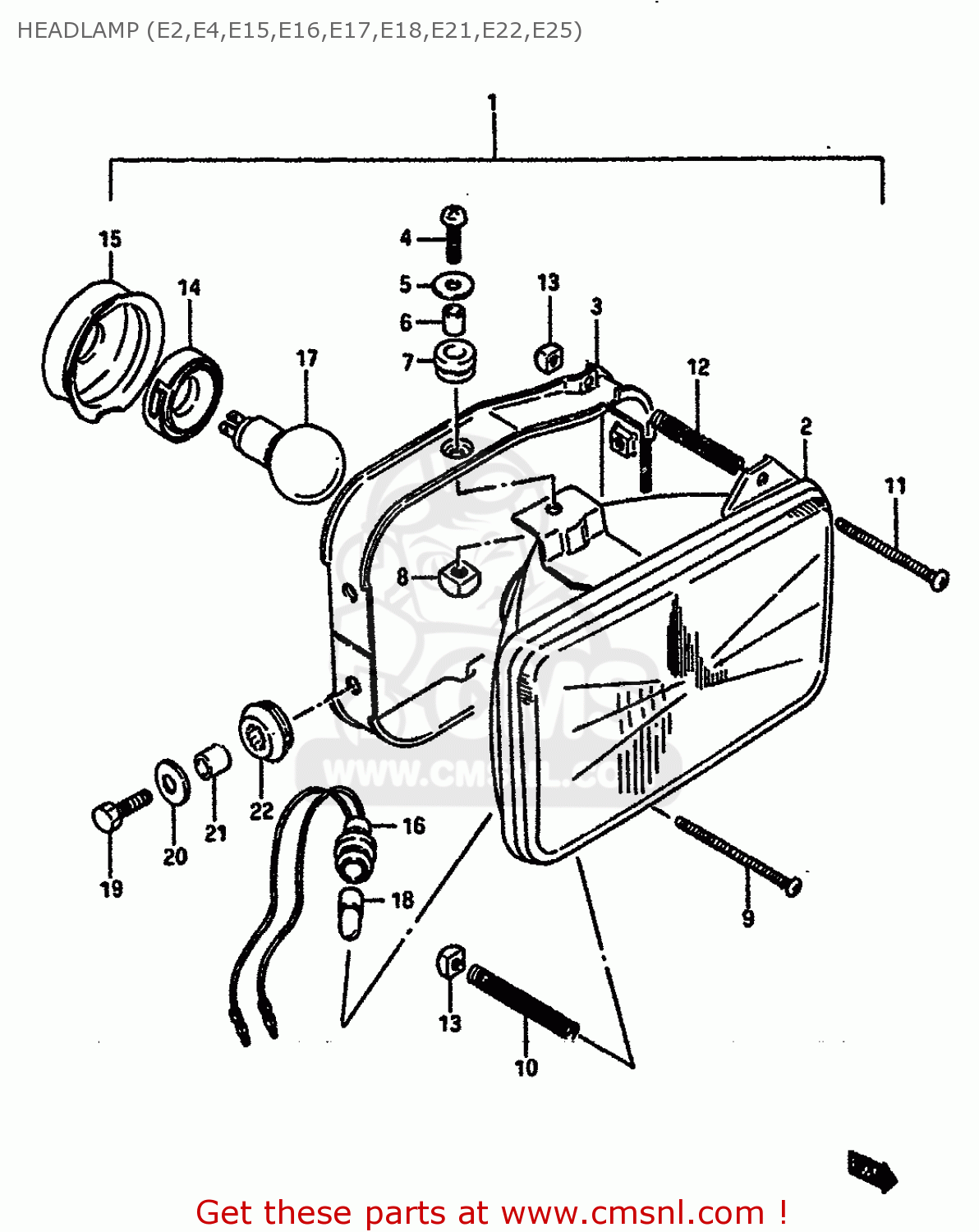

Headlamp (e2,e4,e15,e16,e17,e18,e21,e22,e25) diagram TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

HEADLAMP (E2,E4,E15,E16,E17,E18,E21,E22,E25) TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
HEADLAMP (E2,E4,E15,E16,E17,E18,E21,E22,E25) TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
HEADLAMP (E2,E4,E15,E16,E17,E18,E21,E22,E25) TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1-1
3510013A22999
ref: 1-1
E2
HEADLAMP ASSY
€ 159.50
1-2
3510013A52999
ref: 1-2
E4,E15,E16,E17,E18,E
HEADLAMP ASSY
3510013A52999
€ 141.00
2-1
3512113A21
ref: 2-1
E2
LAMP UNIT
3512113A21
€ 94.50
2-2
3512113A51
ref: 2-2
E4,E15,E16,E17,E18,E
LAMP UNIT
€ 81.50
3
3514114A00
ref: 3
HOUSING
3514114A00
€ 31.00
4
0912505102
ref: 4
SCREW(5X14)
0912505102
€ 2.50
5
3513845230
ref: 5
WASHER
3513845230
€ 2.00
6
3513314A00
ref: 6
SPACER
3513314A00
€ 3.50
7
3513945230
ref: 7
CUSHION
3513945230
€ 1.50
8
3513545900
ref: 8
NUT
3513545900
€ 2.50
9
3515149200
ref: 9
SCREW,HEADLAMP ADJUST
3515149200
€ 4.00
10
3515449200
ref: 10
SPRING
3515449200
€ 3.50
11
3515131300
ref: 11
SCREW,HEADLAMP ADJUST
3515131300
€ 3.00
12
3515431300
ref: 12
SPRING
3515431300
€ 2.00
13
3513545600
ref: 13
NUT
3513545600
€ 3.00
14
3513605300
ref: 14
HOLDER,BULB
3513605300
€ 9.50
15
3517305300
ref: 15
COVER,SOCKET
3517305300
€ 9.00
16
3611845900
ref: 16
SOCKET,PARKING
3611845900
€ 13.00
17-1
0947112048
ref: 17-1
EXECUTED LOCALLY
BULB(12V45/40W)
0947112048
€ 7.50
17-2
0947112049
ref: 17-2
E4,EXECUTED LOCALLY
BULB (12V, 45/40W)
€ 0.00
18
0947112063
ref: 18
EXECUTED LOCALLY
BULB(12V4W)
0947112063
€ 6.00
19
0110706207
ref: 19
BOLT
0110706207
€ 2.00
20
0916006027
ref: 20
WASHER (6.5X20X1.2)
0916006027
€ 2.00
21
0918006011
ref: 21
SPACER (6.1X9X9)
0918006011
€ 2.00
22
0932009018
ref: 22
CUSHION
0932009018
€ 2.00
