STAND

TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

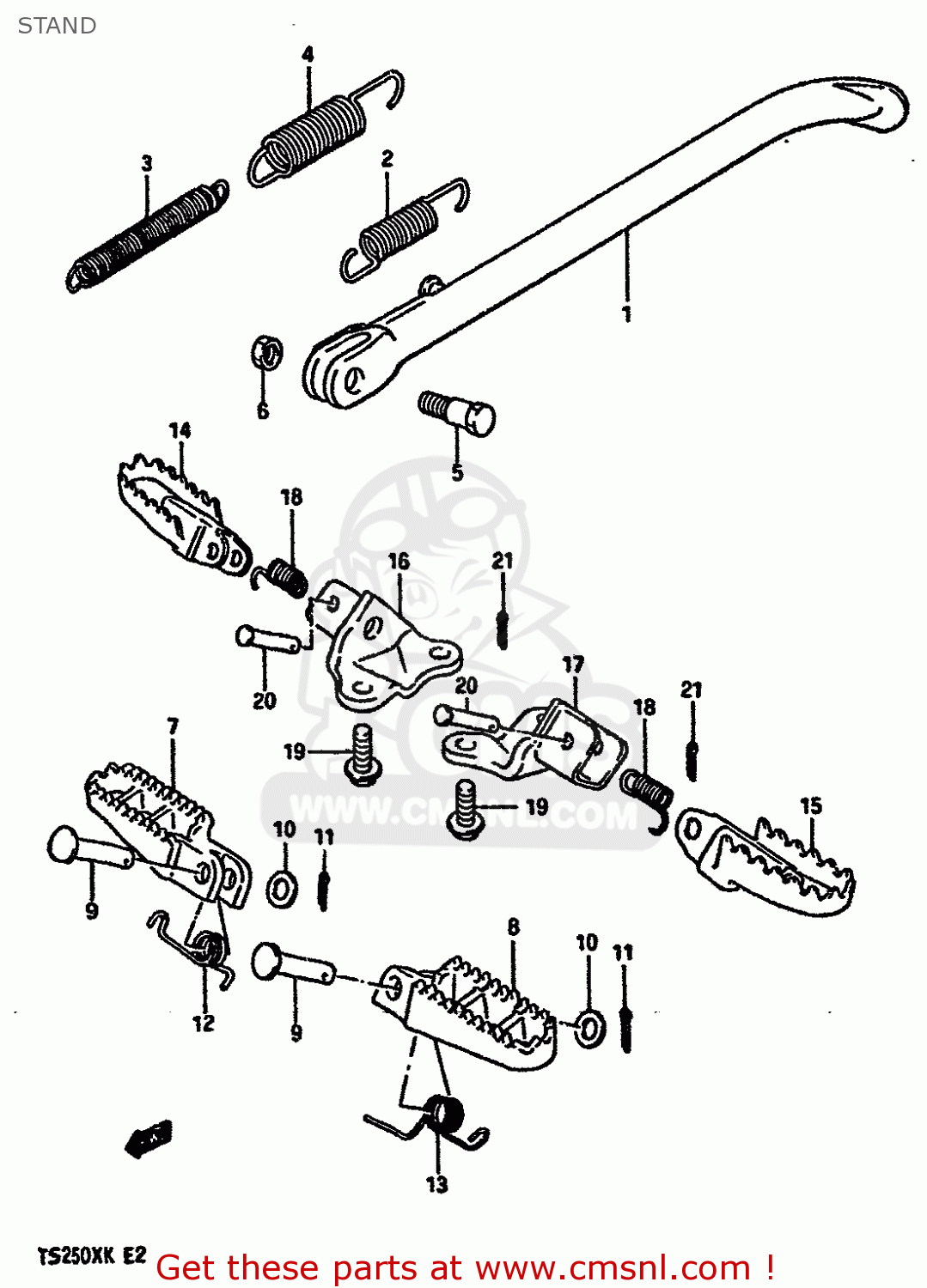

Stand diagram TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

STAND TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
STAND TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
STAND TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1-1
4231013A0019F
ref: 1-1
MODEL E,FOR 21C,163
STAND,PROP (BLUE)
€ 25.50
1-2
4231013A00019
ref: 1-2
MODEL E,FOR 14C
STAND,PROP (BLACK)
€ 25.50
1-3
4231013A1019F
ref: 1-3
MODEL E E18,FOR 21C,
STAND,PROP (BLUE)
€ 0.00
1-4
4231013A10019
ref: 1-4
MODEL E E18,FOR 14C
STAND,PROP (BLACK)
€ 0.00
1-5
4231013A2019F
ref: 1-5
MODEL G,FOR 21C,163
STAND,PROP (BLUE)
€ 25.50
1-6
4231013A20019
ref: 1-6
MODEL G,FOR 14C
STAND,PROP (BLACK)
€ 25.50
1-7
4231013A3019F
ref: 1-7
MODEL G E2,E18,E22 F
STAND,PROP (BLUE)
€ 30.00
1-8
4231013A30019
ref: 1-8
MODEL G E2,E18,E22,F
STAND,PROP (BLACK)
€ 30.00
2-1
0944317007
ref: 2-1
SPRING
0944317007
€ 4.50
2-2
0944315007
ref: 2-2
E18,MODEL G E2 MODEL
SPRING
€ 6.00
3
0944314014
ref: 3
E22
SPRING
0944314014
€ 5.50
4
0944322001
ref: 4
E22
SPRING, OUTER
0944322001
€ 4.50
5
0911110019
ref: 5
BOLT L:30
0911110019
€ 4.50
6
0831022107
ref: 6
NUT
0831022107
€ 2.50
7-1
435511460019F
ref: 7-1
FOR 21C,163,14L,25Y,
FOOTREST
435511460019F
€ 31.00
7-2
4355114600019
ref: 7-2
MODEL G FOR 14C
RUBBER,FOOTREST
€ 31.00
8-1
435614040119F
ref: 8-1
FOR 21C,163,14L,25Y,
FOOTREST
€ 24.50
8-2
4356140401019
ref: 8-2
MODEL G FOR 14C
FOOTREST,FR,L
4356140401019
€ 24.50
9
0920008035
ref: 9
PIN
0920008035
€ 6.50
10
0832211088
ref: 10
WASHER
0832211088
€ 2.00
11
0411120208
ref: 11
PIN 20X20
0411120208
€ 1.50
12
4358113A00
ref: 12
SPRING,FRONT FOOTREST RH
€ 5.00
13
4358213A00
ref: 13
SPRING,FRONT FOOTREST LH
4358213A00
€ 4.50
14-1
4361013A01
ref: 14-1
MODEL E
BAR,PILLION FFOOTREST RH
€ 19.00
14-2
4361013A0213L
ref: 14-2
MODEL G/H/J/K
BAR,PILLION RH (SILVER)
€ 19.00
15-1
4371013A01
ref: 15-1
MODEL E
BAR,PILLION FOOTREST LH
€ 18.00
15-2
4371013A0213L
ref: 15-2
MODEL G/H/J/K
BAR,PILLION LH (SILVER)
4371013A0213L
€ 18.00
16-1
4362013A0113L
ref: 16-1
MODEL E
HOLDER,PILLION RH (SILVER)
€ 18.00
16-2
4362013A0213L
ref: 16-2
MODEL G/H/J/K
HOLDER,PILLION FOOTREST,R
4362013A0213L
€ 18.00
17-1
4363013A0113L
ref: 17-1
MODEL E
HOLDER,PILLION LH (SILVER)
€ 19.50
17-2
4363013A0213L
ref: 17-2
MODEL G/H/J/K
HOLDER,PILLION LH (SILVER)
€ 19.50
18
0944309029
ref: 18
SPRING
€ 4.50
19
0151708208
ref: 19
BOLT
€ 3.00
20
0920006010
ref: 20
PIN
0920006010
€ 2.50
21
0411120208
ref: 21
PIN 20X20
0411120208
€ 1.50
