SPEEDOMETER

TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

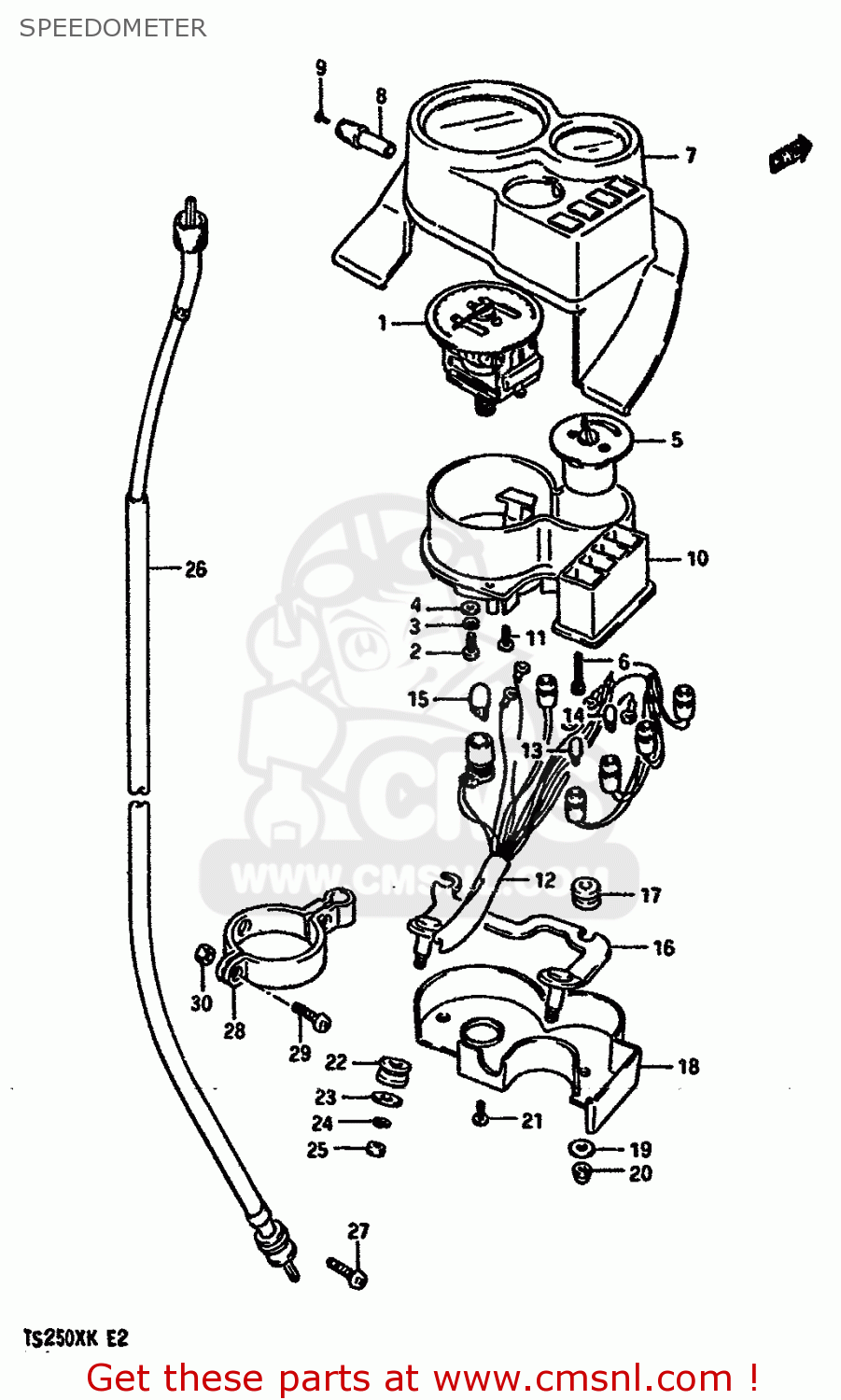

Speedometer diagram TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

SPEEDOMETER TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
SPEEDOMETER TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
SPEEDOMETER TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1-1
3412013A10
ref: 1-1
SPEEDOMETER (KILO)
€ 183.00
1-2
3412013A20
ref: 1-2
SPEEDOMETER (MILE/KILO)
3412013A20
€ 181.50
2
0211204126
ref: 2
SCREW
€ 1.50
3
0832121046
ref: 3
LOCK WASHER
0832121046
€ 2.00
4
0832221046
ref: 4
WASHER
€ 5.00
5
3442013A00
ref: 5
TEMPERATURE METER
€ 94.00
6
3438309400
ref: 6
SCREW(3X22)
3438309400
€ 2.50
7-1
3415013A11
ref: 7-1
HOOD,METER
€ 54.00
7-2
3415013A70
ref: 7-2
E17
HOOD,METER
€ 0.00
8
3498013A00
ref: 8
KNOB,TRIP
€ 2.00
9
3498113A00
ref: 9
ROTOR,SPEED
3498113A00
€ 2.00
10
3411113A00
ref: 10
CASE,METER
€ 48.00
11
0354103126
ref: 11
SCREW
€ 0.00
12
3417313A10
ref: 12
SOCKET
€ 0.00
13
0947112103
ref: 13
BULB(12V3W,T6.5)
0947112103
€ 2.50
14
0947112108
ref: 14
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
15
0947112028
ref: 15
BULB(12V3.4W,T10)
0947112028
€ 3.50
16
03495013A00
ref: 16
BRACKET,METER
€ 0.00
17
3418945410
ref: 17
CUSHION,METER
3418945410
€ 4.00
18
3415213A00
ref: 18
COVER,LOWER
3415213A00
€ 20.50
19
3418145410
ref: 19
WASHER,METER
3418145410
€ 2.00
20
0831311055
ref: 20
NUT
0831311055
€ 2.00
21
0354103125
ref: 21
SCREW
€ 0.00
22
3495615100
ref: 22
CUSHION
3495615100
€ 4.00
23
09160060A6
ref: 23
FROM 09160-06006
WASHER
€ 2.00
24
0832121064
ref: 24
WASHER,LOCK
0832121064
€ 2.00
25
0831011065
ref: 25
NUT
€ 2.00
26
3491013A01
ref: 26
CABLE ASSY,SPEEDOMETER
3491013A01
€ 87.50
27
0211205165
ref: 27
SCREW
0211205165
€ 2.00
28
3493813A00
ref: 28
CLAMP,METER CABLE
€ 8.50
29
0211205125
ref: 29
SCREW
0211205125
€ 1.50
30
0831012055
ref: 30
NUT ,5MM
0831012055
€ 2.50
