MAGNETO

TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

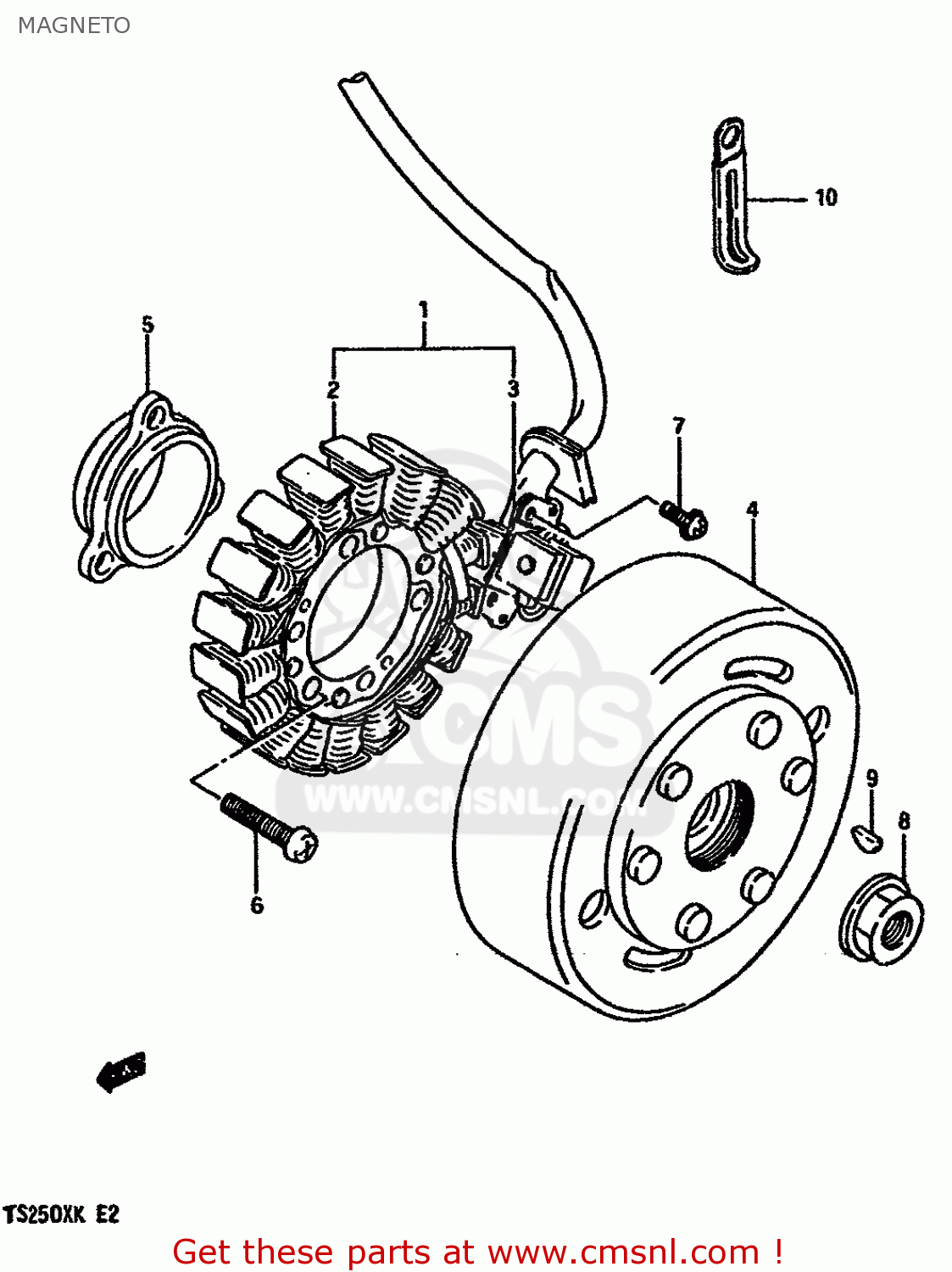

Magneto diagram TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

MAGNETO TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

MAGNETO TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

3210113A20
ref: 1
FROM 32101-13A00

STATOR ASSY

€ 502.50

2

3212013A00
ref: 2
MODEL E/G/H

ARMATURE ASSY

€ 299.50

3

3215013A00
ref: 3

SENSOR,TIMING

€ 54.00

4-1

3210213A00
ref: 4-1
MODEL E

ROTOR

€ 366.50

4-2

3210213A10
ref: 4-2
MODEL G/H

ROTOR

€ 379.00

4-3

3210213A20
ref: 4-3
MODEL J/K

ROTOR

€ 379.00

5

3217013A01
ref: 5

SPACER

€ 0.00

6-1

0211206306
ref: 6-1
MODEL E/G/H

SCREW,6X30

€ 2.50

6-2

0211206308
ref: 6-2
MODEL J/K

SCREW 6X30

€ 2.50

7-1

0215204126
ref: 7-1
MODEL E/G/H

SCREW

€ 1.50

7-2

0215204128
ref: 7-2
MODEL J/K

SCREW

€ 2.00

8-1

0831616126
ref: 8-1
MODEL E/G/H

NUT

€ 2.00

8-2

0831616128
ref: 8-2
MODEL J/K

NUT

€ 2.50

9

0834131049
ref: 9

KEY 4MM

€ 3.50

10-1

0940406422
ref: 10-1
MODEL E/G/H

CLAMP

€ 2.50

10-2

0940406424
ref: 10-2
MODEL J/K

CLAMP

€ 2.00
