REAR SWINGING ARM (E15,E16,E17,E18,E22,E24)

TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

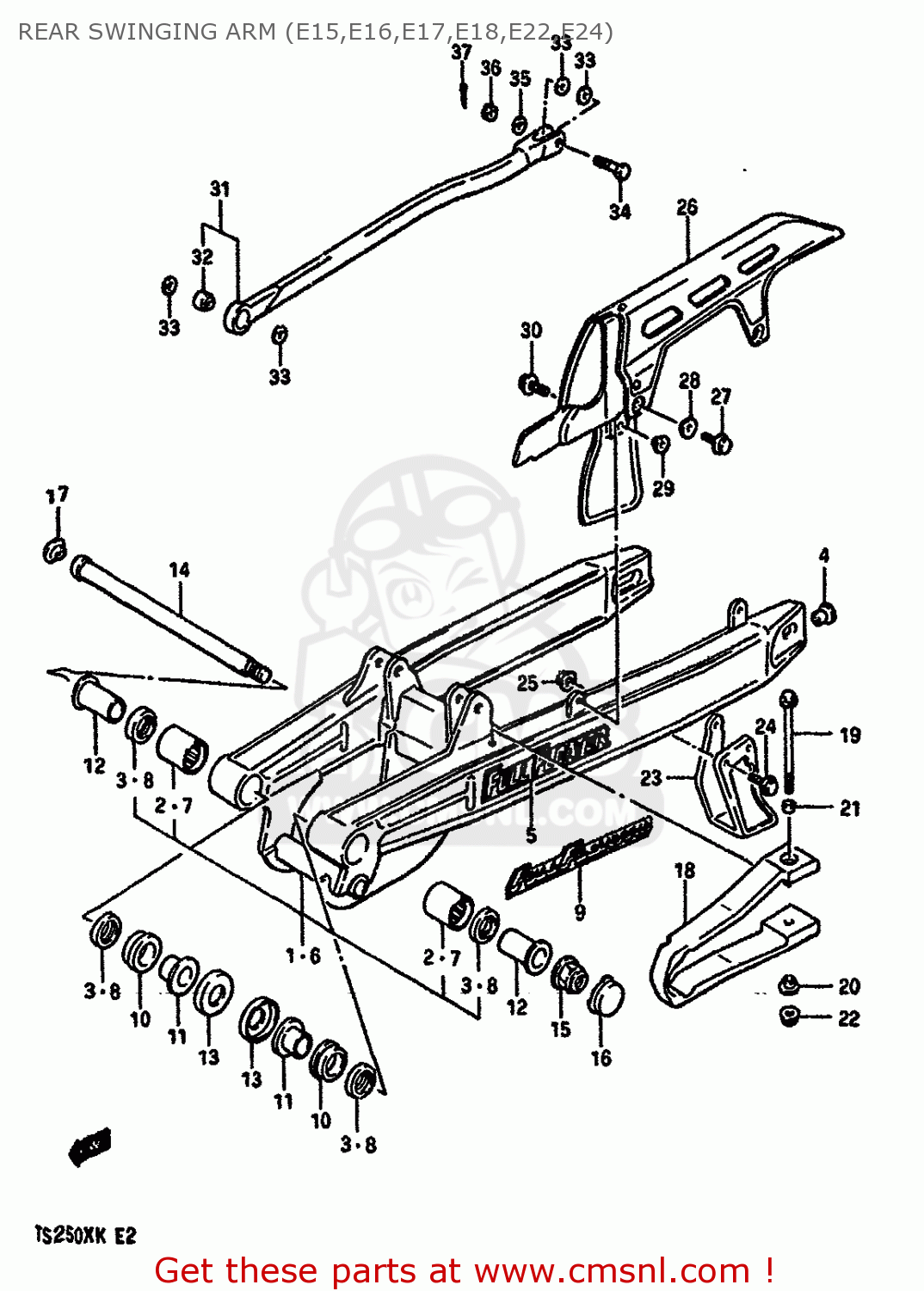

Rear swinging arm (e15,e16,e17,e18,e22,e24) diagram TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)

REAR SWINGING ARM (E15,E16,E17,E18,E22,E24) TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
REAR SWINGING ARM (E15,E16,E17,E18,E22,E24) TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
REAR SWINGING ARM (E15,E16,E17,E18,E22,E24) TS250X 1987 (H) (E01 E02 E15 E16 E17 E21 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
6100013A02
ref: 1
MODEL E/G
SWINGING ARM ASSY,REAR
€ 565.50
2
0926320041
ref: 2
BEARING(20X27X20)
0926320041
€ 15.00
3
0928520005
ref: 3
OIL SEAL
0928520005
€ 5.00
4
6143333400
ref: 4
SUPPORT
€ 2.50
5
683812092097J
ref: 5
EMBLEM
€ 0.00
6
6100013A31
ref: 6
MODEL H/J/K
SWINGING ARM ASSY,REAR
€ 565.50
7
0926320041
ref: 7
BEARING(20X27X20)
0926320041
€ 15.00
8
0928520005
ref: 8
OIL SEAL
0928520005
€ 5.00
9
683810341097J
ref: 9
EMBLEM,SWING ARM
683810341097J
€ 7.00
10
6126140402
ref: 10
BUSHING,REAR SWING ARM PIVOT
6126140402
€ 26.00
11
6125214100
ref: 11
SPACER,RR SWGARM PIVOT INNER
6125214100
€ 12.50
12
6125114100
ref: 12
SPACER,RR SWGARM PIVOT
6125114100
€ 16.00
13
6126240400
ref: 13
COVER,RR SWGARM DUST SEAL
6126240400
€ 4.00
14
6121113A00
ref: 14
SHAFT
6121113A00
€ 27.00
15
0831931148
ref: 15
NUT
0831931148
€ 9.00
16-1
6122213A00019
ref: 16-1
MODEL E/G
CAP,PIVOT
6122213A00019
€ 4.50
16-2
6122213A0019F
ref: 16-2
MODEL E/G/H/J/K
CAP,PIVOT
6122213A0019F
€ 5.00
17-1
6122313A00019
ref: 17-1
MODEL E/G
CAP,SHAFT
€ 4.50
17-2
6122313A0019F
ref: 17-2
MODEL E/G/H/J/K
CAP,SHAFT (BLUE)
6122313A0019F
€ 4.50
18
6127313A10
ref: 18
BUFFER
€ 23.50
19
0910305008
ref: 19
BOLT
€ 0.00
20
0916905012
ref: 20
WASHER
0916905012
€ 3.00
21
0918005015
ref: 21
SPACER (5.5X8X4)
0918005015
€ 3.00
22
0831931058
ref: 22
NUT
€ 2.50
23
6134113A00
ref: 23
GUIDE,CHAIN
6134113A00
€ 20.00
24
0151706205
ref: 24
BOLT
€ 2.50
25
0831931065
ref: 25
NUT
0831931065
€ 2.50
26
6131013A01
ref: 26
CASE,CHAIN
€ 0.00
27
0151706105
ref: 27
BOLT
€ 2.50
28
0916906026
ref: 28
WASHER
0916906026
€ 2.00
29
0916906042
ref: 29
WASHER
€ 1.50
30
0151706205
ref: 30
BOLT
€ 2.50
31-1
6430013810
ref: 31-1
MODEL E
TORQUE LINK SET
€ 0.00
31-2
6430013820
ref: 31-2
MODEL G/H/J/K
TORQUE LINK SET
€ 0.00
32-1
6435240411
ref: 32-1
MODEL E
SPHERICAL BEARING,TORQUE
€ 69.50
32-2
6435214500
ref: 32-2
MODEL G/H/J/K
BEARING
6435214500
€ 39.50
33
6433940410
ref: 33
6433940410
34
0910108014
ref: 34
BOLT 8X29.5
0910108014
€ 1.50
35
0832211088
ref: 35
WASHER
0832211088
€ 2.00
36
0831441088
ref: 36
NUT 8MM
0831441088
€ 2.50
37
0411120208
ref: 37
PIN 20X20
0411120208
€ 1.50
