CRANK BALANCER

TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

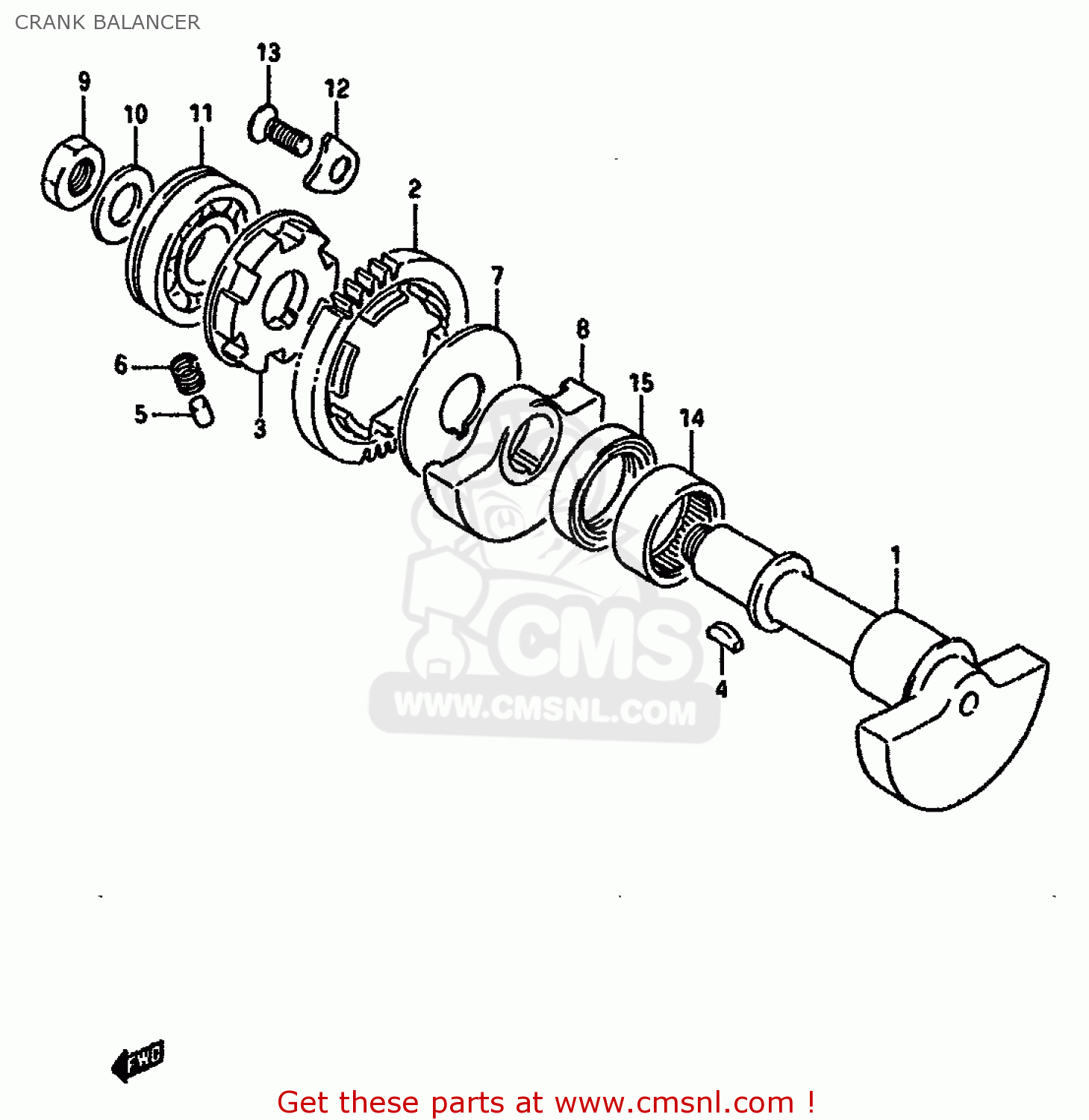

Crank balancer diagram TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

CRANK BALANCER TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

CRANK BALANCER TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

1265113A01
ref: 1-1
MODEL E

BALANCER,CRANKSHAFT

€ 117.50

1-2

1265123A00
ref: 1-2
MODEL G/H/J/K

BALANCER,CRANK

€ 0.00

2

1266613A01
ref: 2

GEAR,CRANK BALANCER DRIVE

€ 97.00

3

1266913A01
ref: 3

RACE,CRK BAL DRIVEN GEAR INNER

€ 26.50

4

0834131059
ref: 4

KEY

€ 3.00

5

0920204013
ref: 5

PIN

€ 3.00

6

0944009015
ref: 6

SPRING

€ 25.50

7-1

0916620007
ref: 7-1
MODEL E

WASHER (17X26X1)

€ 0.00

7-2

0916620009
ref: 7-2
MODEL G/H/J/K

WASHER

€ 2.50

8-1

1265413A00
ref: 8-1
MODEL E

WEIGHT,CRANK BALANCER

€ 32.50

8-2

1265423A00
ref: 8-2
MODEL G/H/J/K

WEIGHT,CRANK BALANCER RH

€ 0.00

9

0914014028
ref: 9

NUT

€ 3.50

10-1

0821114283
ref: 10-1
MODEL E

WASHER

€ 3.00

10-2

0916414010
ref: 10-2
MODEL G/H/J/K

WASHER

€ 3.50

11

0926220003
ref: 11

BEARING(20X52X15)

€ 27.00

12

1254213A00
ref: 12

RETAINER,CRANK BALANCER SHAFT

€ 3.00

13

0212206167
ref: 13

SCREW

€ 2.00

14

0926328025
ref: 14

BEARING(28X35X16)

€ 31.50

15

0928928007
ref: 15

SEAL,OIL(28X40X8)

€ 9.50
