REAR BRAKE

TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

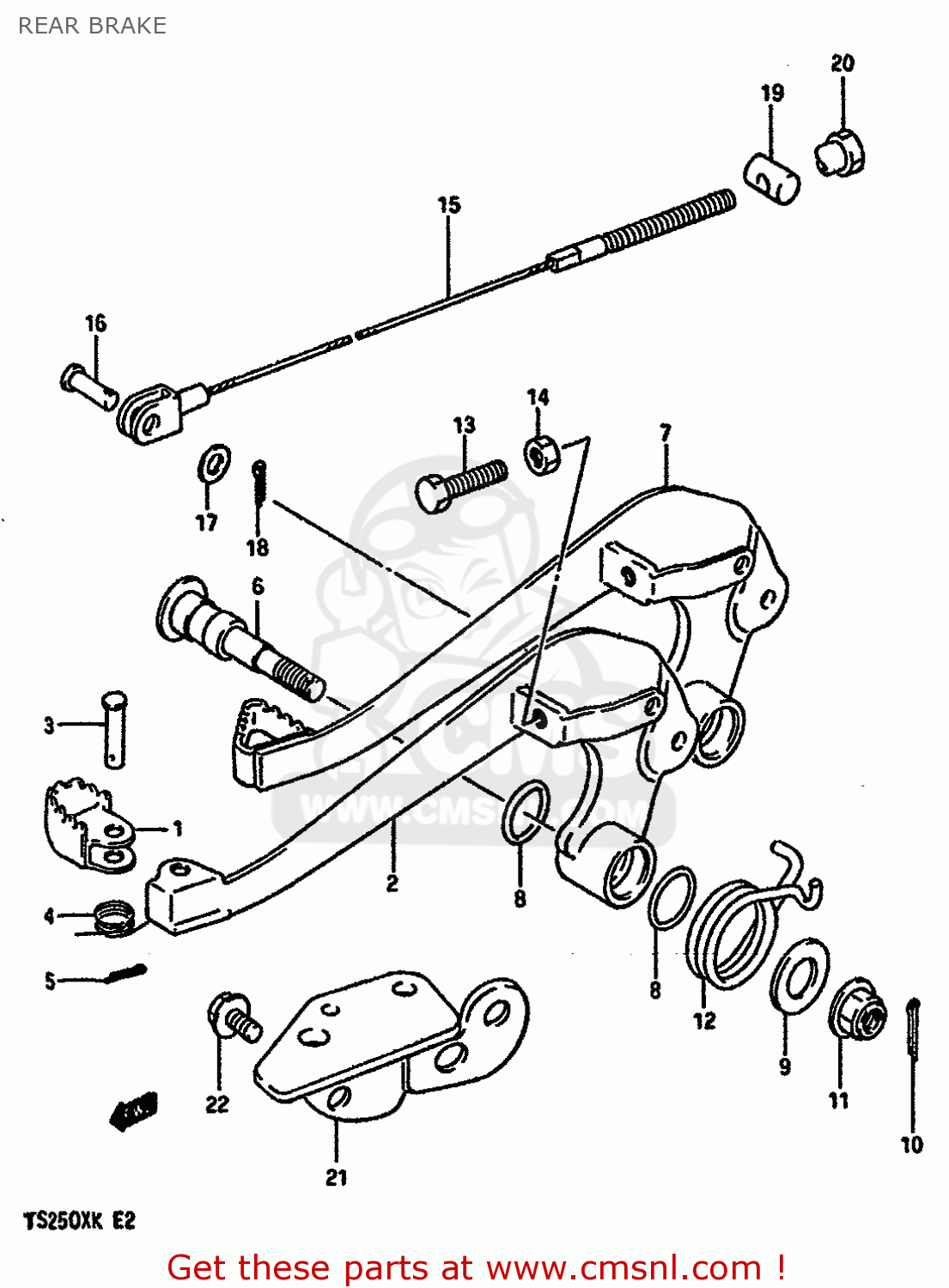

Rear brake diagram TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

REAR BRAKE TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

REAR BRAKE TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

4311014130
ref: 1

PEDAL,BRAKE

€ 6.00

2

4312013A00
ref: 2

ARM,BRAKE PEDAL

€ 41.50

3

0920006038
ref: 3

PIN

€ 2.00

4

0944411004
ref: 4

SPRING

€ 3.00

5

0411120158
ref: 5

PIN

€ 1.50

6

4314213A00
ref: 6

SHAFT,BRAKE PEDAL

€ 9.00

7

4311013A00
ref: 7
E22,MODEL H/J E15,E1

PEDAL,BRAKE

€ 0.00

8

0928015002
ref: 8

O RING(D:1.9,ID:14.5)

€ 3.50

9

0832221105
ref: 9

WASHER 10MM

€ 2.50

10

0411120208
ref: 10

PIN 20X20

€ 1.50

11

0831931085
ref: 11

NUT

€ 2.50

12

0944831032
ref: 12

SPRING

€ 6.50

13

0910006009
ref: 13

BOLT(6X23)

€ 1.50

14

0831011067
ref: 14

NUT 6MM

€ 2.50

15-1

5851013A00
ref: 15-1
MODEL E

CABLE,REAR BRAKE

€ 20.50

15-2

5851013A01
ref: 15-2
MODEL G/H/J/K

CABLE ASSEMBLY,REAR BRAKE

€ 20.50

16

0920005001
ref: 16

PIN(L:17.5)

€ 1.50

17

0832221067
ref: 17

WASHER

€ 2.00

18

0411120208
ref: 18

PIN 20X20

€ 1.50

19

0920911002
ref: 19

PIN(11X18)

€ 2.00

20

0915006009
ref: 20

NUT (6MM)

€ 3.50

21

4324013A00
ref: 21
MODEL E E4,E17,E18,E

PROTECTOR,BRAKE PEDAL

€ 0.00

22

0151706128
ref: 22
MODEL E E4,E17,E18,E

BOLT

€ 2.50
