MUFFLER

TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

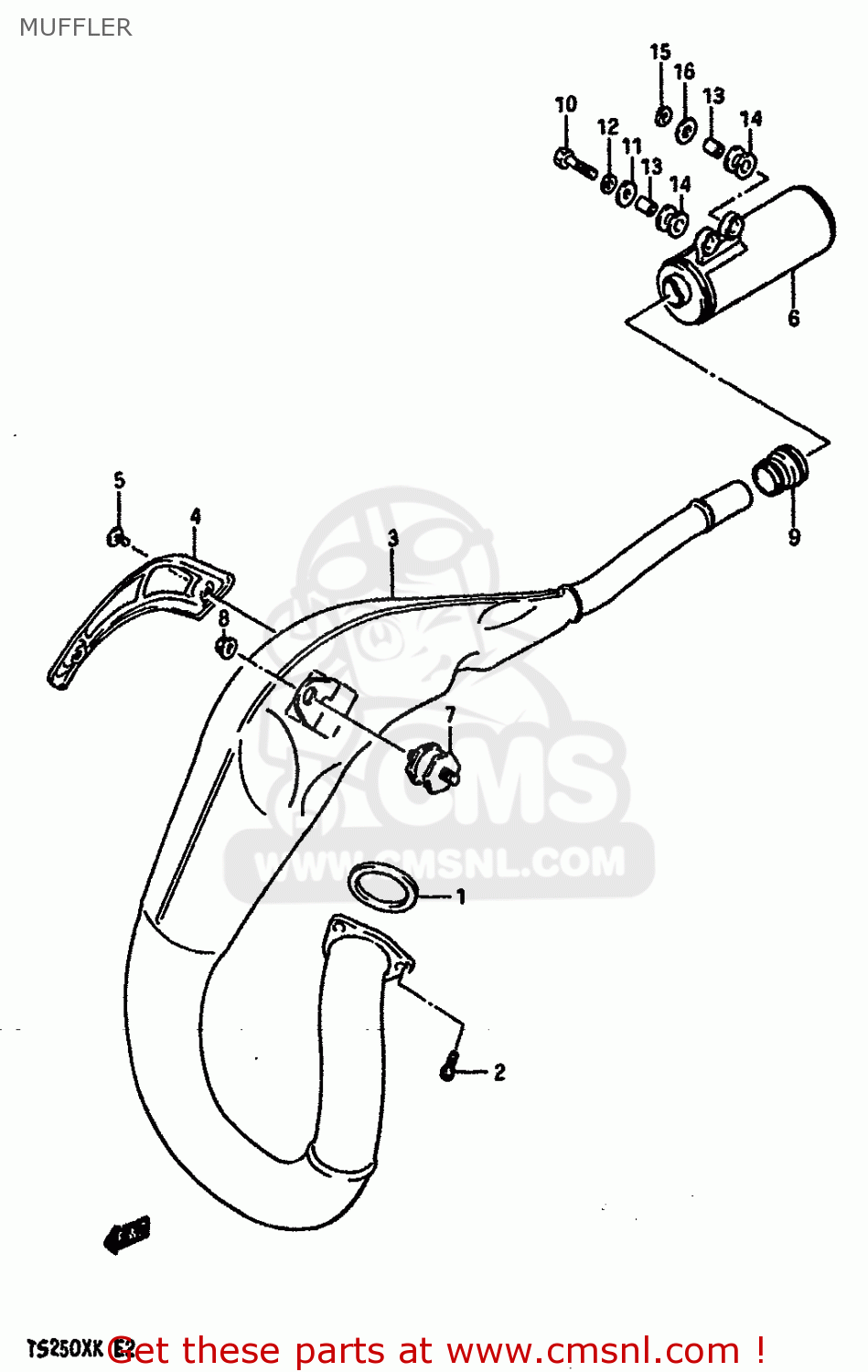

Muffler diagram TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

MUFFLER TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)
MUFFLER TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)
MUFFLER TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1418113A00
ref: 1-1
MODEL E
GASKET,EXHAUST PIPE (MCA)
1418113A00
€ 10.00
1-2
1418113A00H17
ref: 1-2
MODEL E E17
GASKET,EXHAUST PIPE
€ 10.00
1-3
1418139310
ref: 1-3
MODEL G/H/J/K
GASKET, EXHAUST PIPE (NAS)
1418139310
€ 8.50
1-4
1418139310H17
ref: 1-4
MODEL G/H/J/K E17
GASKET, EXHAUST PIPE (NA) (NAS)
€ 8.50
2
0712006205
ref: 2
PLUG ,6X20
0712006205
€ 3.50
3-1
1431013A13
ref: 3-1
MODEL E
BODY,MUFFLER.1ST
€ 332.50
3-2
1431013A24
ref: 3-2
MODEL G/H/J/K
BODY,MUFFLER,1ST
€ 230.00
3-3
1431013A40
ref: 3-3
MODEL H/J/K E24
BODY,MUFFLER,1ST
€ 0.00
4
1478113A01
ref: 4
COVER,MUFFLER
€ 11.50
5
0214206085
ref: 5
SCREW
0214206085
€ 1.50
6-1
1430313A01
ref: 6-1
MODEL E
BODY,MUFFLER,2ND
€ 178.50
6-2
1430313A21
ref: 6-2
MODEL G/H/J/K
BODY,MUFFLER,2ND
€ 159.00
6-3
1430313A30
ref: 6-3
E22
BODY,MUFFLER,2ND
€ 0.00
6-4
1430313A40
ref: 6-4
MODEL H/J/K E24
BODY,MUFFLER,2ND
€ 0.00
7
1477001A00
ref: 7
DAMPER,MUFFLER SUPPORT
1477001A00
€ 16.00
8
0831616085
ref: 8
NUT 8MM
0831616085
€ 3.00
9
1477135301
ref: 9
Muffler Connector
1477135301
€ 17.00
10-1
0110708355
ref: 10-1
MODEL E
BOLT
€ 3.50
10-2
0110708405
ref: 10-2
MODEL G/H/J/K
BOLT 8X40
0110708405
€ 3.00
11
0916008057
ref: 11
WASHER (8.5X20X1.6)
0916008057
€ 2.00
12
0832121084
ref: 12
WASHER,LOCK,8.
0832121084
€ 2.50
13
0918008102
ref: 13
SPACER (8.6X12X17.5)
0918008102
€ 3.00
14
0932012026
ref: 14
CUSHION
0932012026
€ 8.00
15
0832121084
ref: 15
WASHER,LOCK,8.
0832121084
€ 2.50
16
0916008057
ref: 16
WASHER (8.5X20X1.6)
0916008057
€ 2.00
