REAR WHEEL

TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

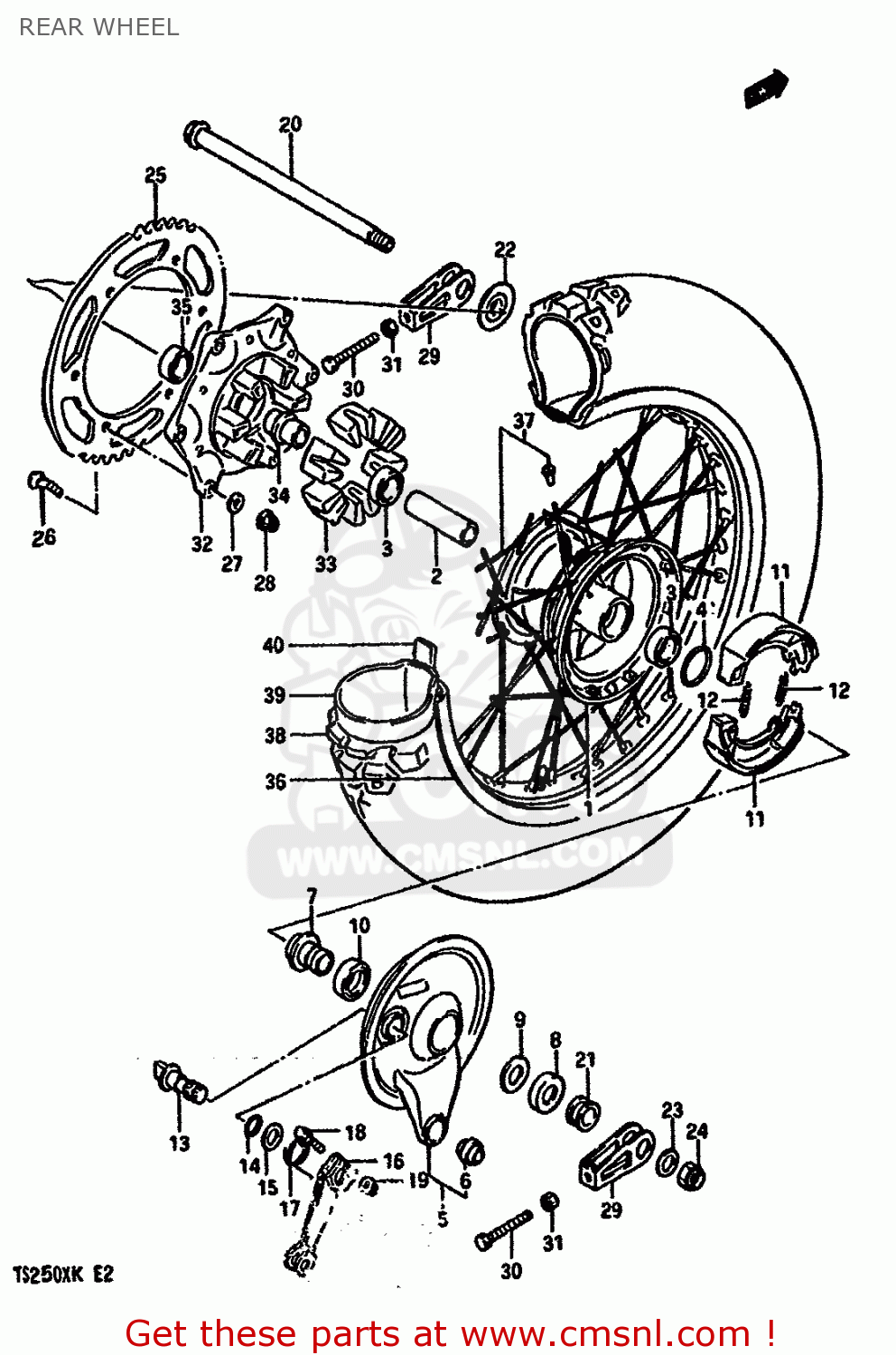

Rear wheel diagram TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

REAR WHEEL TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)
REAR WHEEL TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)
REAR WHEEL TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
6411013A00
ref: 1
HUB,REAR
€ 307.50
2
6473113A00
ref: 2
SPACER,BEARING
€ 13.00
3
0814362027
ref: 3
BEARING
0814362027
€ 12.50
4
0928043002A
ref: 4
O RING(D:2.6,ID:39.7)
0928043002A
€ 2.50
5-1
6420013810
ref: 5-1
MODEL E
PANEL SET,REAR
€ 160.00
5-2
6420013820
ref: 5-2
MODEL G/H/J/K
PANEL SET,REAR
€ 145.50
6-1
6435240401
ref: 6-1
MODEL E
SPHERICAL BRNG,TORQUE LINK
6435240401
€ 69.50
6-2
6435214500
ref: 6-2
MODEL G/H/J/K
BEARING
6435214500
€ 39.50
7
6421313A00
ref: 7
SPACER
€ 22.00
8
6484514100
ref: 8
CVR,RR BRAKE AHR PNL DUST SEAL
6484514100
€ 10.00
9
0821115281
ref: 9
WASHER,THRUST
€ 2.50
10
0928320031
ref: 10
SEAL,OIL(20X27X5)
0928320031
€ 5.00
11-1
6441001A00
ref: 11-1
SHOE, BRAKE
6441001A00
€ 32.00
11-2
6441001A20
ref: 11-2
MODEL J/K E15,E16,E1
SHOE,BRAKE
€ 32.00
12
0944307001
ref: 12
SPRING(L:34)
0944307001
€ 2.50
13
6444113A00
ref: 13
CAM,BRAKE
€ 10.50
14
09280140A3
ref: 14
O-RING
€ 3.50
15
09160140A1
ref: 15
WASHER
€ 2.50
16
6445113A00
ref: 16
LEVER,CAM
€ 12.00
17
0944830007
ref: 17
SPRING
0944830007
€ 19.00
18
0151706358
ref: 18
BOLT 6X35
0151706358
€ 2.50
19
0915906017
ref: 19
NUT
0915906017
€ 2.50
20
6471113A00
ref: 20
AXLE,REAR
€ 38.00
21
6474113A01
ref: 21
SPACER,RH
€ 7.00
22
6475013A01
ref: 22
SPACER,LH
€ 7.00
23
09160150A2
ref: 23
WASHER
€ 2.00
24
0831921148
ref: 24
NUT 14MM
0831921148
€ 3.00
25-1
6451113A00
ref: 25-1
MODEL E MODEL J/K E2
SPROCKET,REAR (NT:47)
€ 57.50
25-2
6451113A20
ref: 25-2
MODEL G/H/J/K
SPROCKET,REAR (NT:48)
€ 59.50
26
0912008010
ref: 26
BOLT(8X30.5)
0912008010
€ 2.50
27
0832211088
ref: 27
WASHER
0832211088
€ 2.00
28
0831931087
ref: 28
NUT
0831931087
€ 2.50
29
6141013A00
ref: 29
ADJUSTER,CHAIN
€ 11.50
30
0910008237
ref: 30
BOLT(8X47)
0910008237
€ 3.00
31
0831012088
ref: 31
NUT
0831012088
€ 2.00
32
6461113A00
ref: 32
DRUM
€ 108.50
33
6465113A00
ref: 33
ABSORBER,RR HUB SHOCK
6465113A00
€ 6.00
34
6473313A00
ref: 34
RETAINER
€ 12.00
35
0812362047
ref: 35
BEARING
0812362047
€ 17.00
36-1
6531113A00
ref: 36-1
MODEL E
RIM,REAR WHEEL (2.15X17AL)
€ 279.50
36-2
6531113A11
ref: 36-2
MODEL G
RIM,REAR WHEEL (2.15X17AL)
€ 279.50
36-3
6531113A20
ref: 36-3
MODEL H/J/K
RIM,REAR WHEEL (2.15X17AL)
€ 279.50
37
6532013A00
ref: 37
SPOKE SET
6532013A00
€ 43.50
38-1
6510013A20
ref: 38-1
BS
TIRE,REAR (130/80-17)
€ 245.00
38-2
6510013A40
ref: 38-2
DUNLOP
TIRE,REAR (130/80-17)
€ 245.00
39
6520013A40
ref: 39
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
40
5526120330
ref: 40
PROTECTOR,WHEEL,INNER
€ 3.50
