WATER PUMP

TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

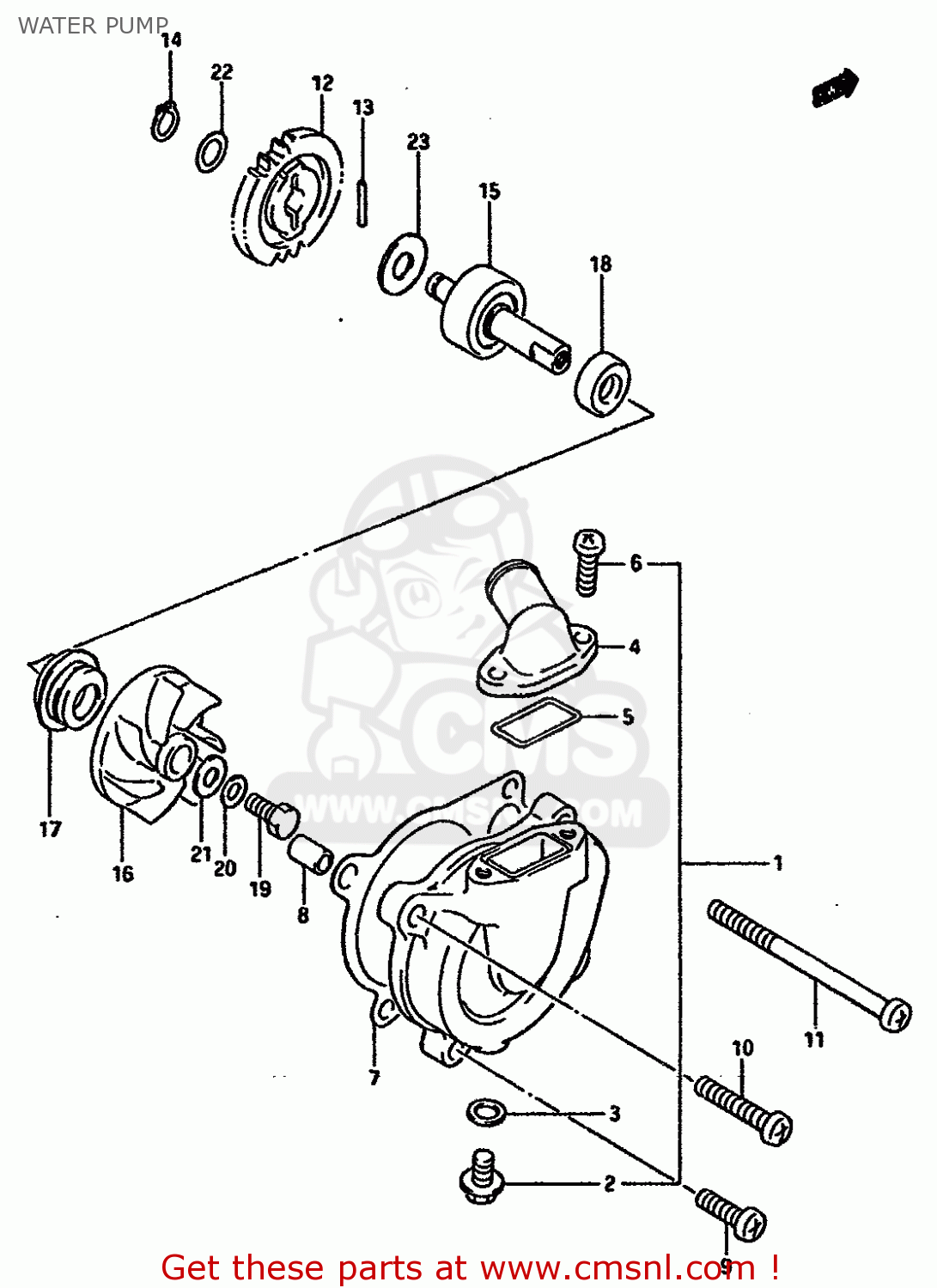

Water pump diagram TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)

WATER PUMP TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)
WATER PUMP TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)
WATER PUMP TS250X 1988 (J) (E02 E15 E16 E17 E21 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
1741014300
ref: 1-1
MODEL E
CASE,WATER PUMP
€ 73.50
1-2
1741014310
ref: 1-2
MODEL G/H/J/K
WATER PUMP CASE
1741014310
€ 73.50
2
1741514300
ref: 2
BOLT,DRAIN
1741514300
€ 2.00
3
0916808008
ref: 3
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
4-1
1741214300
ref: 4-1
MODEL E
CONNECTOR
1741214300
€ 23.50
4-2
1741214310
ref: 4-2
MODEL G/H/J/K
CONNECTOR
1741214310
€ 23.50
5
1741414300
ref: 5
O RING,WATER PUMP CONNECTOR
1741414300
€ 3.00
6
0211206164
ref: 6
SCREW
€ 2.00
7-1
1743114302
ref: 7-1
TO 17431-14303
GASKET,WATER PUMP CASE (MCA)
1743114302
€ 7.00
7-2
1743114303
ref: 7-2
E17
GASKET,WATER PUMP CASE (NAS)
1743114303
€ 7.00
8
0421109129
ref: 8
PIN
0421109129
€ 2.00
9
0211206205
ref: 9
SCREW
€ 2.00
10
0211206305
ref: 10
SCREW
0211206305
€ 2.50
11
0211206755
ref: 11
SCREW (6*75)
€ 1.50
12
1746113A00
ref: 12
GEAR,WATER PUMP DRIVEN
1746113A00
€ 29.50
13
0926102001
ref: 13
PIN(2.5X19.8)
0926102001
€ 1.50
14
0833131086
ref: 14
CIRCLIP
0833131086
€ 2.00
15
1751013A00
ref: 15
SHAFT,WATER PUMP
€ 122.00
16
1749114300
ref: 16
IMPELLER,WATER PUMP
1749114300
€ 18.50
17
1747014100
ref: 17
SEAL,WATER PUMP SHAFT
1747014100
€ 21.50
18
0928310005
ref: 18
SEAL,OIL(10X20X5)
0928310005
€ 4.50
19
0910006099
ref: 19
BOLT(6X13)
0910006099
€ 2.00
20
0916406006
ref: 20
WASHER
0916406006
€ 2.50
21
0916806025
ref: 21
FROM 09168-06016
GASKET(6X15X2.2) (NAS)
0916806025
€ 3.00
22
0916408018
ref: 22
WASHER
0916408018
€ 3.50
23
0821108201
ref: 23
WASHER
0821108201
€ 2.00
