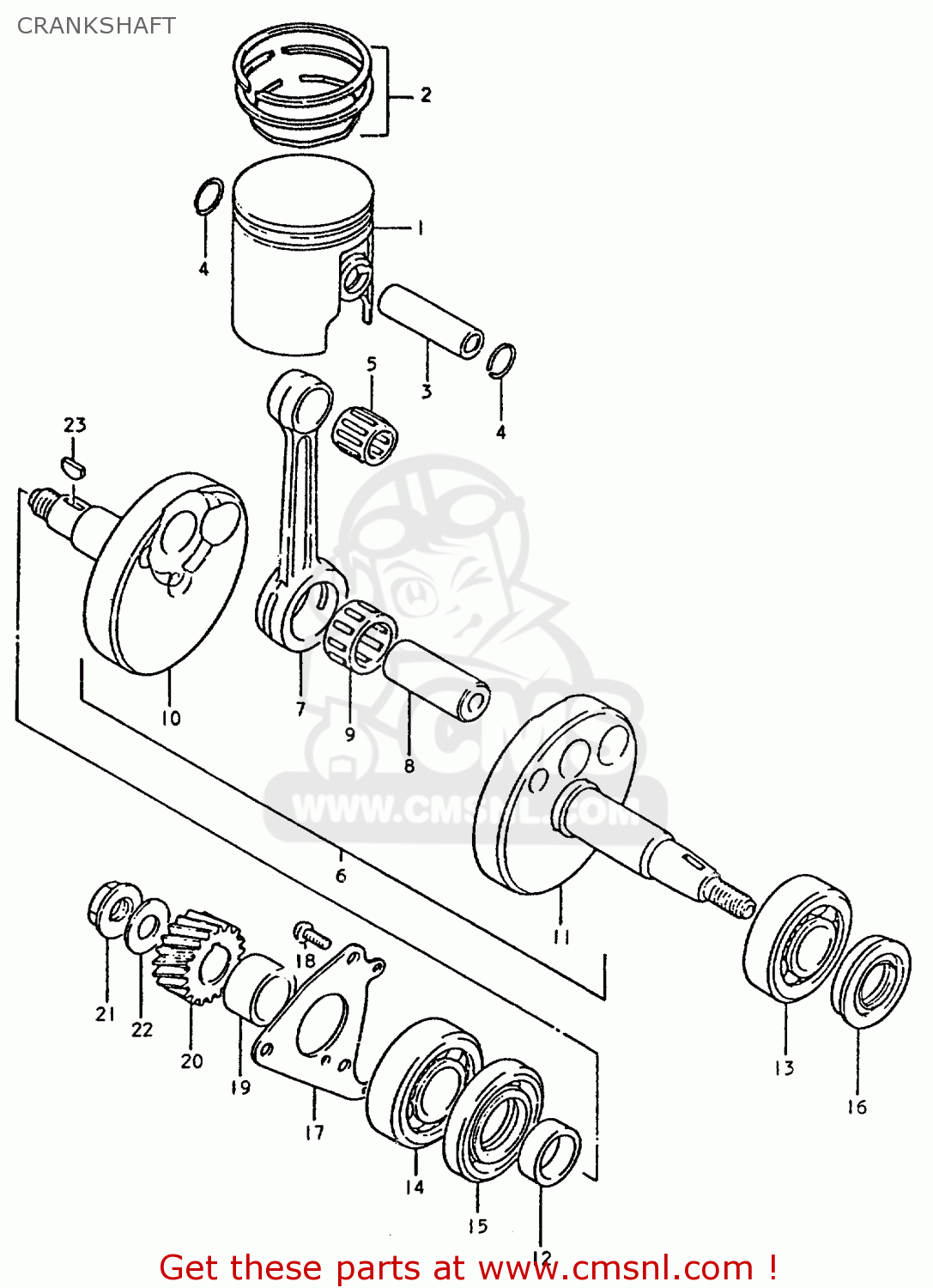

CRANKSHAFT

ref

part #

description

quantity

1-1

1211046500
ref: 1-1

PISTON

€ 32.50

1-2

1211046104
ref: 1-2
E25

PISTON

€ 44.00

1-3

1211046500050
ref: 1-3

PISTON (OS:0.5)

€ 54.50

1-4

1211046104050
ref: 1-4
E25

PISTON (OS:0.5)

€ 71.50

1-5

1211046500100
ref: 1-5

PISTON (OS:1.0)

€ 58.00

1-6

1211046104100
ref: 1-6
E25

PISTON

€ 79.00

2-1

1214046110
ref: 2-1

RING SET,PISTON

€ 55.50

2-2

1214046110050
ref: 2-2

RING SET,PISTON(OS:0.50)

€ 24.50

2-3

1214046110100
ref: 2-3

RING SET,PISTON(OS:1.0)

€ 53.00

3

1215102000
ref: 3

PIN,PISTON

€ 9.00

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5

0926312003
ref: 5

BEARING

€ 9.00

6

1220046102
ref: 6

CRANKSHAFT ASSEMBLY

€ 262.50

7

1216135000
ref: 7

CONNECTING ROD

€ 52.50

8

1221146010
ref: 8

PIN,CRANK

€ 23.00

9

0926316014
ref: 9

BEARING

€ 19.00

10

1222146100
ref: 10

CRANKSHAFT,RIGHT

€ 87.00

11

1226146100
ref: 11

CRANKSHAFT,LEFT

€ 65.00

12

0918020021
ref: 12

SPACER(20X26X9)

€ 6.50

13

0926220019
ref: 13

BEARING

€ 28.00

14

0926220045
ref: 14

BEARING

€ 21.00

15

0928326013
ref: 15

OIL SEAL

€ 6.50

16

0928320034
ref: 16

SEAL,OIL(19.6X37X8)

€ 6.00

17

1254146001
ref: 17

RETAINER,CRANKSHAFT BEARING,R

€ 5.00

18

0211206128
ref: 18

SCREW 6X12

€ 2.00

19

0918020059
ref: 19

SPACER(20X26X14)

€ 7.50

20

2111146000
ref: 20

GEAR,PRIMARY DRIVE NO.19

€ 31.00

21

0915912005
ref: 21

NUT

€ 4.00

22

0916412016
ref: 22

WASHER

€ 5.00

23

0834131039
ref: 23

KEY

€ 2.00
