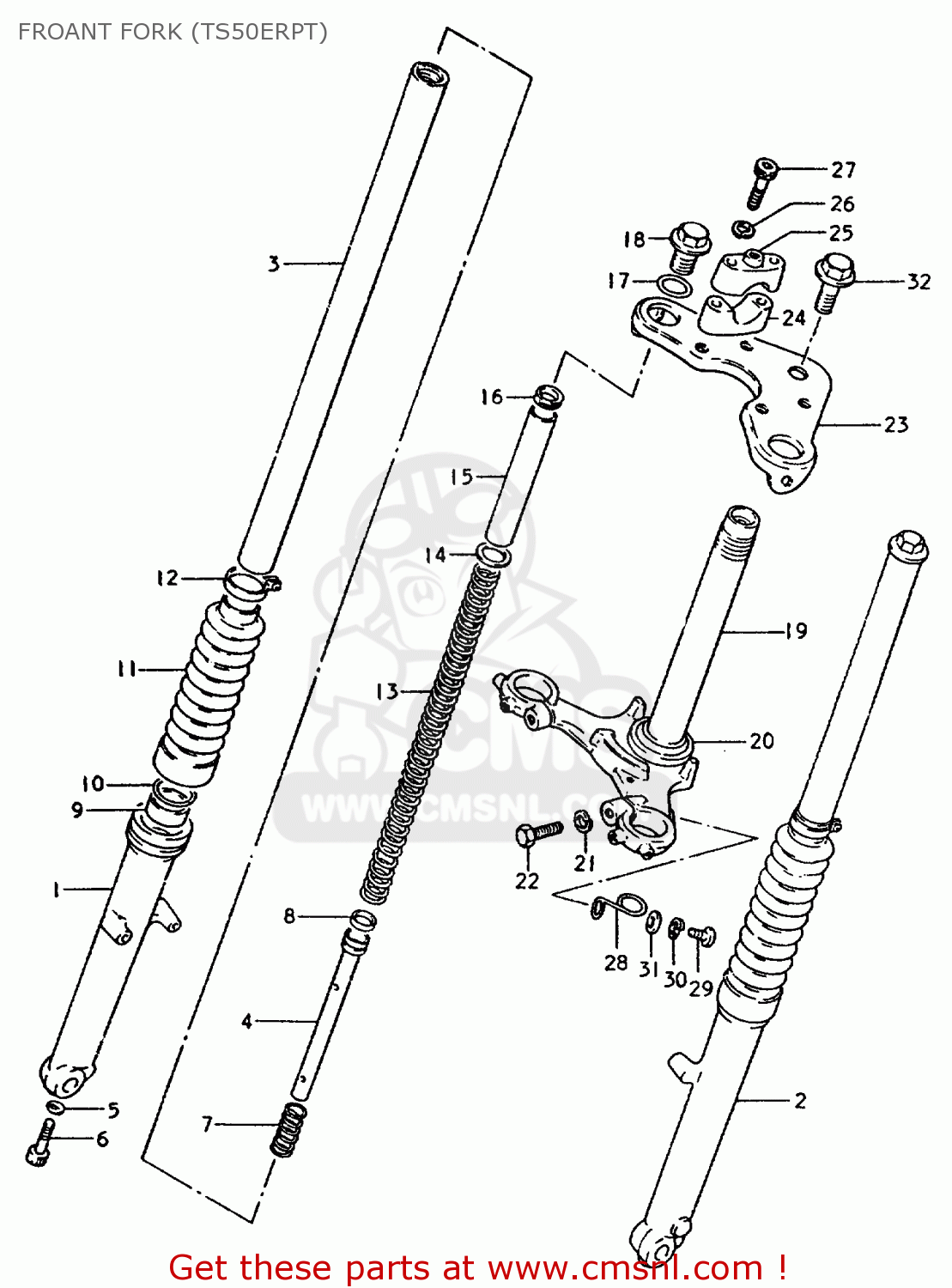

FROANT FORK (TS50ERPT)

ref

part #

description

quantity

0

5110026530291
ref: 0
BLACK

FRONT FORK ASSY

€ 0.00

1

5113146741
ref: 1

TUBE, OUTER RH

€ 59.50

2

5114146741
ref: 2

TUBE, OUTER LH

€ 89.50

3

5111046740
ref: 3

TUBE, INNER

€ 40.50

4

5114646700
ref: 4

PIPE, SEAT

€ 0.00

5

5114831030
ref: 5

GASKET (NAS)

€ 4.00

6

5114748130
ref: 6

BOLT(8X27)

€ 3.50

7

5117746100
ref: 7

SPRING,REBOUND

€ 3.50

8

5119646100
ref: 8

RING,PISTON

€ 6.00

9

5115346040
ref: 9

OIL SEAL,FRONT FORK

€ 14.50

10

5115648130
ref: 10

RING,OIL SEAL STOPPER

€ 3.50

11

5157126520
ref: 11

BOOT

€ 32.50

12

0940230306
ref: 12

BAND

€ 6.00

13

5117126520
ref: 13

SPRING

€ 0.00

14

5119246100
ref: 14

JOINT,SPRING

€ 2.50

15

5117646100
ref: 15

SPACER,SPRING

€ 7.00

16

5135348130
ref: 16

NUT,FORK SPRING,UPPER

€ 4.50

17

5118146190
ref: 17

O-RING,FORK INNER TUBE

€ 5.50

18

5135146190
ref: 18

CAP

€ 15.00

19

5141026530
ref: 19

STEM, STEERING

€ 135.50

20

5162133001
ref: 20

RACE,STEERING OUTER LWR

€ 10.00

21

0832121108
ref: 21

LOCK WASHER

€ 2.00

22

0110710308
ref: 22

BOLT 10X30

€ 3.00

23

5131026520291
ref: 23
BLACK

STEM HEAD, STEERING

€ 38.00

24

5621127200291
ref: 24
BLACK

HOLDER,HANDLE UPR

€ 13.50

25

5621148500291
ref: 25
BLACK

HOLDER,HANDLEBAR

€ 20.50

26

0832121088
ref: 26

LOCK WASHER

€ 2.00

27

0910608015
ref: 27

BOLT

€ 4.50

28

5145246100
ref: 28

CLIP

€ 3.00

29

0211206128
ref: 29

SCREW 6X12

€ 2.00

30

0832121068
ref: 30

LOCK WASHER

€ 2.50

31

0832221068
ref: 31

WASHER

€ 2.00

32

5135246101
ref: 32

BOLT

€ 5.50
