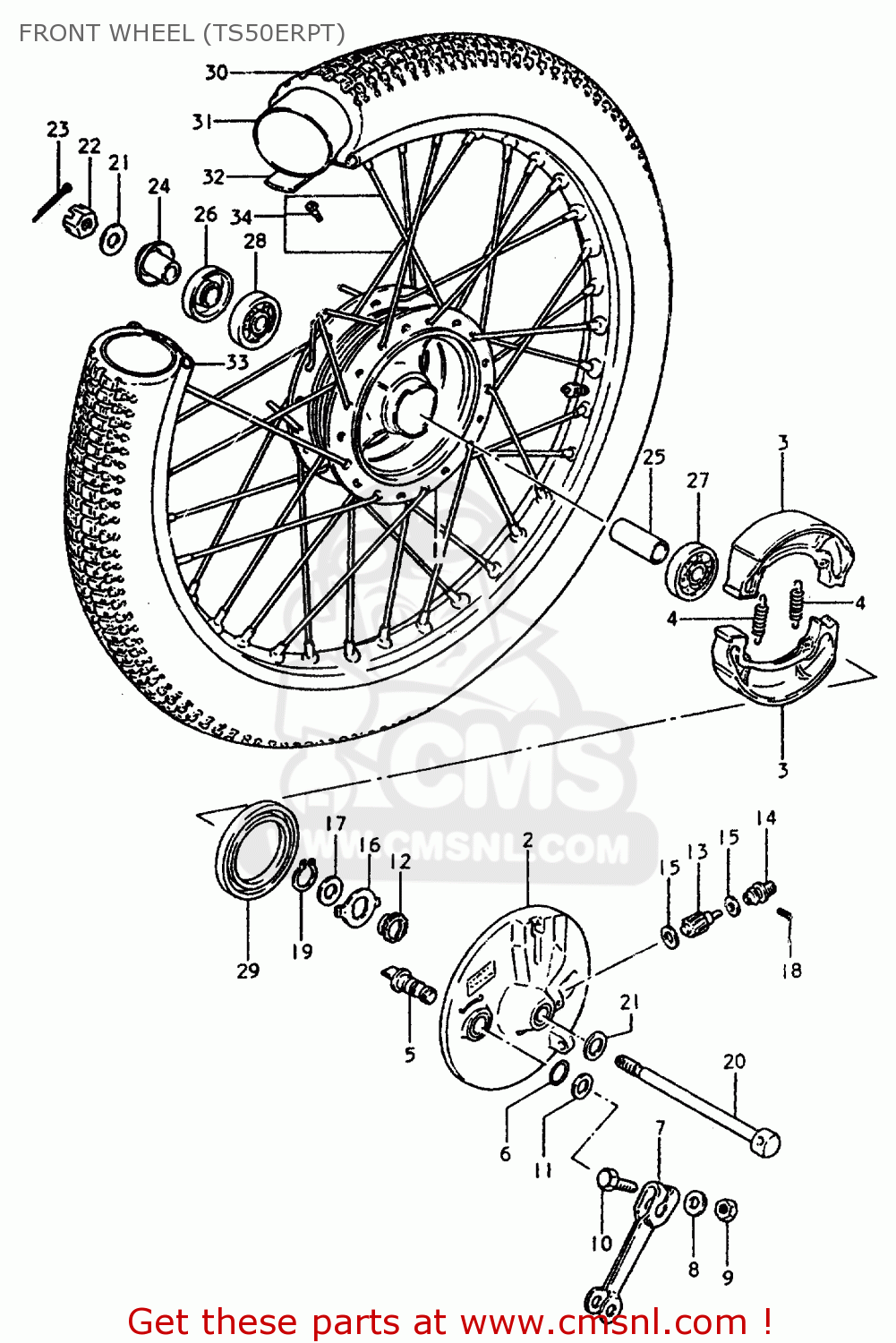

FRONT WHEEL (TS50ERPT)

ref

part #

description

quantity

1

5411046021
ref: 1

HUB,FRONT

€ 91.00

2

5421046122
ref: 2

PANEL,FRONT HUB

€ 75.00

3

5441043020
ref: 3

SHOE,BRAKE (MCA)

€ 19.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129302
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

0928014003
ref: 6

O-RING (D:2.4 ID:13.8)

€ 3.50

7

5445146110
ref: 7

LEVER,FR BRAKE CAM

€ 7.50

8

0832221068
ref: 8

WASHER

€ 2.00

9

0831011068
ref: 9

NUT

€ 2.50

10

0910006078
ref: 10

BOLT(6X33)

€ 2.50

11

0916014001
ref: 11

WASHER (14.5X22X1.6)

€ 2.50

12

5461126500
ref: 12

GEAR, SPEEDOMETER

€ 13.00

13

5462128000
ref: 13

PINION,SPEEDOMETER

€ 13.00

14

5463201001
ref: 14

BUSH,METER GEAR OUTER

€ 9.00

15

0916005001
ref: 15

WASHER (5.1X9X0.4)

€ 2.00

16

5466103000
ref: 16

DRIVER,SPEEDOMETER GEAR

€ 3.00

17

0916016005
ref: 17

WASHER(16X22X1)

€ 1.50

18

0913403101
ref: 18

SCREW

€ 1.50

19

0833131159
ref: 19

CIRCLIP,15MM

€ 2.00

20

5471146100
ref: 20

AXLE,FRONT

€ 16.00

21

0916010039
ref: 21

WASHER(10.5X22X2.3)

€ 2.50

22

0831431108
ref: 22

NUT

€ 1.50

23

0411120208
ref: 23

PIN 20X20

€ 1.50

24

5474026100
ref: 24

SPACER,FRONT AXLE,RIGHT

€ 11.00

25

0918010005
ref: 25

SPACER (10.2X16X51)

€ 5.50

26

0928415001
ref: 26

SEAL,OIL(15X31X5)

€ 4.00

27

0814363007
ref: 27

BEARING

€ 12.50

28

0811362000
ref: 28

BEARING

€ 7.50

29

0928543001
ref: 29

OIL SEAL (43X58X7)

€ 10.00

30

5510025600
ref: 30

TIRE 2.75-19 070-483MM

€ 134.00

31

5520029010
ref: 31

TUBE 2.75-19 070-483MM

€ 0.00

32

5526129010
ref: 32

PROTECTOR,WHEEL,INNER

€ 2.50

33

5531117022
ref: 33

RIM,FRONT WHEEL (1.40X19)

€ 76.50

34

5532028020
ref: 34

SPOKE SET,FRONT

€ 35.50
