FRONT FORK (TS50ERPDT)

TS50ERP 1981 (T) FRANCE NETHERLANDS (E04 E25)

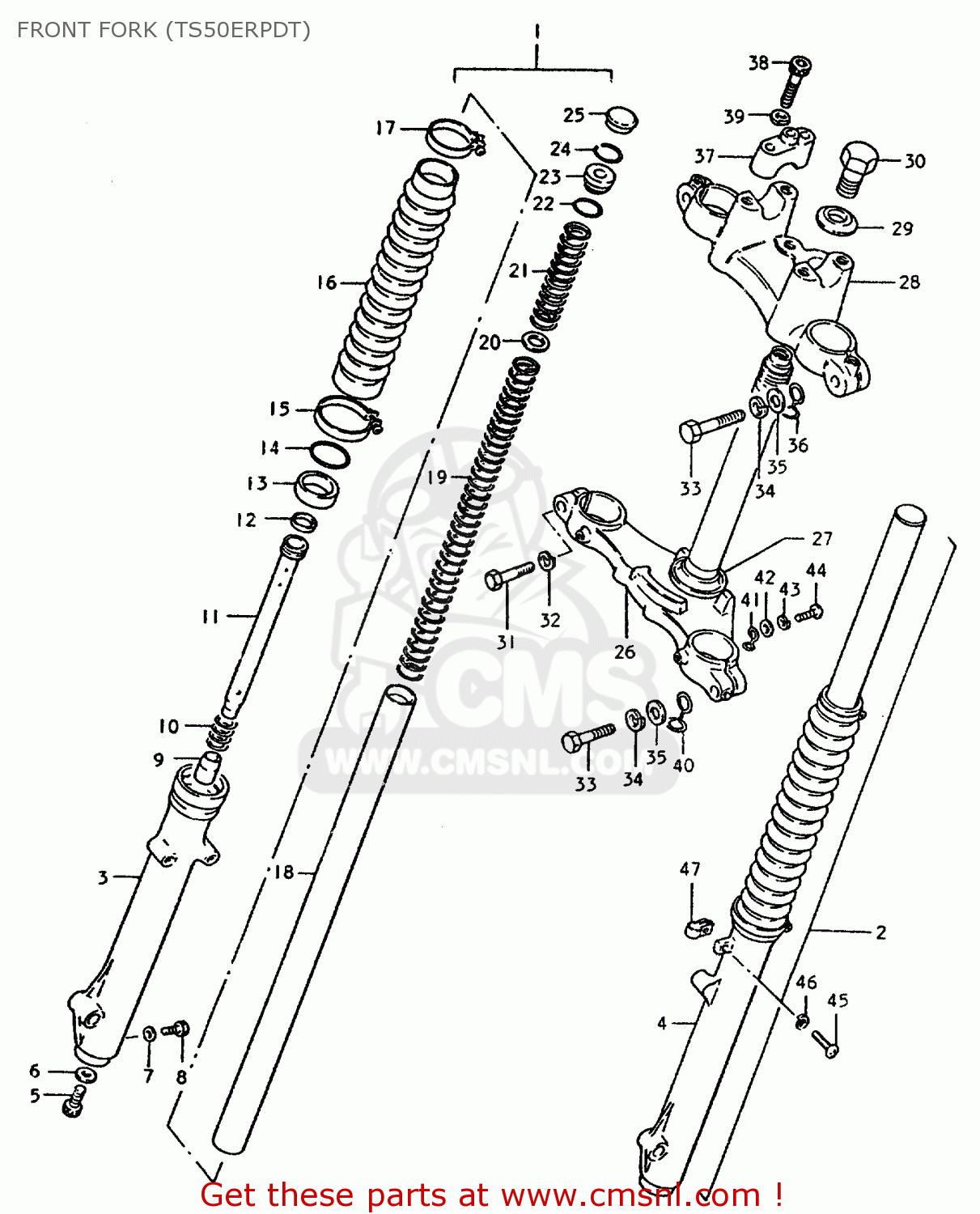

Front fork (ts50erpdt) diagram TS50ERP 1981 (T) FRANCE NETHERLANDS (E04 E25)

FRONT FORK (TS50ERPDT) TS50ERP 1981 (T) FRANCE NETHERLANDS (E04 E25)
FRONT FORK (TS50ERPDT) TS50ERP 1981 (T) FRANCE NETHERLANDS (E04 E25)
FRONT FORK (TS50ERPDT) TS50ERP 1981 (T) FRANCE NETHERLANDS (E04 E25)
prices are in EUR
ref
part #
description
quantity
0
5110026501291
ref: 0
BLACK
FORK ASSY, FRONT
€ 759.00
1
5110326501
ref: 1
DAMPER ASSY RH
5110326501
€ 386.00
2
5110426501
ref: 2
DAMPER ASSY LH
5110426501
€ 386.00
3
5113126500
ref: 3
OUTER TUBE RH
€ 135.50
4
5114126500
ref: 4
OUTER TUBE LH
5114126500
€ 107.50
5
5114748130
ref: 5
BOLT(8X27)
5114748130
€ 3.50
6
5114831030
ref: 6
GASKET (NAS)
5114831030
€ 4.00
7
5118331030
ref: 7
GASKET,DRAIN,PLUG (NAS)
5118331030
€ 4.00
8
0910006011
ref: 8
BOLT(6X8)
0910006011
€ 2.50
9
5119548000
ref: 9
PIECE,OIL LOCK
5119548000
€ 8.50
10
5117748000
ref: 10
SPRING,FORK REBOUND
5117748000
€ 6.00
11
5114648000
ref: 11
CYLINDER,FRONT FORK
5114648000
€ 50.00
12
5119648000
ref: 12
RING
€ 5.50
13
5115308030
ref: 13
OIL SEAL,FRONT FORK
5115308030
€ 11.00
14
5115636030
ref: 14
CIRCLIP,FORK OIL SEAL
€ 2.50
15
0940252306
ref: 15
CLAMP
0940252306
€ 6.00
16
5157148530
ref: 16
BOOT
5157148530
€ 34.00
17
5157548530
ref: 17
BAND,FRONT FORK COVER BOOT
5157548530
€ 3.00
18
5111026500
ref: 18
INNER TUBE
5111026500
€ 44.50
19
5118426500
ref: 19
SPRING B
€ 14.00
20
5117248000
ref: 20
SEAT,SPRING
€ 0.00
21
5117126501
ref: 21
SPRING A
€ 0.00
22
5118133131
ref: 22
O RING
5118133131
€ 5.00
23
5117548500
ref: 23
SEAT,SPRING
5117548500
€ 9.00
24
5116948500
ref: 24
RING,STOPPER
5116948500
€ 2.00
25
5118948530
ref: 25
CAP,FRONT FORK
5118948530
€ 10.00
26
5141026500
ref: 26
STEM, STEERING
€ 60.00
27
5162133001
ref: 27
RACE,STEERING OUTER LWR
5162133001
€ 10.00
28
5131126500291
ref: 28
BLACK
HEAD, STEERING STEM
5131126500291
€ 124.50
29
5135646030
ref: 29
WASHER(10.5X30X2.3)
5135646030
€ 5.00
30
5135246030
ref: 30
BOLT
5135246030
€ 6.00
31
0110710258
ref: 31
BOLT 10X25
0110710258
€ 3.00
32
0832121108
ref: 32
LOCK WASHER
0832121108
€ 2.00
33
5145127431
ref: 33
BOLT
5145127431
€ 4.50
34
0832121108
ref: 34
LOCK WASHER
0832121108
€ 2.00
35
0832211108
ref: 35
WASHER
€ 2.50
36
5145526500
ref: 36
CLIP
€ 0.00
37
5621148500291
ref: 37
BLACK
HOLDER,HANDLEBAR
5621148500291
€ 20.50
38
0910608004
ref: 38
BOLT 8X35
€ 4.00
39
0832121088
ref: 39
LOCK WASHER
0832121088
€ 2.00
40
5145548500
ref: 40
CLIP
€ 0.00
41
5145248500
ref: 41
CLIP
5145248500
€ 6.00
42
0832221068
ref: 42
WASHER
0832221068
€ 2.00
43
0832121068
ref: 43
LOCK WASHER
0832121068
€ 2.50
44
0211206128
ref: 44
SCREW 6X12
0211206128
€ 2.00
45
0211204168
ref: 45
SCREW
0211204168
€ 1.00
46
0832121048
ref: 46
LOCK WASHER
0832121048
€ 2.00
47
5145246040
ref: 47
CLIP,FR BRAKE CABLE
5145246040
€ 5.50
